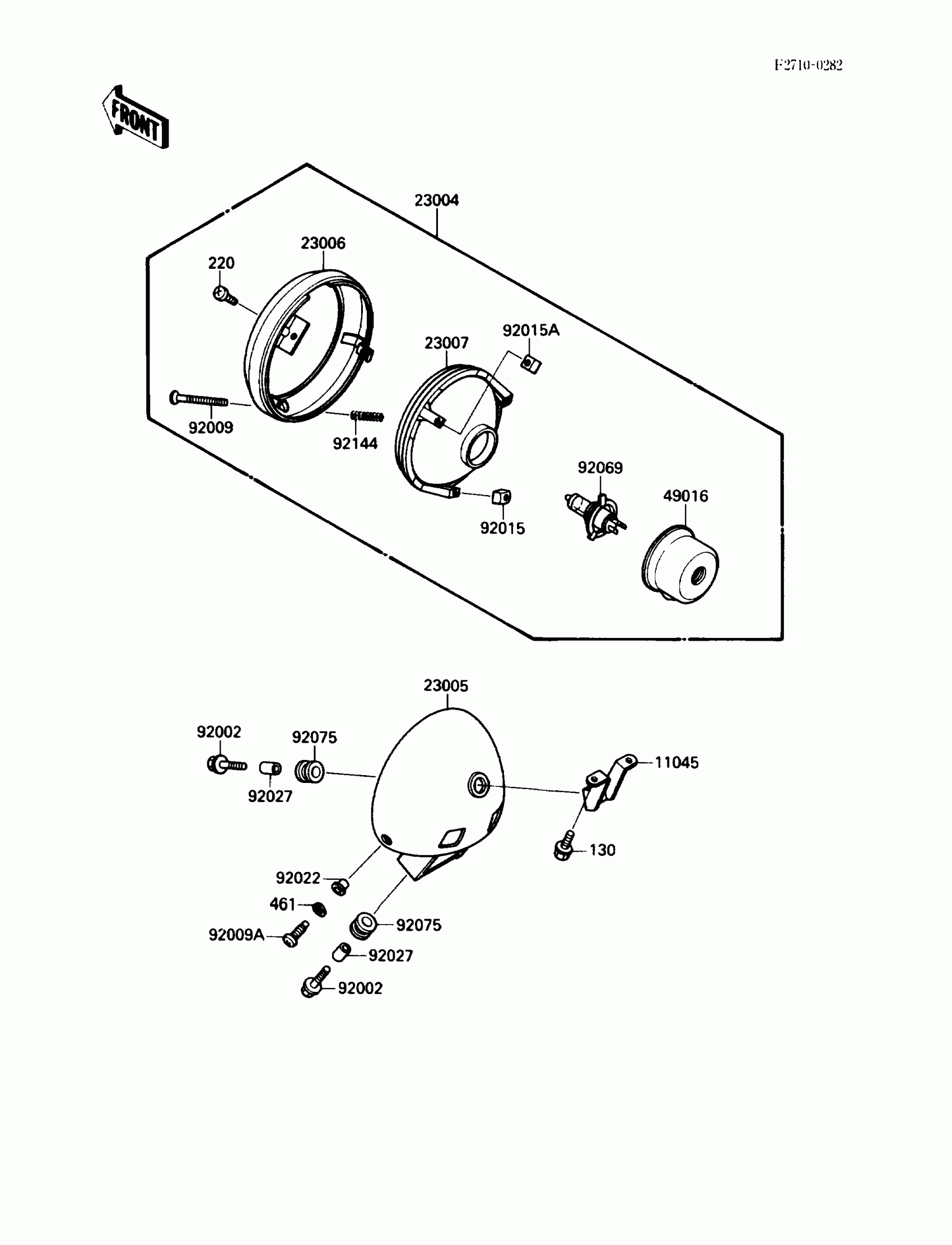

Kawasaki Vulcan 88 SE Headlight(s) Diagram

Description

Price

11045

BRACKET,HEAD LAMP

11045-1598

Unavailable

23004

LAMP-HEAD

23004-1221

$423.55

23005

BODY-COMP-HEAD LAMP

23005-1083

$151.73

23006

RIM-LAMP

23006-1059

$100.81

23007

LENS-COMP,HEAD LAMP

23007-1169

$156.62

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1129

$9.69

92002

BOLT,6X25

92002-1135

$3.85

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

$4.95

92009A

SCREW,5MM

92011-024

$1.82

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92015A

NUT,5MM

92015-1157

$4.32

92022

WASHER

23021-010

$3.29

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER

92075-1035

$5.07

92144

SPRING,FOCUS ADJUST

92144-1149

$7.98

130

BOLT-FLANGED

130D0612

Unavailable

220

SCREW-PAN-CROS,5X12

220D0512

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable
