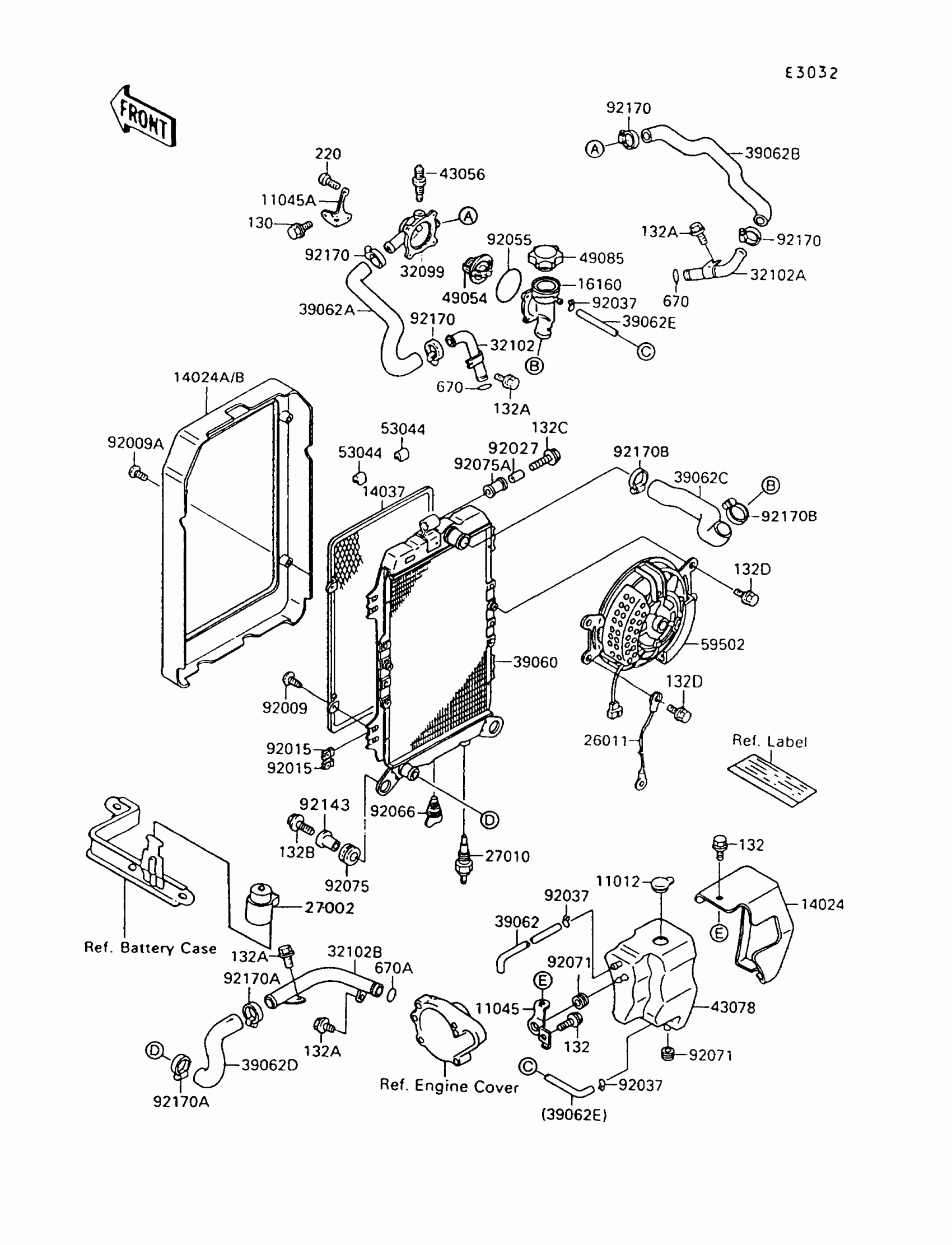

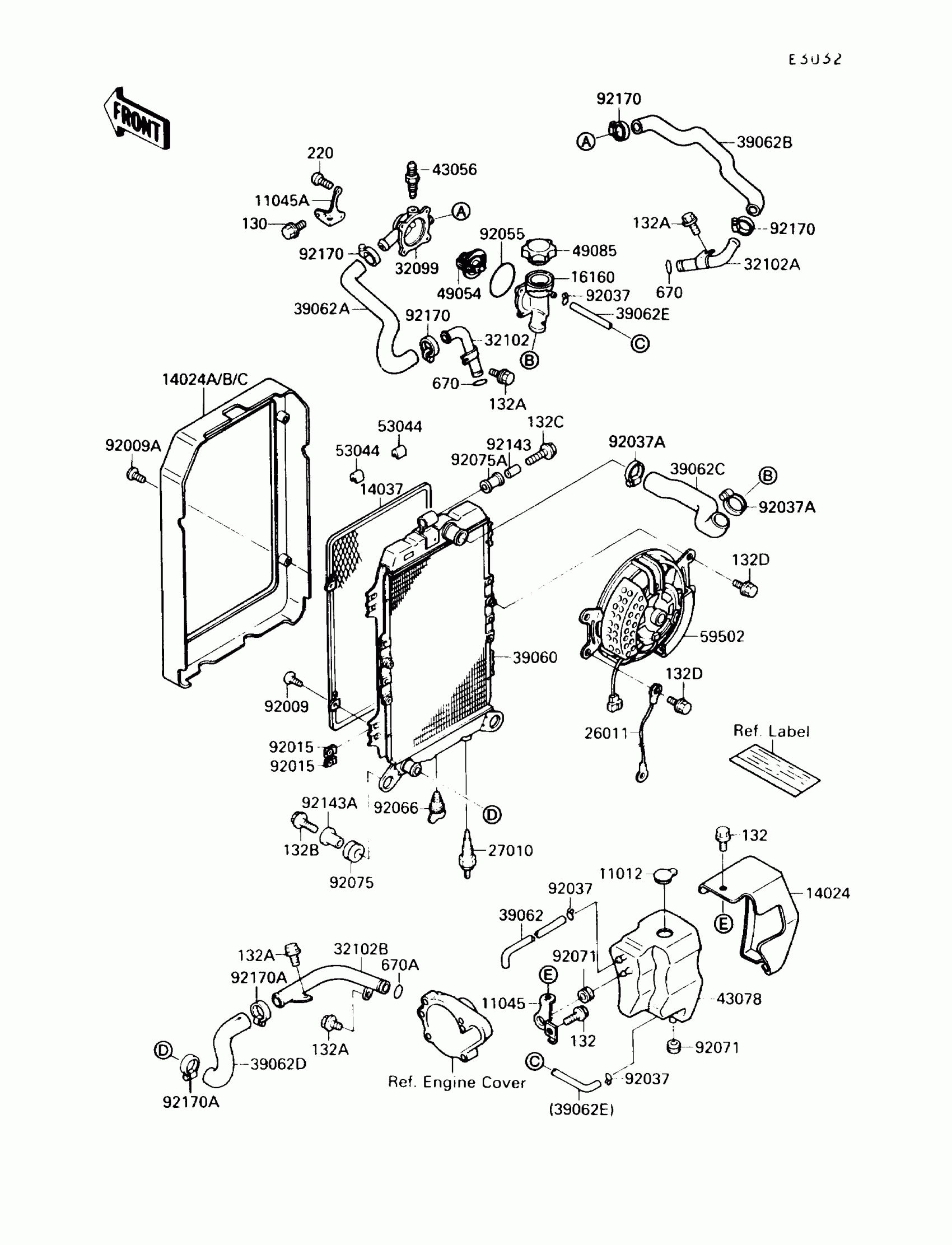

Find the part on the Radiator diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1585

1

$7.73

In stock

11045

BRACKET,RESERVOIR

11045-1436

1
Out of stock

11045A

BRACKET,THERMOSTAT

11045-1437

1
Out of stock

14024

COVER,RESERVOIR

14024-1406

1
Out of stock

14024B

COVER,RADIATOR,EBONY

14024-1429-H8

1
Out of stock

14037

SCREEN

14037-1090

1
Out of stock

16160

BODY,THERMOSTAT,UPP

16160-1116

1

$174.32

In stock

26011

WIRE-LEAD

26011-1412

1
Out of stock

27010

SWITCH,FAN

27010-1167

1

$131.65

In stock

32099

CASE,THERMOSTAT

32099-1093

1
Out of stock

32102

PIPE,HEAD,FR

32102-1413

1
Out of stock

32102A

PIPE,HEAD,RR

32102-1414

1
Out of stock

32102B

PIPE,PUMP COVER-HOSE

32102-1415

1
Out of stock

39060

RADIATOR

39060-1077

1

$655.63

In stock

39062

HOSE-COOLING

39062-1125

1

$23.82

In stock

39062A

HOSE-COOLING,HEAD,FR

39062-1227

1
Out of stock

39062B

1

$49.08

In stock

39062C

1

$40.92

In stock

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1252

1
Out of stock

39062E

HOSE-COOLING

39062-1255

1
Out of stock

43056

BREATHER

43056-003

1

$22.74

In stock

43078

RESERVOIR

43078-1085

1
Out of stock

49054

THERMOSTAT

49054-1051

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1054

1

$48.74

In stock

53044

TRIM

53044-1199

1
Out of stock

59502

FAN-ASSY

59502-1071

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1436

1
Out of stock

92009A

SCREW,TAPPING,6X30

92009-1481

1
Out of stock

92015

NUT,6MM

92015-1758

1

$5.45

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,COOLING HOSE

92037-1985

1

$6.51

In stock

92055

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92066

PLUG,DRAIN

92066-1293

1
Out of stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92075

DAMPER

92075-1665

1

$6.83

In stock

92075A

DAMPER

92075-1920

1
Out of stock

92143

COLLAR,6.8X10X30

92027-209

1
Out of stock

92143A

COLLAR

92143-1063

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1032

1

$24.03

In stock

92170A

CLAMP,COOLING HOSE

92170-1034

1

$19.44

In stock

130

BOLT

130B0612

1
Out of stock

132

1

$3.72

In stock

132A

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X40

132E0640

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X10

132G0610

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

670

O RING,14MM

670B2014

1

$1.08

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock
