1991 Kawasaki Vulcan 88 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

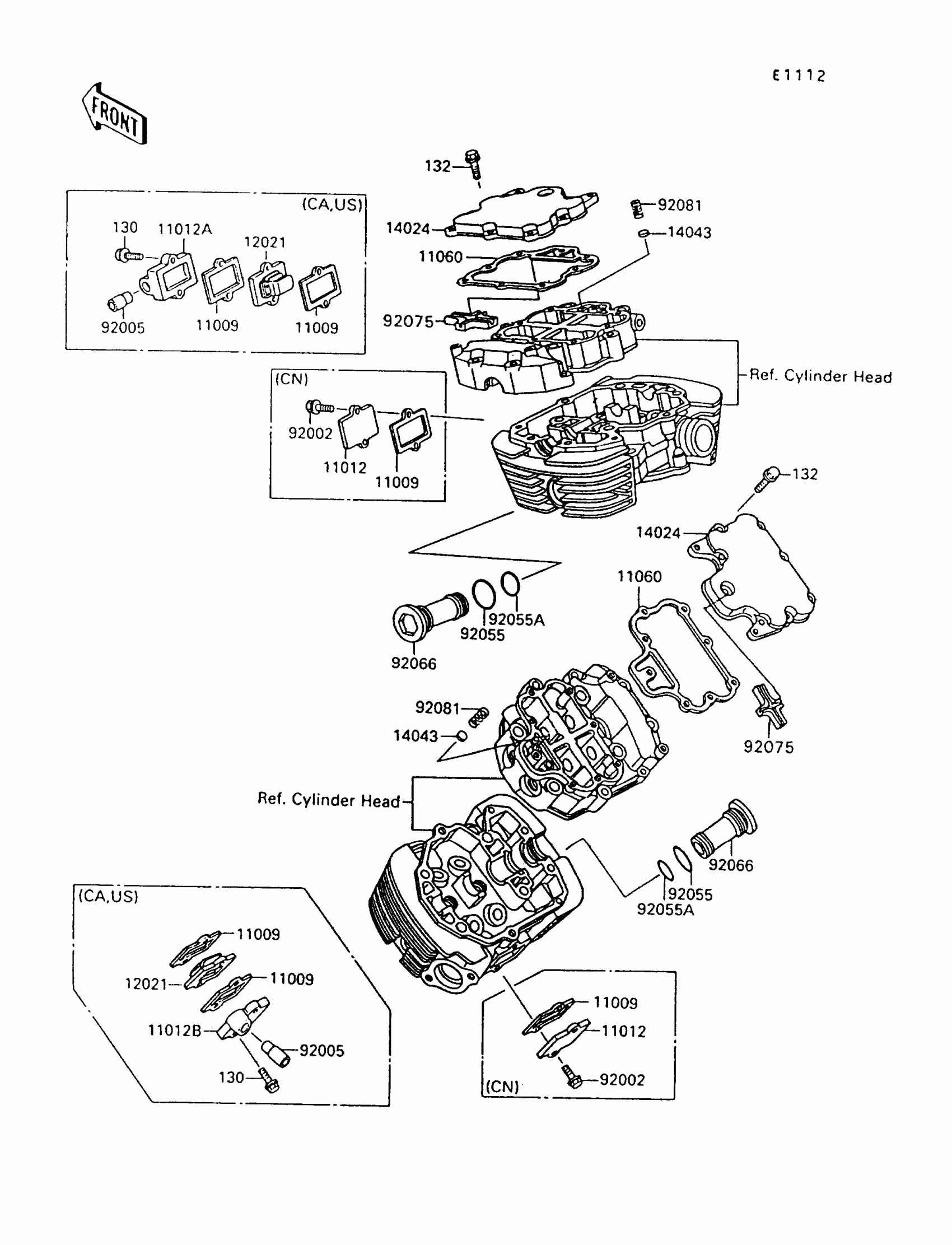

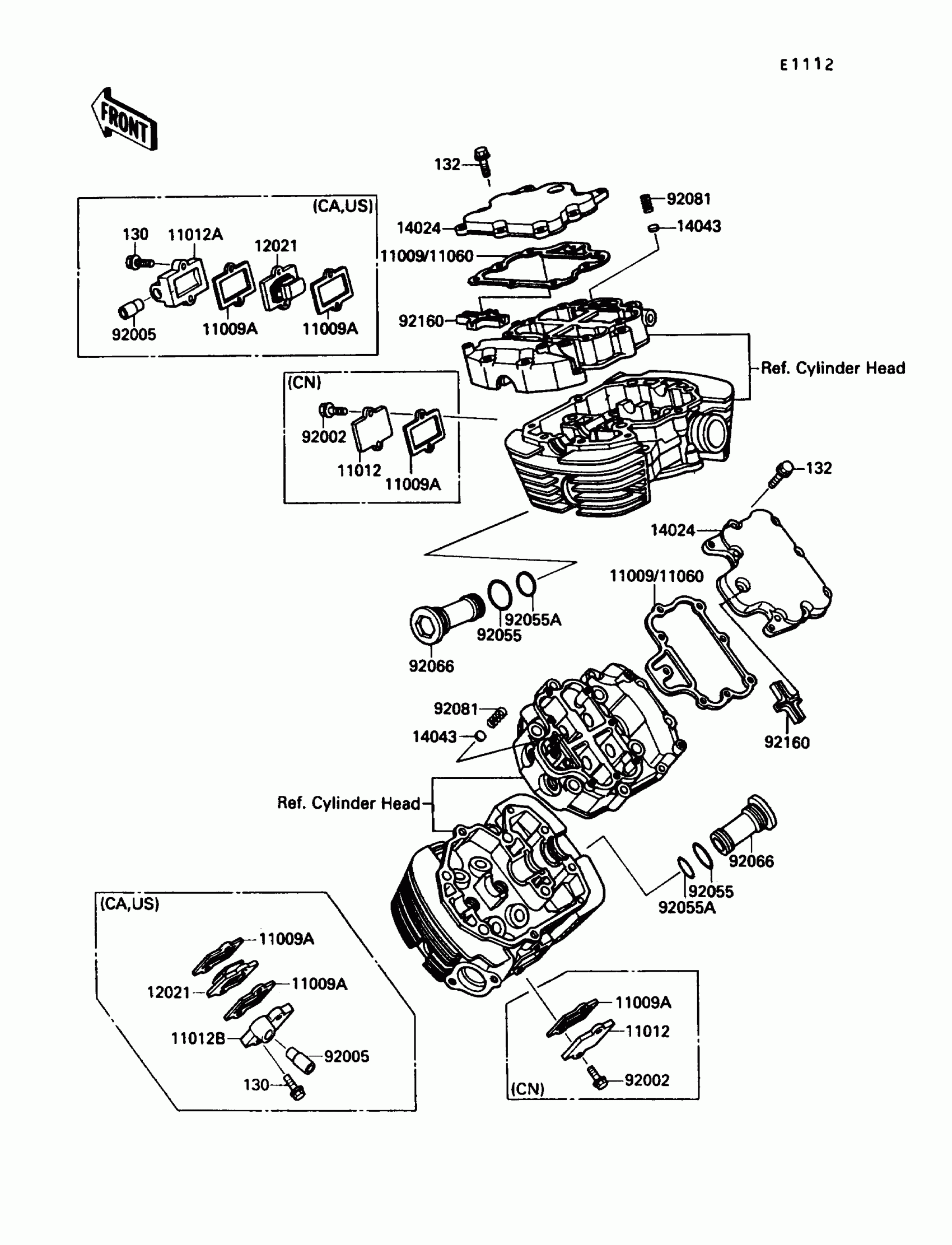

1991 Kawasaki Vulcan 88 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009A

GASKET,REED VALVE

11009-1879

1
Out of stock

11012A

CAP,REED VALVE,FR

11012-1494

1
Out of stock

11012B

CAP,REED VALVE,RR

11012-1574

1
Out of stock

11060

GASKET,ROCKER CASE COVER

11060-1116

1
Out of stock

12021

VALVE-ASSY-REED

12021-1073

1
Out of stock

14024

COVER,ROCKER CASE

14024-1405

1
Out of stock

14043

FILTER,OIL

14043-1056

1
Out of stock

92005

FITTING,REED VALVE

92005-1006

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O,27.7X1.9

92055-1272

1
Out of stock

92066

PLUG,SLEEVE

92066-1274

1
Out of stock

92081

SPRING,OIL FILTER

92081-1776

1
Out of stock

92160

DAMPER

92075-1998

1
Out of stock

130

BOLT-FLANGED,6X20

130N0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock
