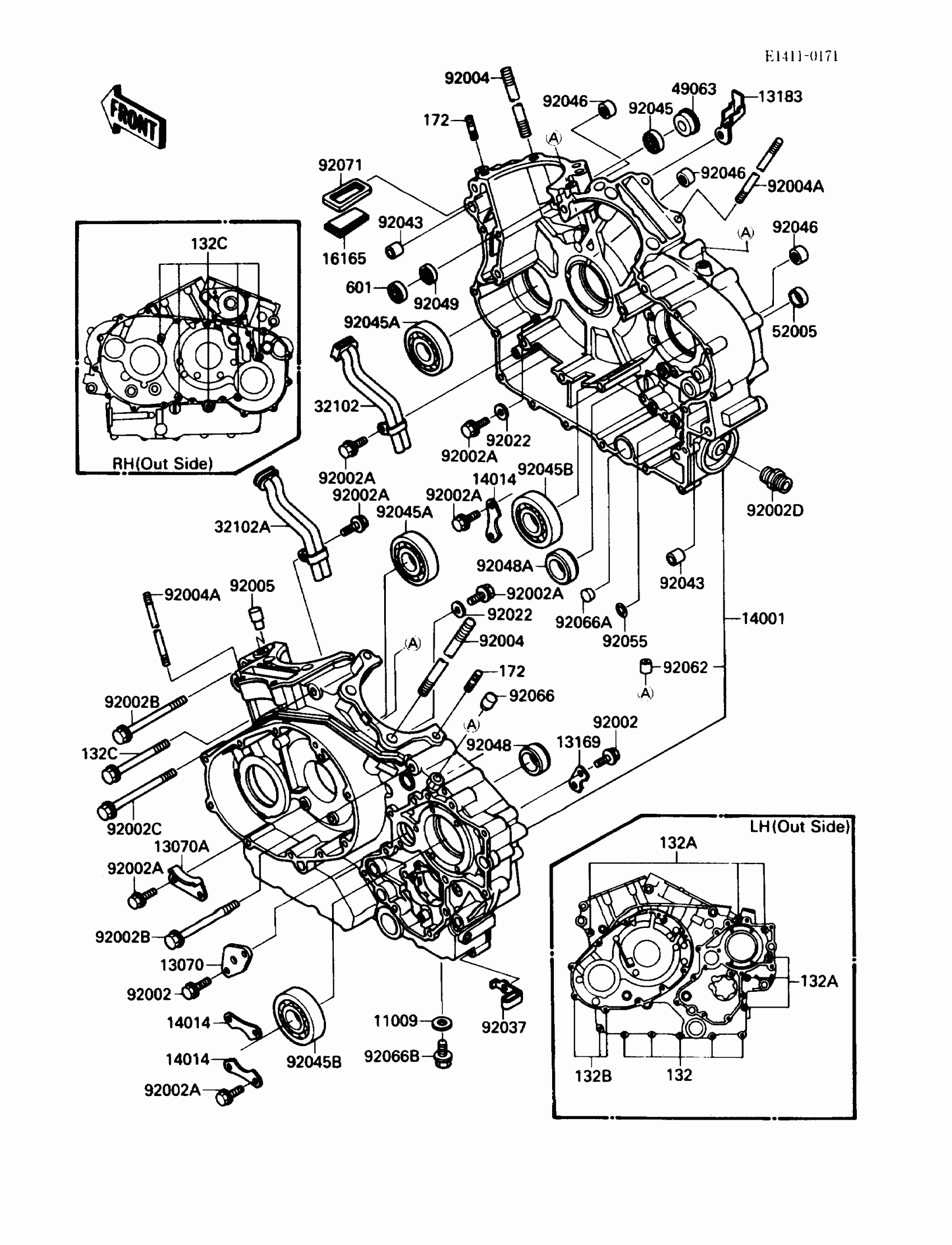

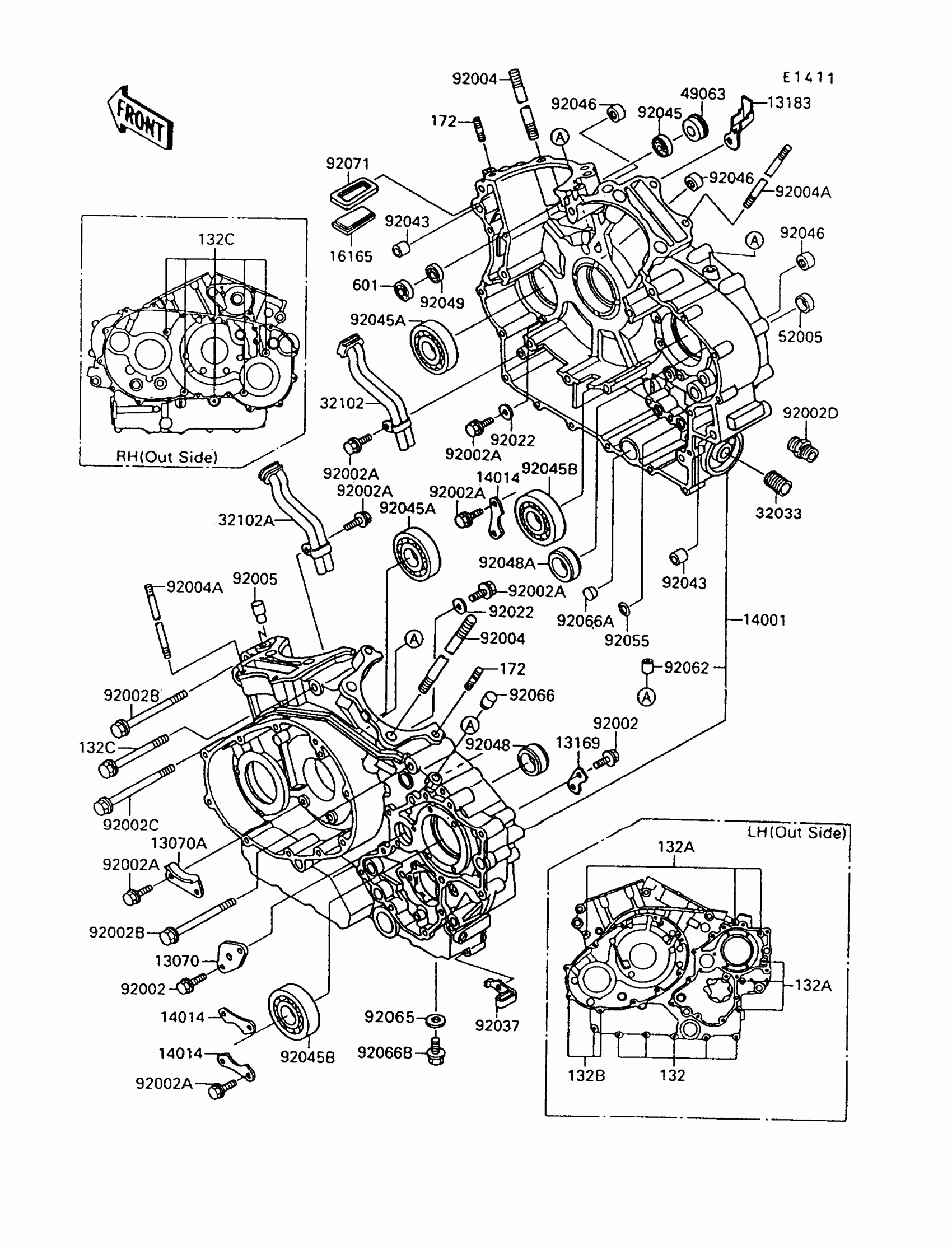

1991 Kawasaki Vulcan 88 Crankcase Diagram
Find the part on the Crankcase diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13183
PLATE
13183-1145
14001
SET-CRANKCASE
14001-5232
14014
PLATE-POSITION
14014-1084
32102
PIPE
32102-1407
92002A
BOLT,6X12
92002-1563
92002B
BOLT,10X105
92002-1897
92002C
BOLT,10X115
92002-1898
92002D
BOLT,OIL FILTER
92002-1899
92004
STUD,12X252
92004-1172
92004A
STUD,8X231
92004-1174
92005
FITTING
92005-1155
92037
CLAMP
92037-1925
92046
BEARING-NEEDLE,HK1212
92046-1163
92048
RACE
92048-1069
92048A
RACE
92048-1070
92049
SEAL-OIL,SC 12X22X5
92049-1228
132
BOLT-FLANGED-SMALL,6X40
132E0640
132A
BOLT-FLANGED-SMALL
132E0670
132C
BOLT-FLANGED-SMALL
132E0890
