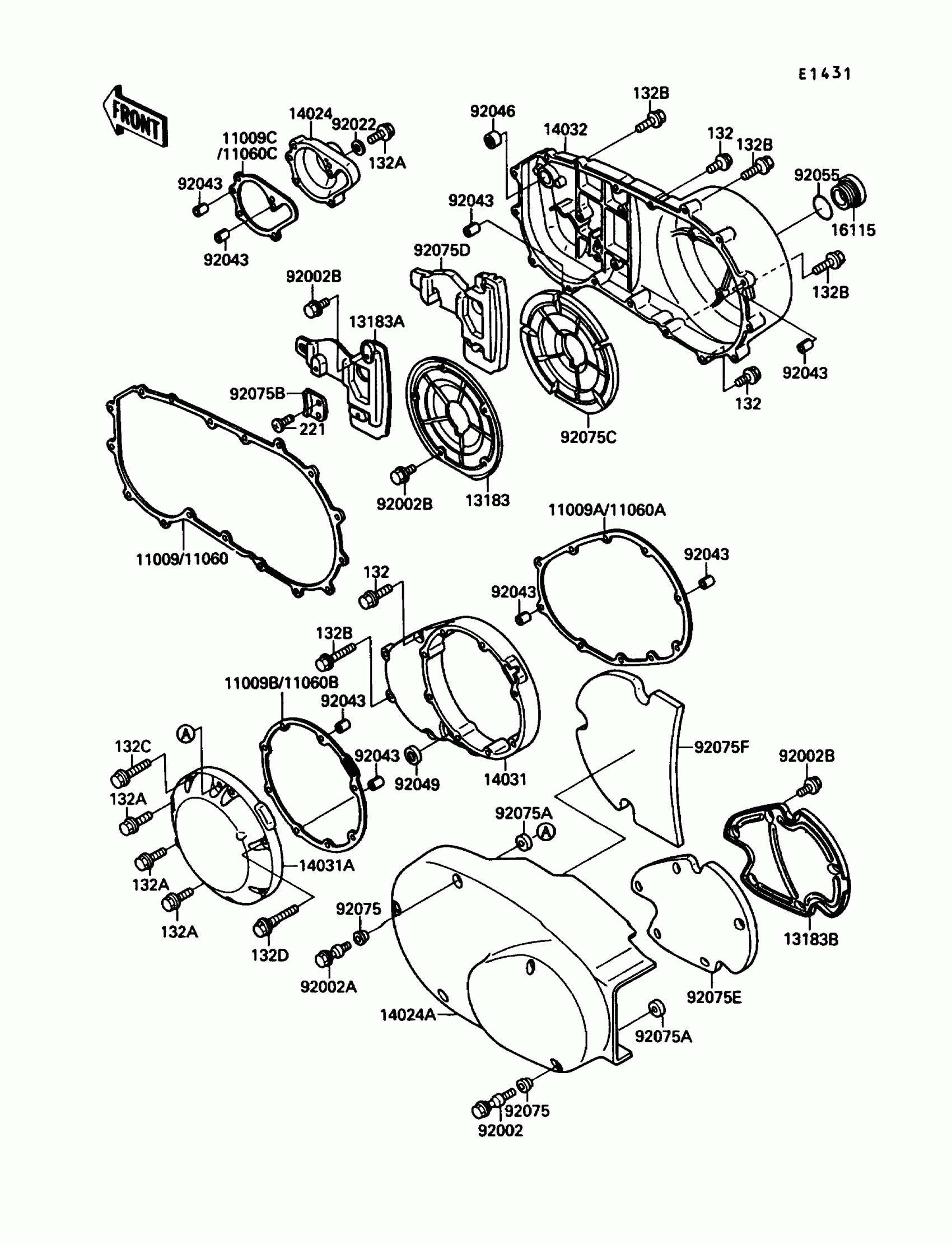

Kawasaki Vulcan 88 Engine Cover Diagram

#

Description
Price

11060

GASKET,CLUTCH COVER

11060-1121

$39.46

11060A

GASKET,GENERATOR

11060-1122

$29.75

11060B

GASKET,GENERATOR OUTER

11060-1123

$17.66

11060C

GASKET,WATER PUMP COVER

11060-1124

Unavailable

13183

PLATE

13183-1169

Unavailable

13183A

PLATE

13183-1170

Unavailable

13183B

PLATE,DAMPER

13183-1171

Unavailable

14024

COVER,WATER PUMP

14024-1402

Unavailable

14024A

COVER,LH

14024-1403

Unavailable

14031

COVER-GENERATOR

14031-1205

Unavailable

14031A

COVER-GENERATOR,OUTER

14031-1206

Unavailable

14032

COVER-CLUTCH

14032-1233

Unavailable

16115

CAP-OIL FILLER

16115-1056

$26.69

92002

BOLT

92002-1814

$9.49

92002A

BOLT

92002-1900

Unavailable

92002B

BOLT,6X8

92002-1944

$4.17

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92043

PIN,6.2X8X14

92043-1263

$0.49

92046

BEARING-NEEDLE,HK1212

92046-1163

$14.37

92049

SEAL-OIL,TB13225.5

92051-005

$6.16

92055

RING-O,31.5X2.6

92055-049

$3.43

92075

DAMPER

92075-1855

$7.93

92075A

DAMPER

92075-1856

$7.60

92075B

DAMPER

92075-1905

$11.07

92075C

DAMPER,CLUTCH COVER,RR

92075-1975

Unavailable

92075D

DAMPER,CLUTCH COVER,FR

92075-1976

Unavailable

92075E

DAMPER,LH COVER,RR

92075-1977

Unavailable

92075F

DAMPER,LH COVER,FR

92075-1978

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132B

BOLT-FLANGED-SMALL,6X35

132E0635

$4.61

132C

BOLT-FLANGED-SMALL,6X55

132E0655

Unavailable

132D

BOLT-FLANGED-SMALL

132E0665

$4.92

221

SCREW-CSK-CROS,6X12

221B0612

$1.73
