1995 Kawasaki Vulcan 88 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

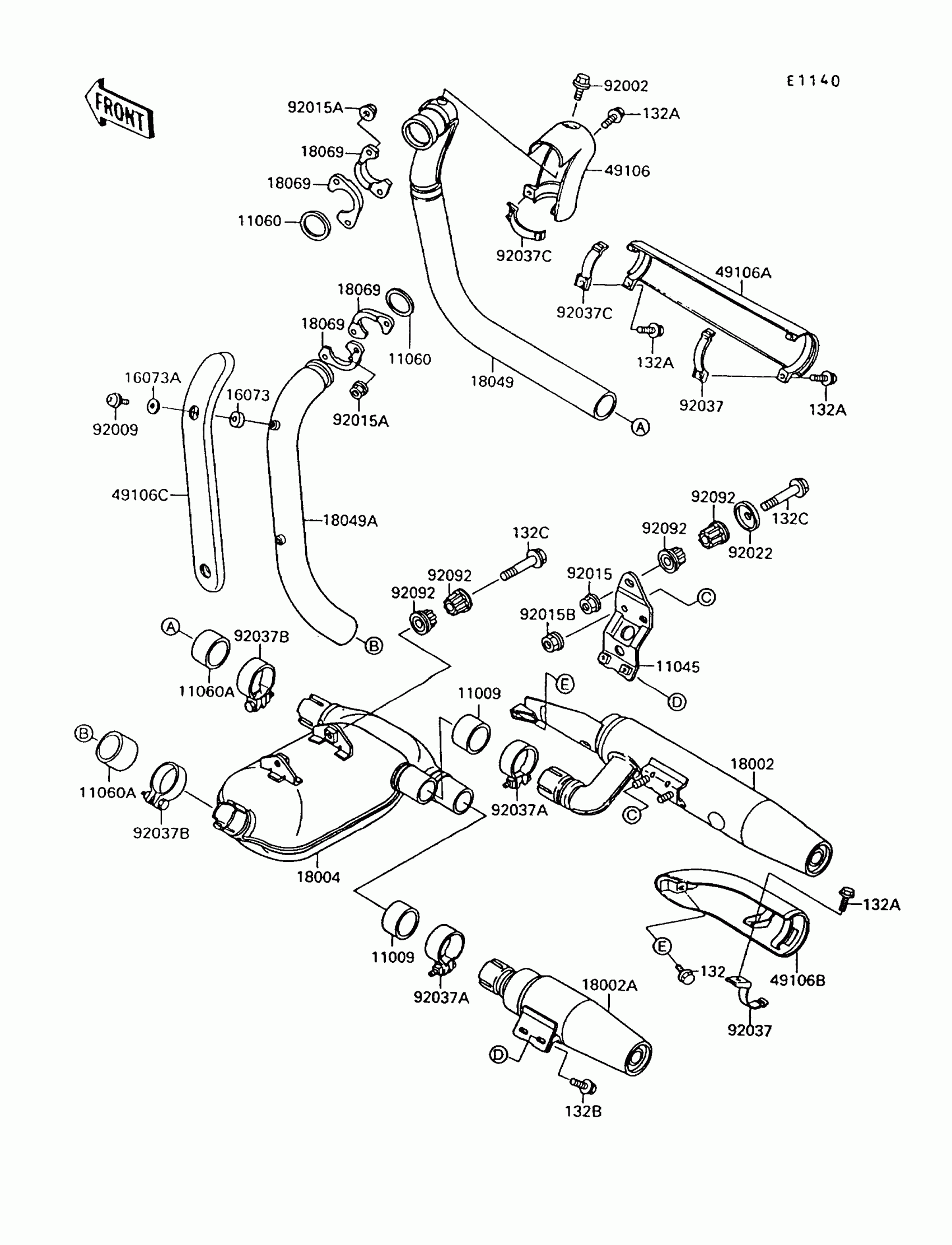

1995 Kawasaki Vulcan 88 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.72

In stock

132A

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

132B

BOLT-FLANGED-SMALL,8X14

132E0814

1
Out of stock

132C

1

$5.66

In stock

11009

1

$30.00

In stock

11045

BRACKET,MUFFLER

11045-1435

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-1119

1

$7.60

In stock

11060A

1

$24.21

In stock

16073

1

$4.62

In stock

16073A

1

$4.41

In stock

18002

BODY-COMP-MUFFLER,UPP

18002-1806

1
Out of stock

18002A

BODY-COMP-MUFFLER,LWR

18002-1807

1
Out of stock

18004

CHAMBER-PREMUFFLER

18004-1057

1
Out of stock

18049

PIPE-EXHAUST,FR

18049-1406

1
Out of stock

18049A

PIPE-EXHAUST,RR

18049-1407

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1074

1

$34.65

In stock

49106

1

$91.68

In stock

49106A

COVER-EXHAUST PIPE,FR

49106-1096

1
Out of stock

49106B

COVER-MUFFLER

49106-1107

1

$139.20

In stock

49106C

1

$110.72

In stock

92002

BOLT,6X8

92002-1604

1
Out of stock

92009

SCREW

92009-1517

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,CAP,8MM

92015-1371

1

$3.97

In stock

92015B

NUT,8MM

92015-1398

1

$3.81

In stock

92022

WASHER,CUP TYPE

92022-1270

1

$13.85

In stock

92037

CLAMP,MUFFLER COVER

92037-1615

1

$14.56

In stock

92037A

CLAMP,52MM

92037-1633

1

$25.63

In stock

92037B

CLAMP,59MM

92037-1863

1
Out of stock

92037C

CLAMP

92037-1874

1

$15.27

In stock

92092

1

$13.70

In stock
