1995 Kawasaki Vulcan 88 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

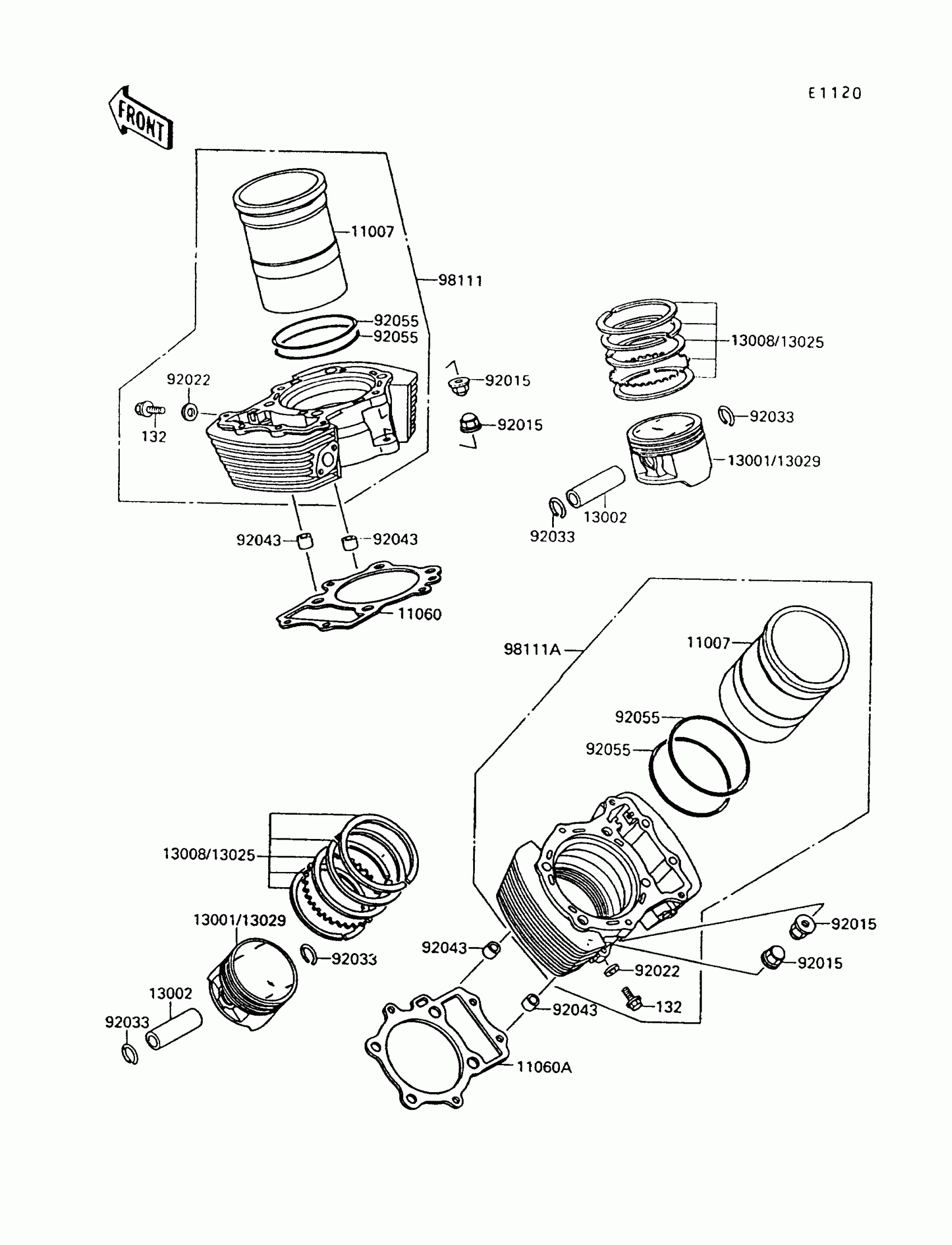

1995 Kawasaki Vulcan 88 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132E0610

1
Out of stock

11007

LINER-CYLINDER

11007-1097

1
Out of stock

11060

GASKET,CYLINDER BASE,FR

11060-1117

1
Out of stock

11060A

GASKET,CYLINDER BASE,RR

11060-1118

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1276

1
Out of stock

13002

PIN-PISTON

13002-1070

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1086

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1081

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1173

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92033

RING-SNAP

92033-1226

1
Out of stock

92043

PIN,DOWEL,13X16X14

92043-1349

1
Out of stock

92055

RING-O,110.5X2.5

92055-1371

1
Out of stock

98111

CYLINDER-COMP-ENGINE,FR

98111-1052

1
Out of stock

98111A

CYLINDER-COMP-ENGINE,RR

98111-1053

1
Out of stock
