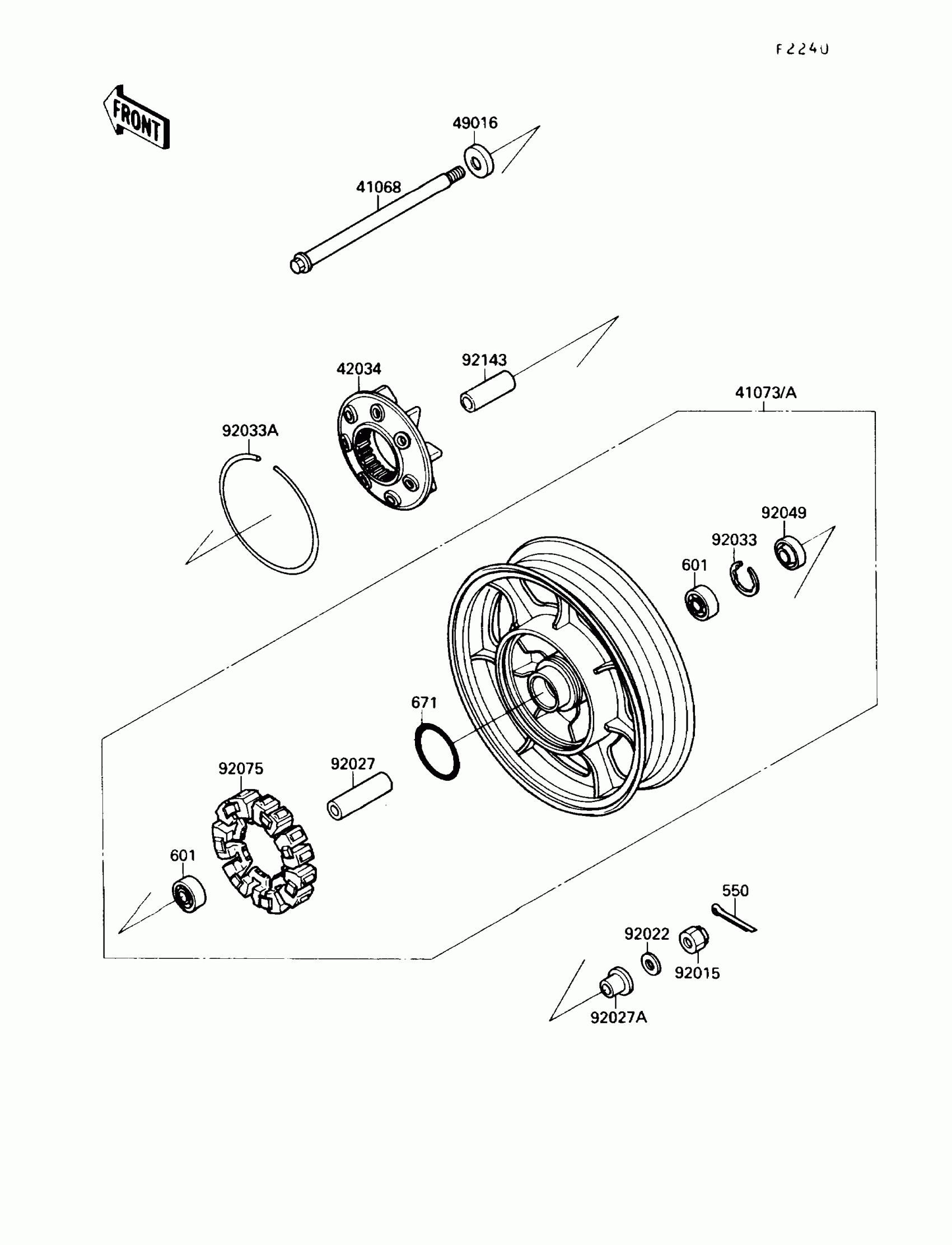

Kawasaki Vulcan 88 Rear Hub Diagram

Description

Price

41068

AXLE,RR

41068-1197

$120.19

41073A

WHEEL-ASSY,RR,BLACK

41073-1428-CB

$724.21

42034

COUPLING,RR HUB

42034-1011

$283.07

49016

COVER-SEAL

49016-1019

$8.53

92015

NUT,CASTLE,18MM

42045-018

$7.31

92022

WASHER,21X33X2.6

42046-003

$3.85

92027

COLLAR,20.2X28X105.5

92027-1901

$40.28

92027A

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92033

RING-SNAP,52MM

92033-1043

$6.41

92033A

RING-SNAP,220MM

92033-1230

$16.81

92049

SEAL-OIL,28X52X5

92049-1061

$18.58

92075

DAMPER,SHOCK,RR HUB

92075-1121

$144.96

92143

COLLAR,20.2X28X86

92027-1969

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.81

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

671

O RING,80MM

671B2580

$5.45
