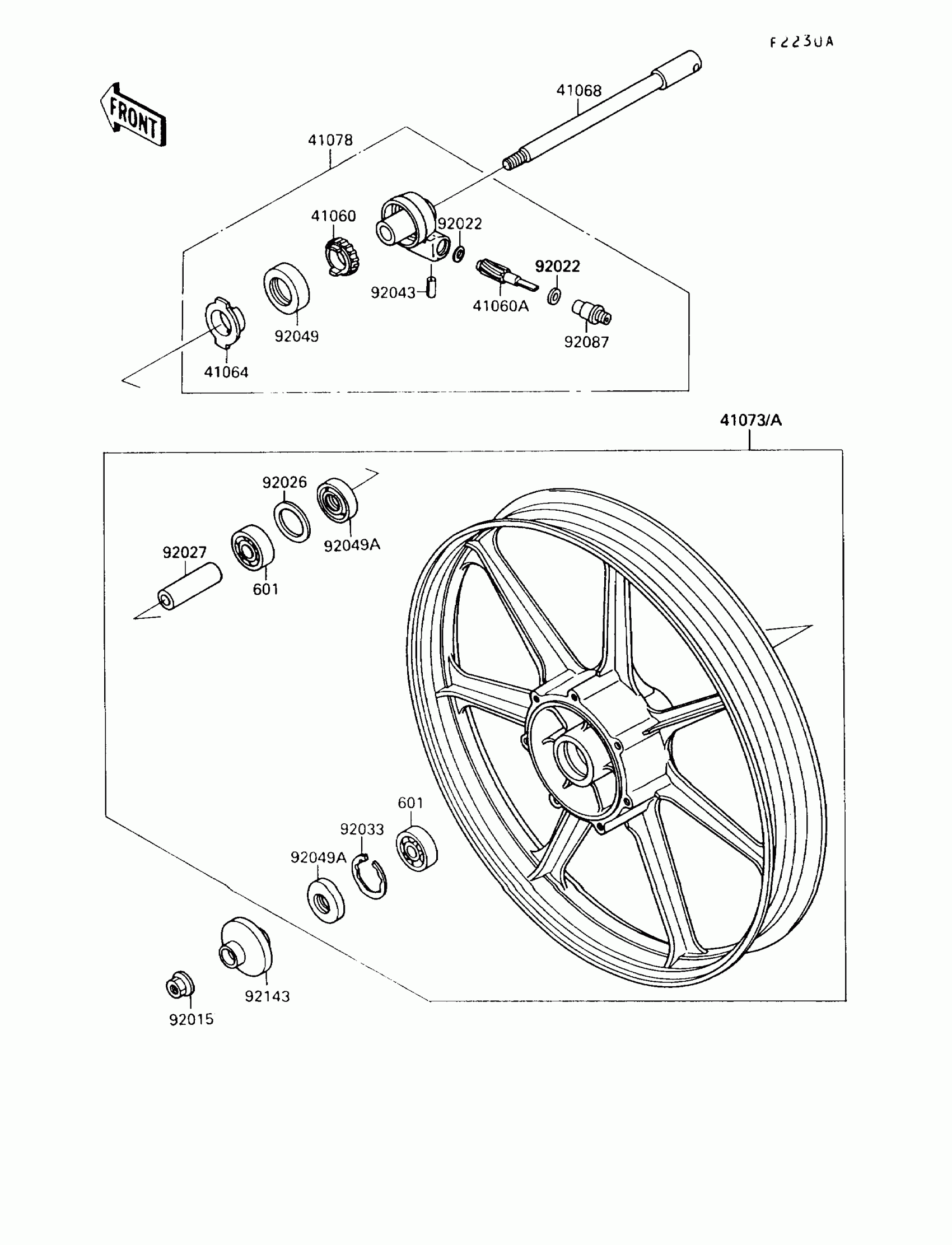

Kawasaki Vulcan 88 Front Hub(JA001441&NAMI) Diagram

Description

Price

41060

GEAR-METER SCREW,26T

41059-026

$43.35

41060A

GEAR-METER SCREW,9T

41060-1006

$39.54

41064

RECEIVER-SPEEDOMETER

41064-1053

Unavailable

41068

AXLE,FR

41068-1189

$74.19

41073A

WHEEL-ASSY,FR,BLACK

41073-1427-CB

Unavailable

41078

CASE-ASSY-METER GEAR

41078-1065

Unavailable

92015

NUT,14MM

92015-1407

$7.86

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92026

SPACER,32X41.5X2.6

92026-1354

Unavailable

92027

COLLAR,L=70

92027-1866

$20.88

92033

RING-SNAP,42MM

92033-1041

$4.88

92043

PIN,SPRING

41082-001

$3.53

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.38

92049A

SEAL-OIL,BJN22425

92049-1058

$7.72

92087

BUSHING-METER GEAR

92087-1056

$20.39

92143

COLLAR,FRONT AXLE,L=30

92143-1082

Unavailable

601

BEARING-BALL,#6302UG

601B6302UG

$38.63
