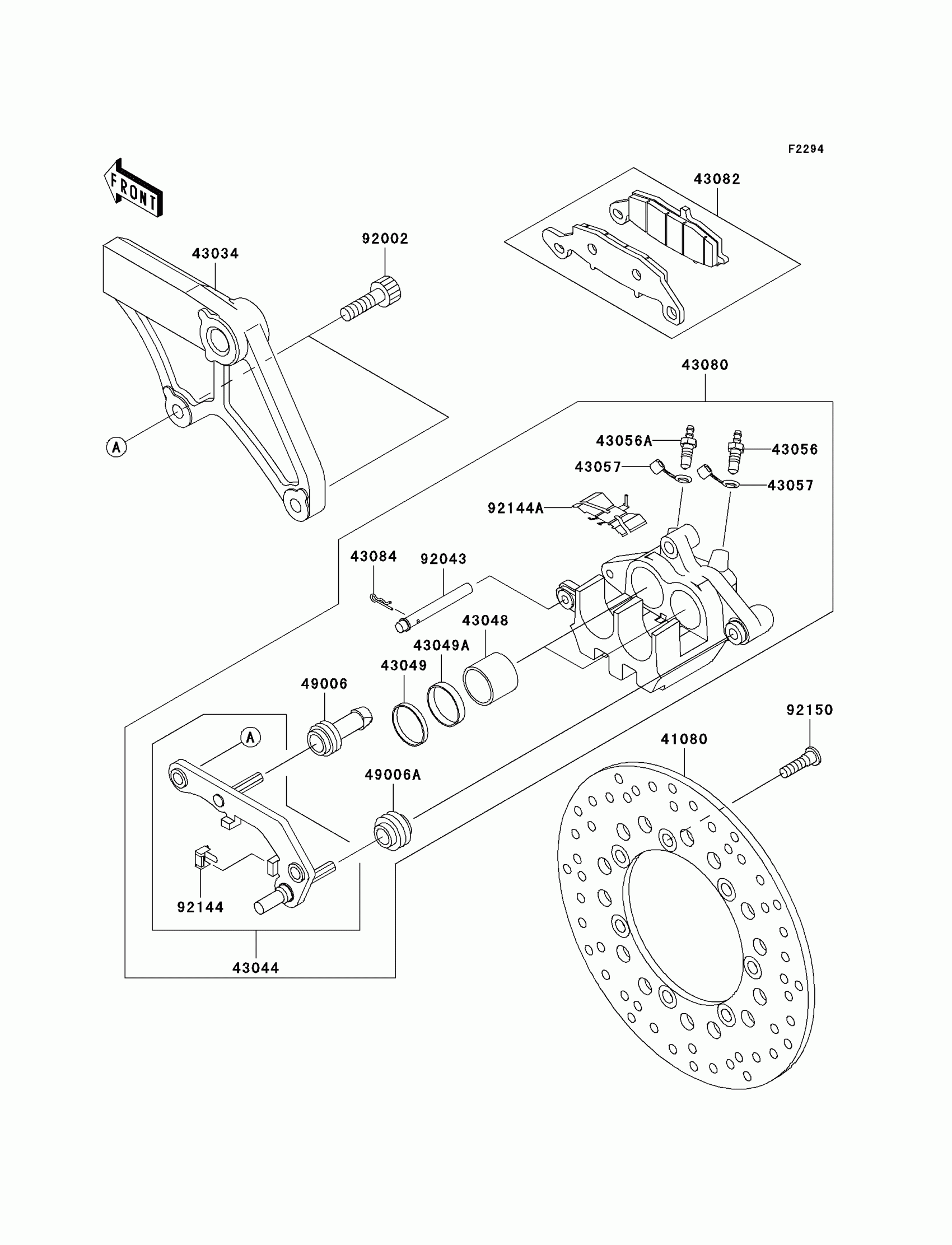

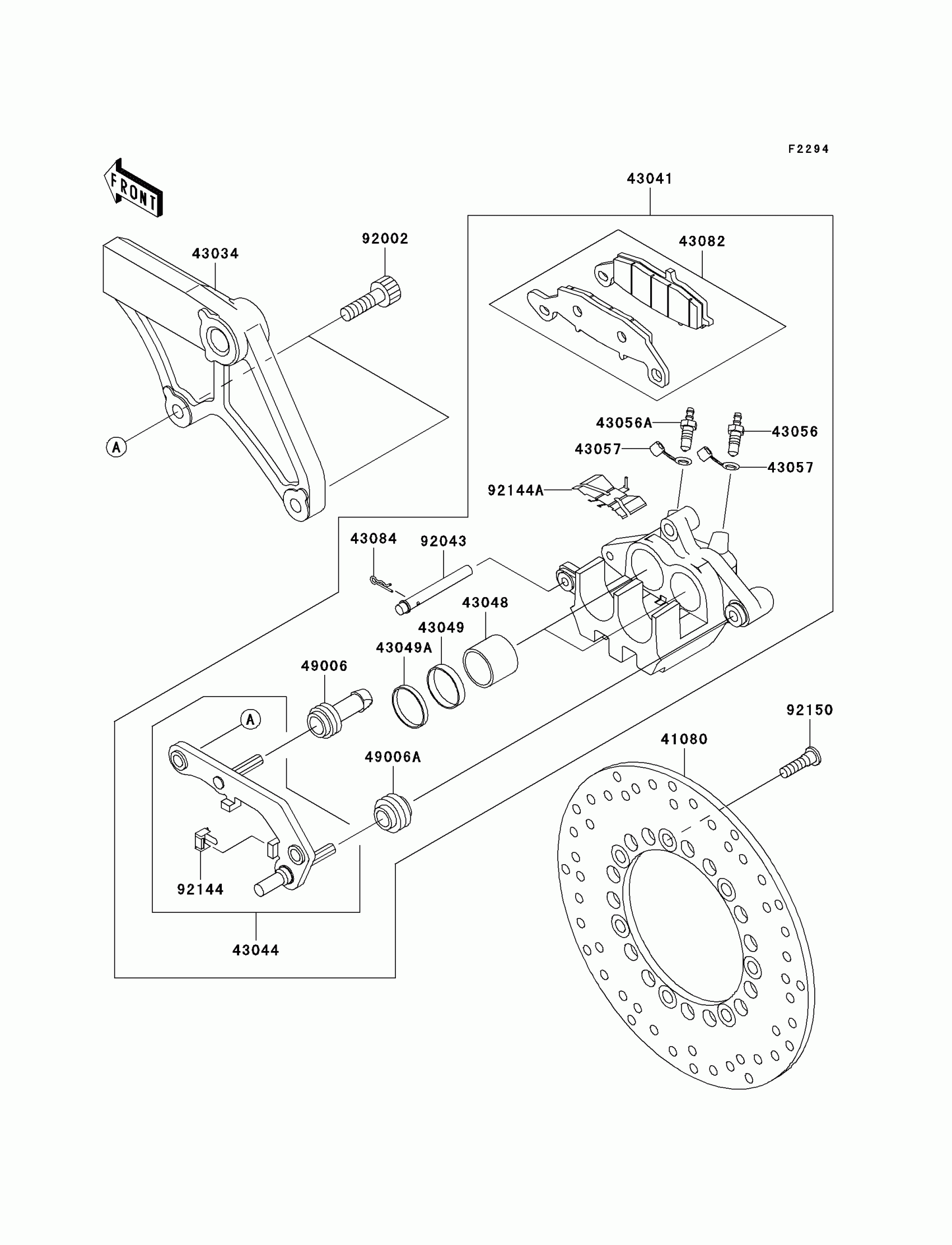

Kawasaki Vulcan 800 Drifter Rear Brake Diagram

Description

Price

41080

DISC,RR,SILVER

41080-1459-CM

$359.14

43034

HOLDER-BRAKE,REAR CALIPER

43034-1153

$182.26

43041

CALIPER-ASSY,RR,SILVER

43041-1680-GN

Unavailable

43044

HOLDER-COMP-CALIPER,RR

43044-1125

$187.61

43048

PISTON-CALIPER

43048-1073

$58.51

43049

PACKING,PISTON SEAL

43049-1067

$7.91

43049A

PACKING

43049-1068

$7.48

43056

BREATHER

43056-003

$19.94

43056A

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1237

$57.68

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

92002

BOLT,SOCKET,10X17

92002-1713

$5.61

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,STOPPER

92144-1831

$4.14

92144A

SPRING,PAD,RH

92144-1844

$9.68

92150

BOLT,SOCKET,8X30

92150-1771

$3.57
