2000 Kawasaki Vulcan 800 Drifter Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

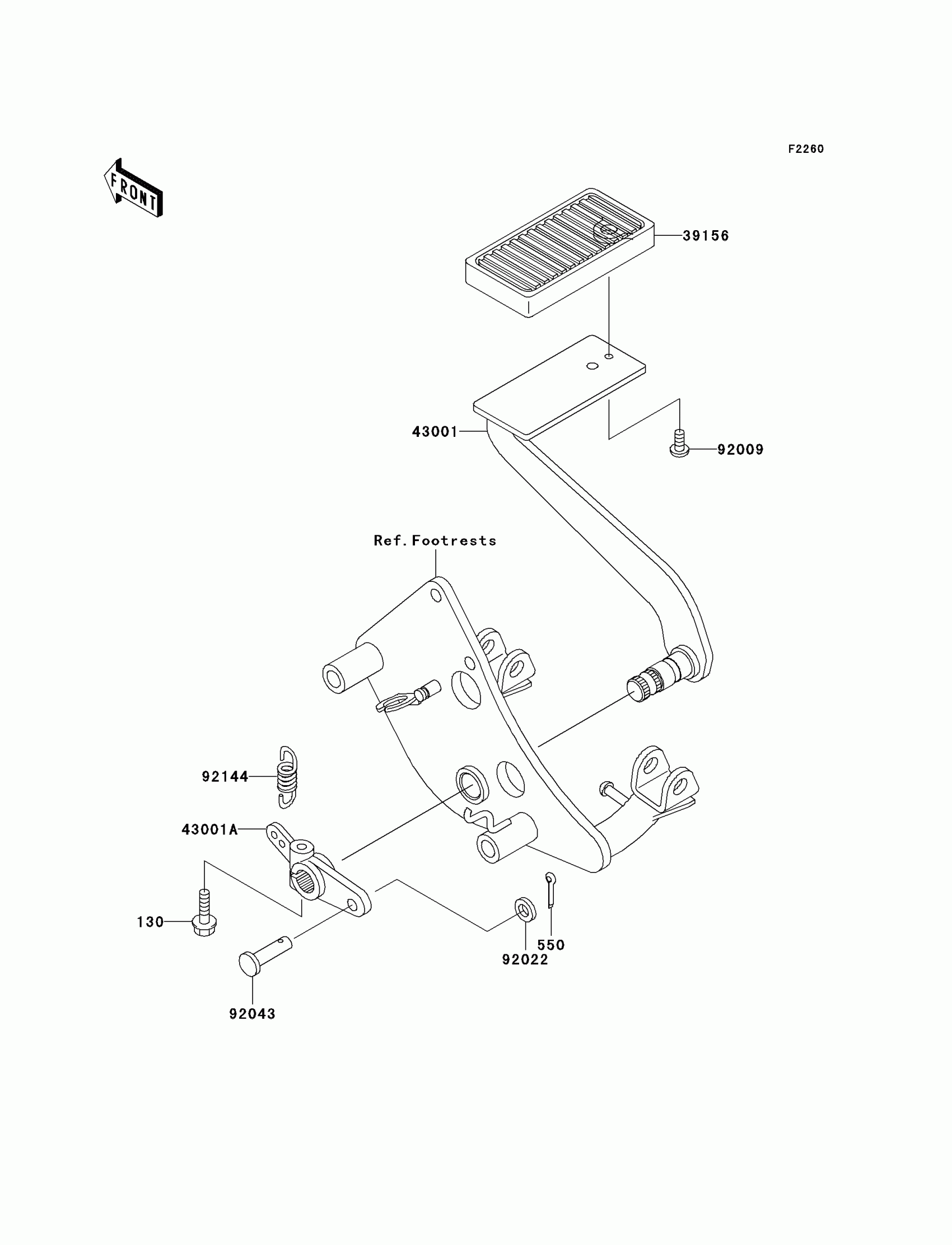

2000 Kawasaki Vulcan 800 Drifter Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

39156

PAD,BRAKE PEDAL

39156-1540

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1408

1
Out of stock

43001A

LEVER-BRAKE

43001-1410

1
Out of stock

92009

SCREW,6X8

92009-1677

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

1
Out of stock
