2000 Kawasaki Vulcan 800 Drifter Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

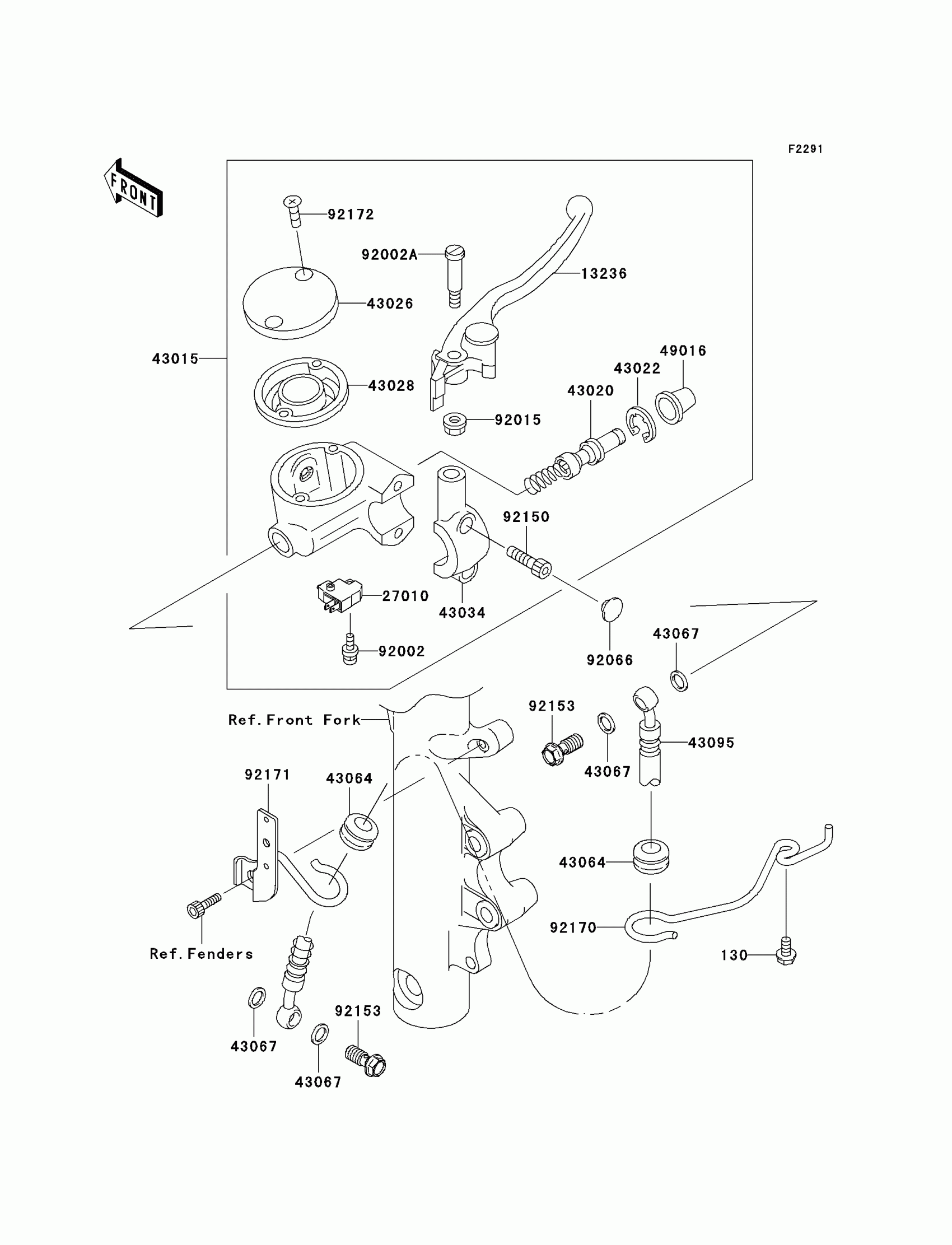

2000 Kawasaki Vulcan 800 Drifter Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1315

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1639

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1056

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE,BLACK

43026-1079

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

1
Out of stock

43034

HOLDER-BRAKE,BLACK

43034-1138

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

43095

HOSE-BRAKE,FR

43095-1125

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT,LEVER SET

92002-1561

1
Out of stock

92002B

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,5MM

92009-1440

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92066

PLUG

92066-1301

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1025

1
Out of stock

92170

CLAMP,HOSE

92170-1959

1
Out of stock

92170A

CLAMP,HOSE

92170-1978

1

$19.37

In stock
