2005 Kawasaki Vulcan 800 Drifter Rear Brake Diagram

← All diagrams

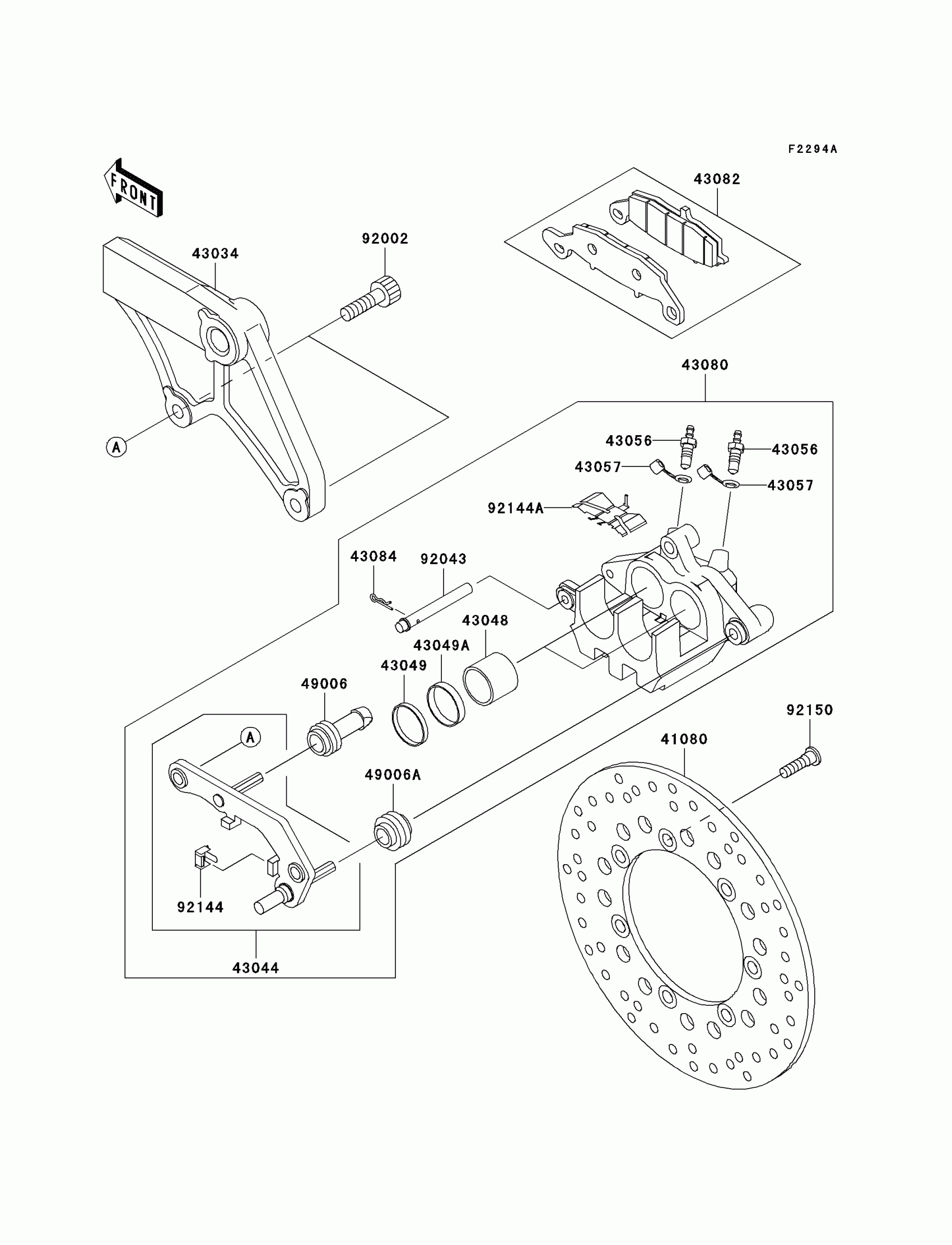

Find the part on the Rear Brake diagram for your 2005 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 800 Drifter Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR,SILVER

41080-0061-CM

1

$359.14

In stock

43034

1

$182.26

In stock

43044

1

$187.61

In stock

43048

PISTON-CALIPER

43048-1073

1

$59.90

In stock

43049

PACKING

43049-1068

1

$7.79

In stock

43049A

PACKING,PISTON SEAL

43049-1092

1

$8.25

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$423.72

In stock

43082

PAD-ASSY-BRAKE

43082-1265

1
Out of stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92002

BOLT,SOCKET,10X17

92002-1713

1
Out of stock

92043

PIN,PAD

92043-1489

1

$5.21

In stock

92144

SPRING,STOPPER

92144-1831

1

$4.34

In stock

92144A

SPRING,PAD,RH

92144-1844

1

$9.68

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock
