2000 Kawasaki Vulcan 800 Classic Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

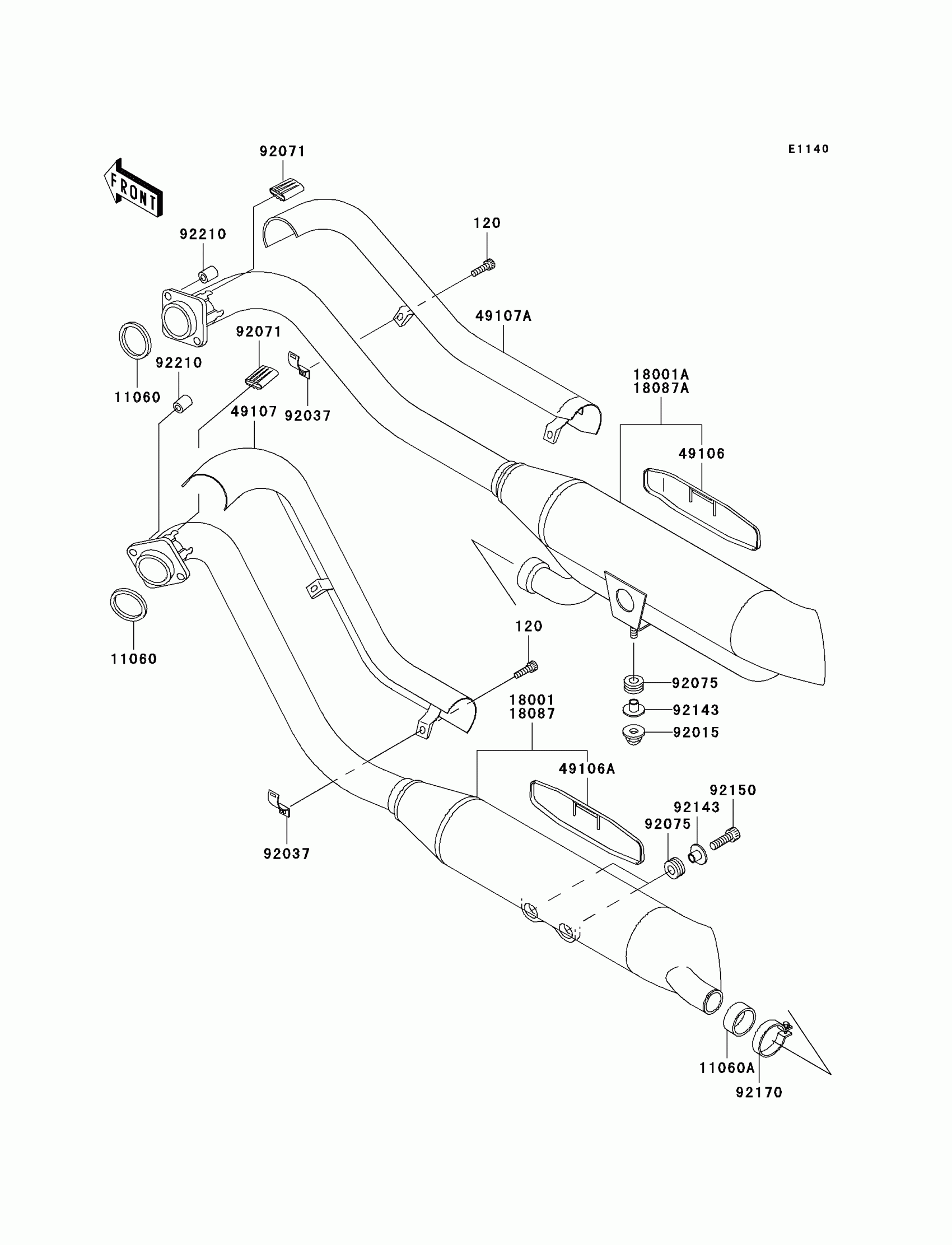

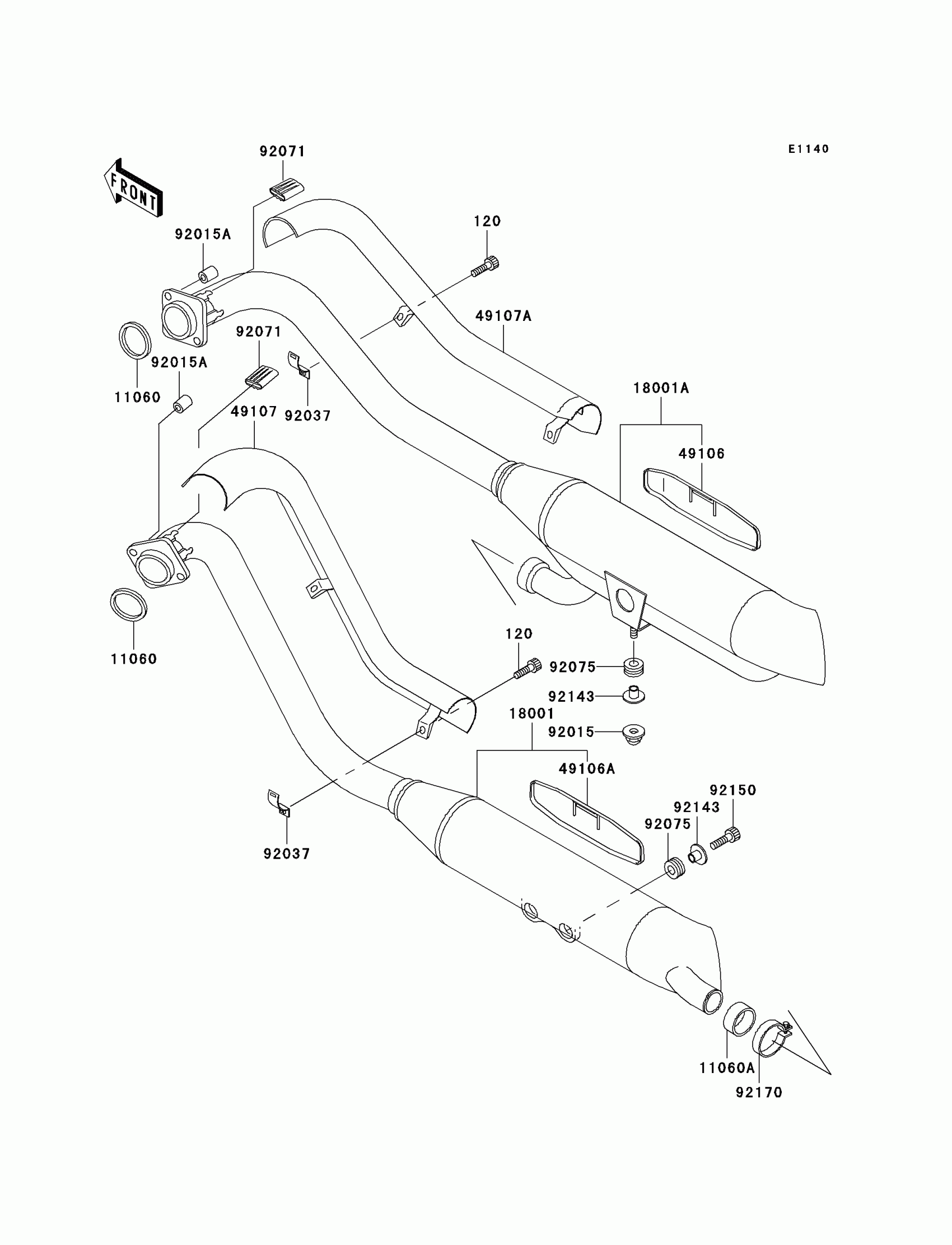

2000 Kawasaki Vulcan 800 Classic Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-1680

1

$8.50

In stock

11060A

GASKET,JOINT

11060-1681

1

$33.27

In stock

18001

MUFFLER,FR

18001-1932

1

$777.77

In stock

18001A

MUFFLER,RR

18001-1933

1

$777.77

In stock

49106

COVER-MUFFLER,RR

49106-1179

1

$37.03

In stock

49106A

COVER-MUFFLER,FR

49106-1182

1

$37.03

In stock

49107

1

$136.35

In stock

49107A

1

$136.35

In stock

92015

NUT,CAP,8MM

92015-1370

1
Out of stock

92015A

NUT

92015-1983

1

$9.45

In stock

92037

CLAMP,EXHAUST PIPE COVER

92037-1613

1
Out of stock

92071

GROMMET

92071-1226

1

$5.11

In stock

92075

DAMPER

92075-1898

1

$3.72

In stock

92143

COLLAR

92143-1753

1

$6.24

In stock

92150

BOLT,SOCKET,8X25

92150-1912

1

$3.72

In stock

92170

CLAMP

92170-1538

1

$23.36

In stock
