2000 Kawasaki Vulcan 800 Classic Left Engine Cover Diagram

← All diagrams

Find the part on the Left Engine Cover diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

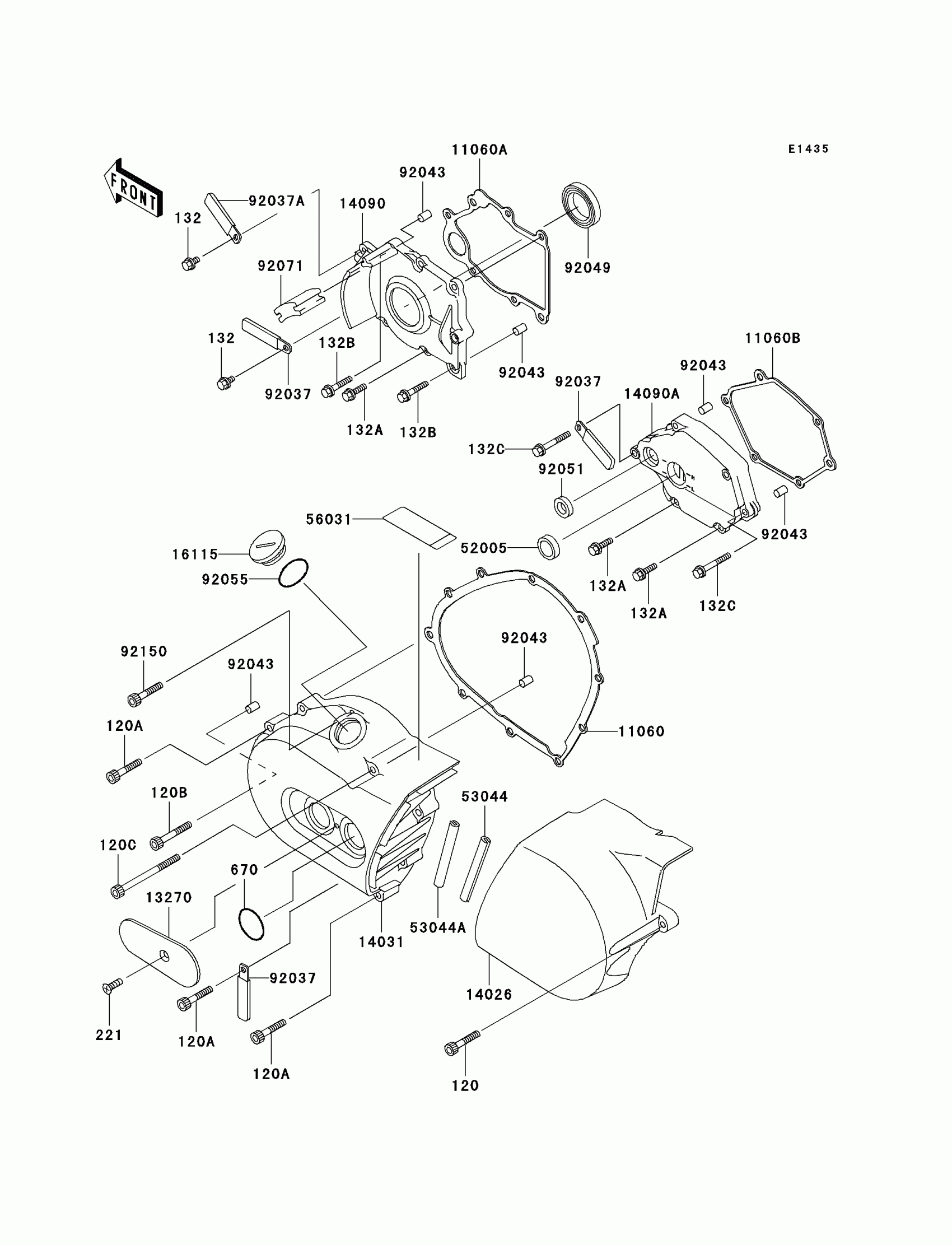

2000 Kawasaki Vulcan 800 Classic Left Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X30

120R0630

1

$3.49

In stock

120A

BOLT-SOCKET,6X35

120R0635

1

$4.42

In stock

120B

BOLT-SOCKET,6X45

120R0645

1

$4.80

In stock

120C

BOLT-SOCKET,6X85

120R0685

1

$9.07

In stock

132

BOLT-FLANGED-SMALL,6X10

132H0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

221

SCREW-CSK-CROS,6X14

221R0614

1
Out of stock

670

O RING,34MM

670B3034

1

$1.66

In stock

11060

1

$27.63

In stock

11060A

1

$19.54

In stock

11060B

1

$15.12

In stock

13270

PLATE

13270-1397

1
Out of stock

14026

COVER-CHAIN

14026-1217

1

$334.10

In stock

14031

COVER-GENERATOR

14031-1308

1

$405.70

In stock

14090

COVER,TRANSMISSION

14090-1552

1
Out of stock

14090A

COVER,MECHANISM

14090-1559

1

$129.90

In stock

16115

CAP-OIL FILLER

16115-1063

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

53044

TRIM

53044-1285

1

$4.61

In stock

53044A

TRIM

53044-1286

1

$5.75

In stock

56031

1

$7.44

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92037A

CLAMP

92037-1993

1

$4.37

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92049

SEAL-OIL,TC32488

92049-1361

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92071

GROMMET

92071-1232

1

$7.44

In stock

92150

BOLT,SOCKET,6X35

92150-1887

1

$3.92

In stock
