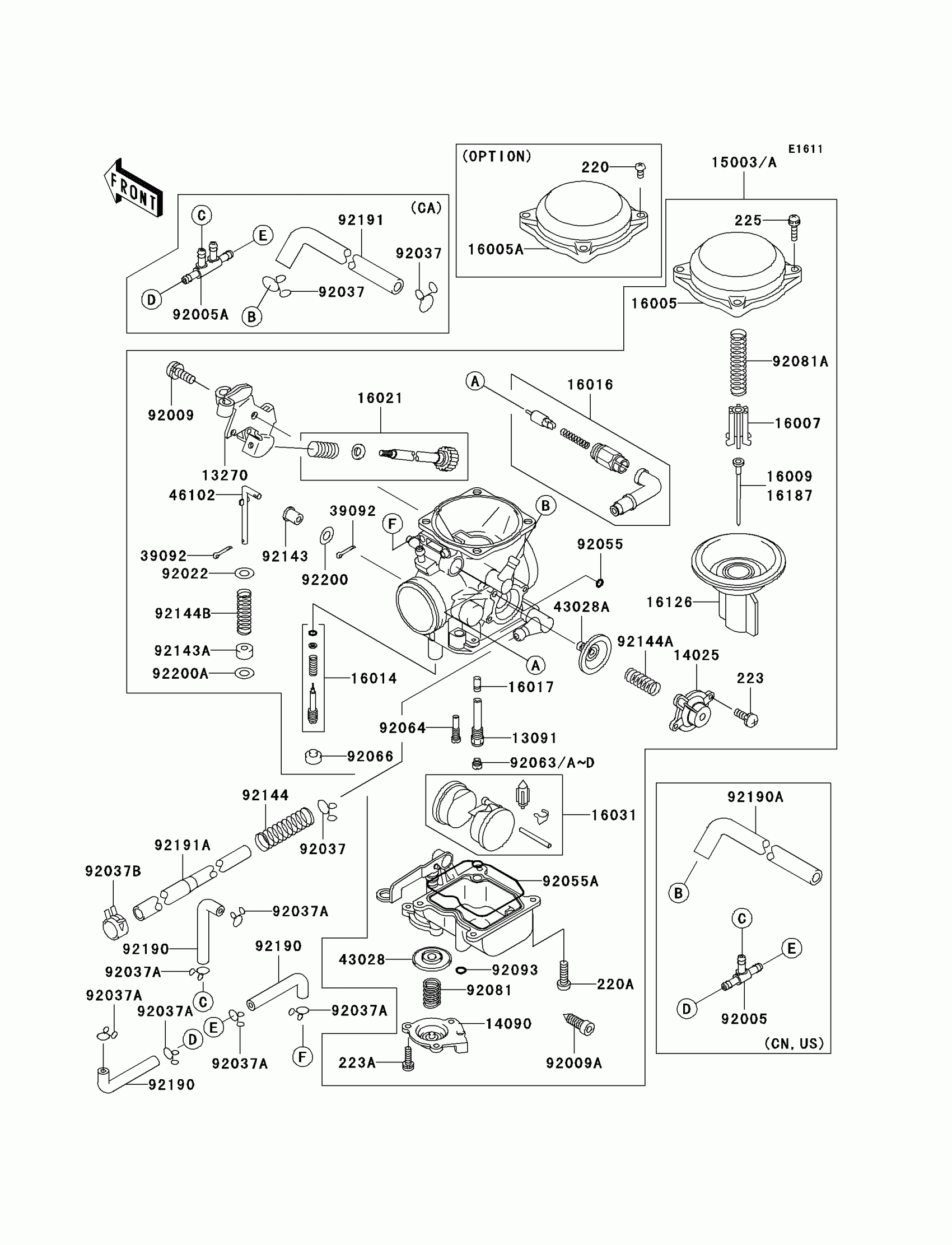

Kawasaki Vulcan 800 Classic Carburetor Diagram

#

Description
Price

13091

HOLDER

13091-1930

$34.00

13270

PLATE

13270-1513

$43.33

14025

COVER,AIR CUT VALVE

14025-1903

$59.59

14041

TOP-CHAMBER

14041-1076

$97.80

14090

COVER,ACCELERATOR

14090-1635

$60.49

15003

CARBURETOR-ASSY

15003-1200

$917.84

16005

TOP-CHAMBER,MIXING,27/60

16005-1057

$46.10

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009

NEEDLE-JET

16009-1861

$38.22

16014

SCREW-PILOT AIR

16014-1081

$19.94

16016

PLUNGER,STARTER

16016-1100

$46.36

16017

JET-NEEDLE

16017-1377

Unavailable

16021

SCREW-THROTTLE STOP

16021-1207

$123.69

16031

FLOAT

16031-1089

$61.03

16126

VALVE,VACUUM

16126-1170

$204.57

39092

PIN-HAIR

39092-1058

$2.47

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

43028A

DIAPHRAGM

43028-1077

$79.04

46102

ROD

46102-1385

$14.24

92009

SCREW,5X10

92009-1365

$5.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037A

CLAMP

92037-1610

$1.42

92037B

CLAMP

92037-2082

$1.09

92055

RING-O

92055-1245

$4.23

92055A

RING-O,FLOAT CHAMBER

92055-1518

$19.83

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#135

92063-1014

$10.71

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51

223

SCREW-PAN-WS-CROS,4X8

223C0408

Unavailable

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92063B

JET-MAIN,#138

92063-1015

$10.71

92063C

JET-MAIN,#130

92063-1075

$13.39

92063D

JET-MAIN,#132

92063-1076

$13.39

92064

JET-PILOT

92064-1174

$17.80

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,DIAPHRAGM

92081-1092

$11.12

92081A

SPRING,VACUUM VALVE

92081-1826

$24.24

92093

SEAL-"U"RING

92093-1046

$4.88

92143

COLLAR

92143-1790

$3.27

92143A

COLLAR

92143-1791

Unavailable

92144

SPRING,FUEL TUBE

92144-1874

$6.12

92144A

SPRING

92144-1885

$12.36

92144B

SPRING

92144-1886

Unavailable

92190

TUBE,4X9X80

92190-1610

$4.22

92191A

TUBE

92191-1041

$11.94

92200

WASHER

92200-1274

$2.51

92200A

WASHER

92200-1275

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1307

$8.71

92037

CLAMP-HOSE

92037-1104

$1.09

92037

CLAMP-HOSE

92037-1104

$1.09

92190A

TUBE,7X12X540,GREEN

92190-1619

$24.97

92191

TUBE,7X12X480,YELLOW

92191-1008

Unavailable
