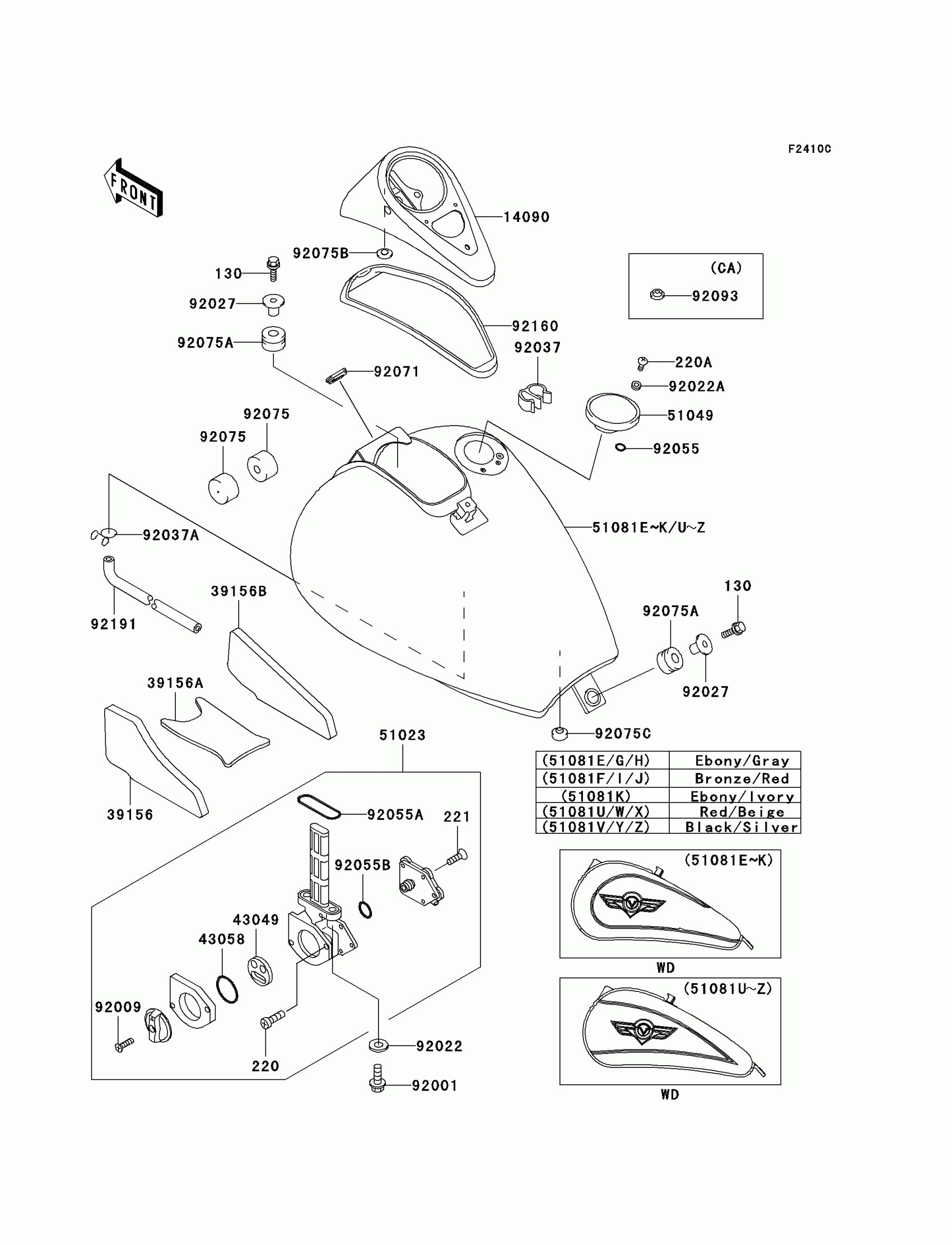

Kawasaki Vulcan 800 Classic Fuel Tank(4/4)(VN800-B4/B5) Diagram

#

Description
Price

14090

COVER,METER

14090-1560

$124.13

39156

PAD,FUEL TANK,LH

39156-1512

Unavailable

39156A

PAD,FUEL TANK,CNT

39156-1513

Unavailable

39156B

PAD,FUEL TANK,RH

39156-1629

Unavailable

43049

PACKING,TAP VALVE

43049-1075

Unavailable

43058

RING,TAP LEVER

43058-1083

$6.90

51023

TAP-ASSY,FUEL

51023-1219

$131.35

51049

CAP-TANK,FUEL

51049-1103

$112.77

92001

BOLT,6X25

92001-1524

$1.78

130

BOLT-FLANGED,8X30

130H0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

92009

SCREW,4X12

92009-1742

$2.17

92022

WASHER-PLAIN

92022-183

$3.12

92022A

WASHER,5.1X10X1.0

92022-1977

$2.92

92027

COLLAR,L=19.3

92027-1780

$5.21

92055

RING-O

92055-1023

$3.12

92055A

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92055B

RING-O

92055-1539

$5.11

92071

GROMMET

92071-1187

$3.94

92075

DAMPER,FUEL TANK

92075-125

$4.93

92075A

DAMPER

92075-1736

$5.21

92075B

DAMPER,RUBBER

92075-261

$3.85

92075C

DAMPER,9X24X14

92075-281

$4.93

92160

DAMPER,METER COVER

92160-1593

$44.64

51081U

TANK-COMP-FUEL,RED/BEIGE

51081-5260-IL

Unavailable

51081V

TANK-COMP-FUEL,BLACK/SILVER

51081-5261-IM

Unavailable

51081W

TANK-COMP-FUEL,RED/BEIGE

51081-5256-IN

Unavailable

51081X

TANK-COMP-FUEL,RED/BEIGE

51081-5257-IN

Unavailable

51081Y

TANK-COMP-FUEL,BLACK/SILVER

51081-5258-IP

Unavailable

51081Z

TANK-COMP-FUEL,BLACK/SILVER

51081-5259-IP

Unavailable

92037

CLAMP

92037-1458

$5.66

92037A

CLAMP,TUBE

92037-147

$5.84

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92191

TUBE

92191-1015

$29.52
