2000 Kawasaki Vulcan 500 LTD Ignition Switch/locks/reflectors Diagram

← All diagrams

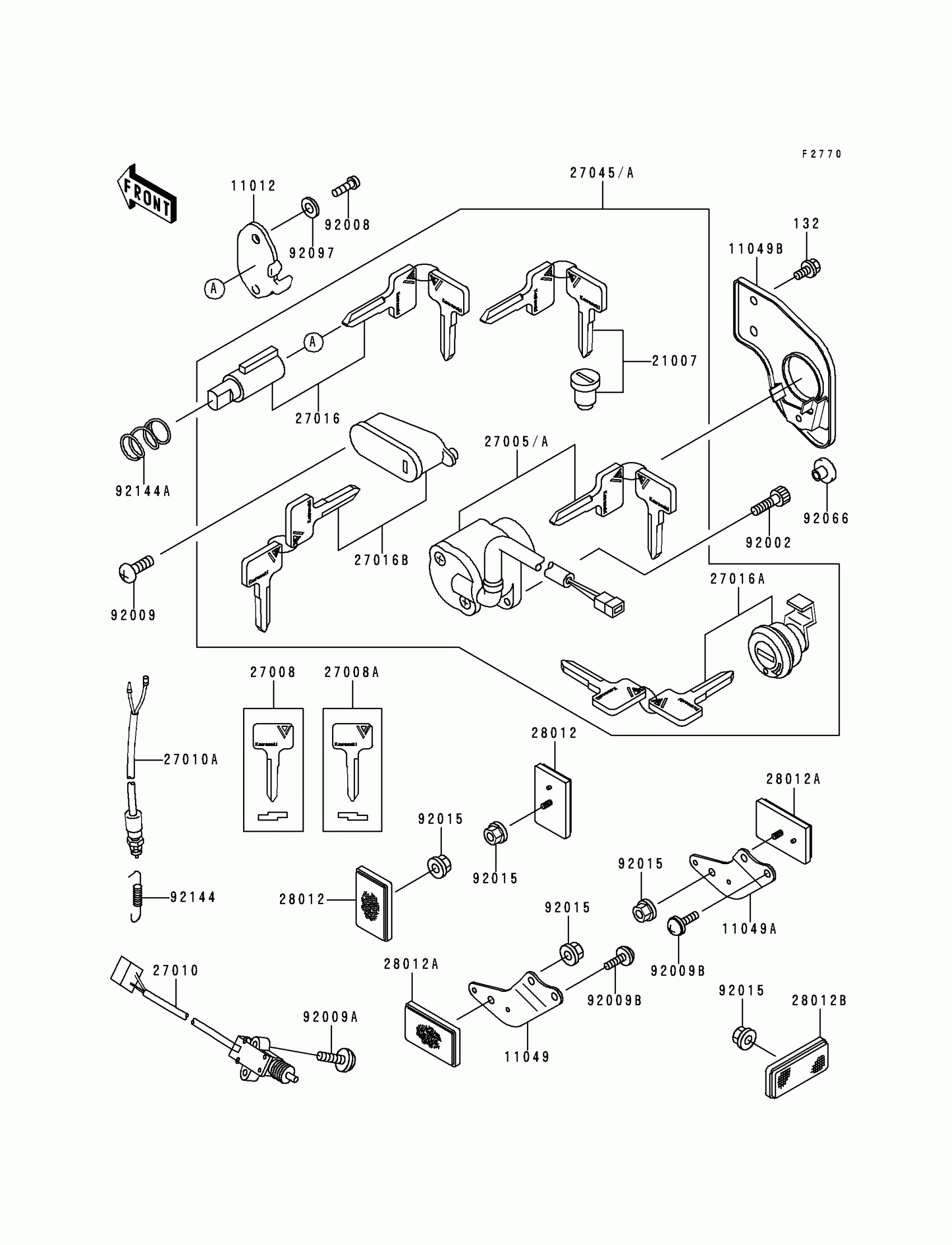

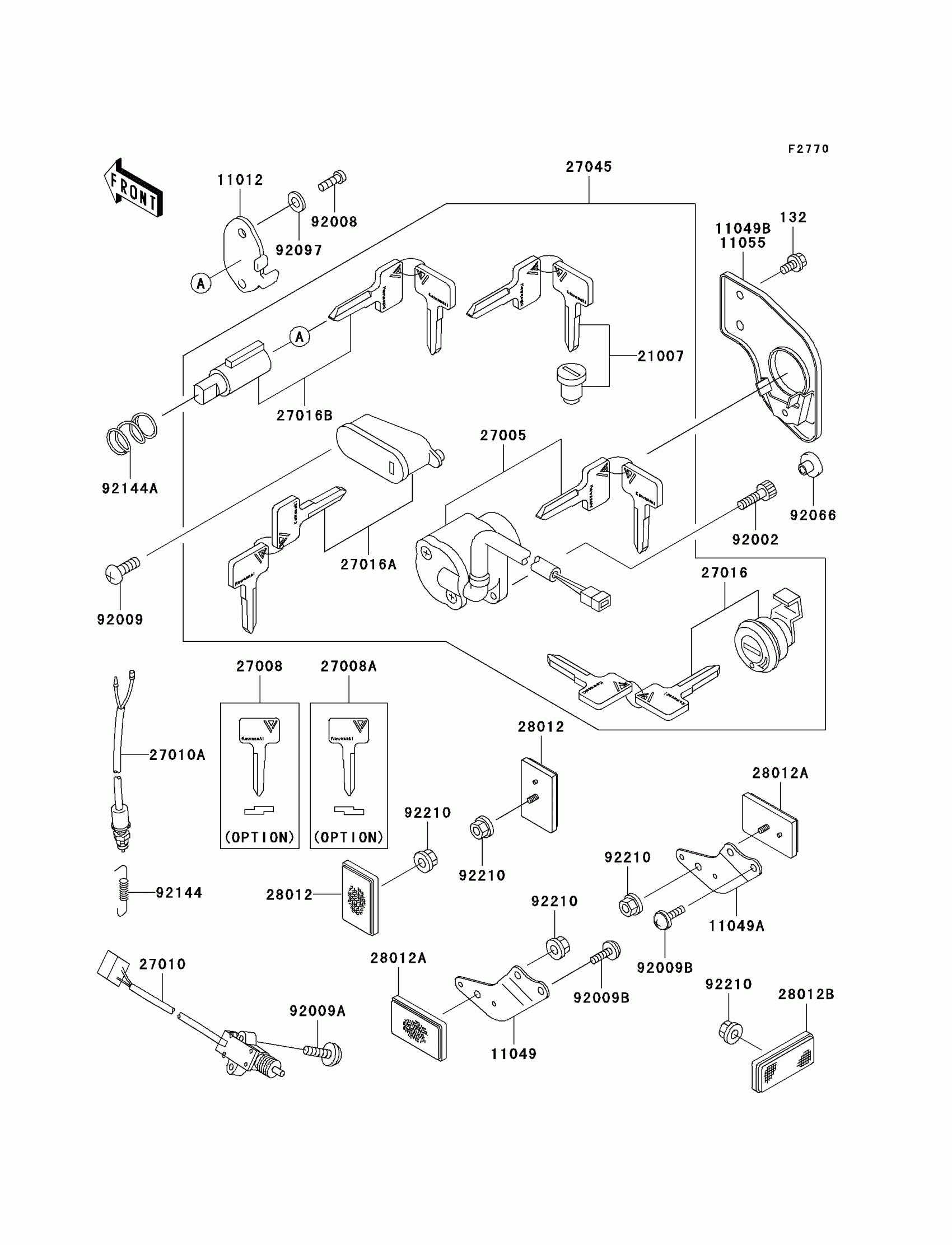

Find the part on the Ignition Switch/locks/reflectors diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 500 LTD Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock

11012

CAP,STEERING LOCK

11012-1586

1
Out of stock

11049

1

$8.27

In stock

11049A

1

$8.27

In stock

11049B

1

$19.69

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5024

1

$74.13

In stock

27005A

1

$187.57

In stock

27008

KEY-LOCK,BLANK,#A

27008-1138

1

$19.58

In stock

27008A

KEY-LOCK,BLANK,#B

27008-1139

1

$19.34

In stock

27010

SWITCH,SIDE STAND

27010-1223

1

$73.52

In stock

27010A

SWITCH,REAR BRAKE

27010-1238

1

$35.81

In stock

27016

LOCK-ASSY,STEERING

27016-5131

1

$87.55

In stock

27016A

LOCK-ASSY,LID

27016-5225

1

$70.92

In stock

27016B

LOCK-ASSY,HELMET

27016-5226

1

$69.10

In stock

27045A

SWITCH-ASSY

27045-5043

1

$377.37

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1051

1

$24.63

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92002

BOLT,SOCKET,5X18

92002-1805

1
Out of stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,5X14

92009-1341

1
Out of stock

92009A

SCREW,5X20

92009-1459

1
Out of stock

92009B

SCREW,5X10

92009-1651

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92066

PLUG

92066-1435

1

$2.25

In stock

92097

WASHER,WAVE

92097-003

1

$3.57

In stock

92144

1

$4.34

In stock

92144A

1

$3.98

In stock
