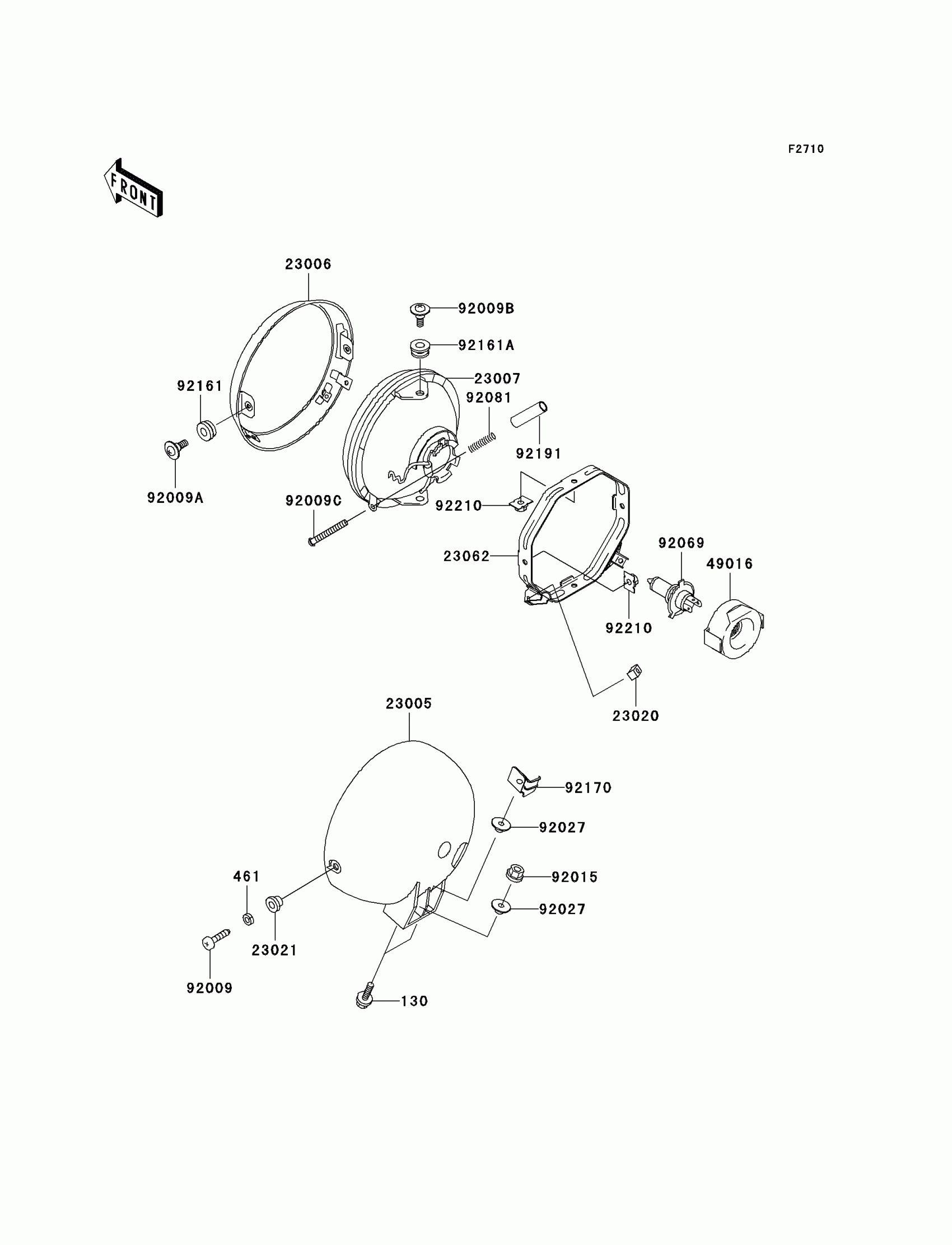

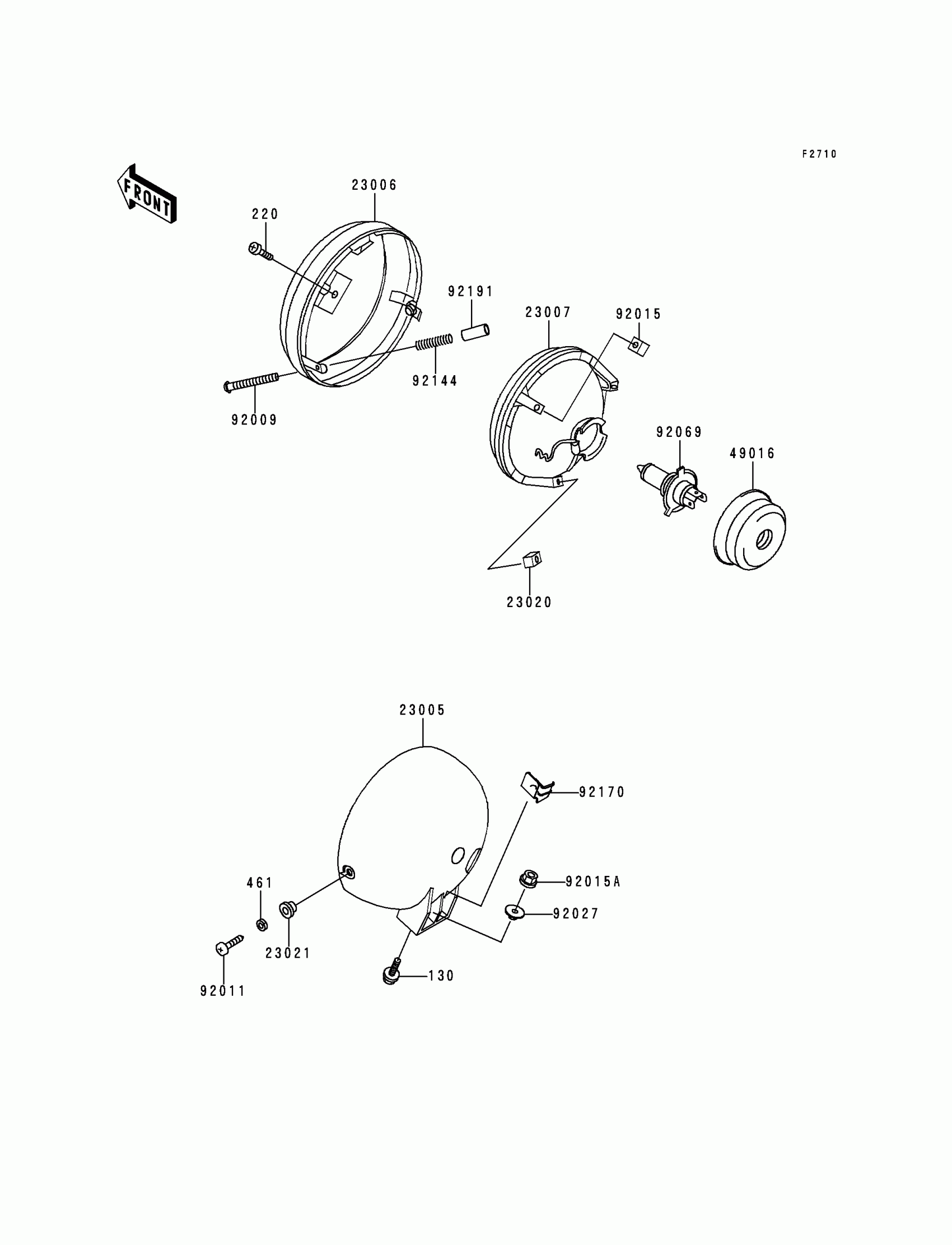

Kawasaki Vulcan 500 LTD Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130V0620

Unavailable

220

SCREW-PAN-CROS,5X12

220D0512

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable

23005

BODY-COMP-HEAD LAMP

23005-1149

$130.74

23006

RIM-LAMP

23006-1070

$87.41

23007

LENS-COMP,HEAD LAMP

23007-1169

$156.62

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23021

WASHER

23021-010

$3.29

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1129

$9.69

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

$4.95

92011

SCREW,5MM

92011-024

$1.82

92015

NUT,5MM

92015-1157

$4.32

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92027

COLLAR,L=6.5

92027-252

$4.61

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92144

SPRING,FOCUS ADJUST

92144-1149

$7.98

92170

CLAMP,HARNESS

92170-1624

$5.07

92191

TUBE,3.5X5.5X19

92191-1217

$2.02
