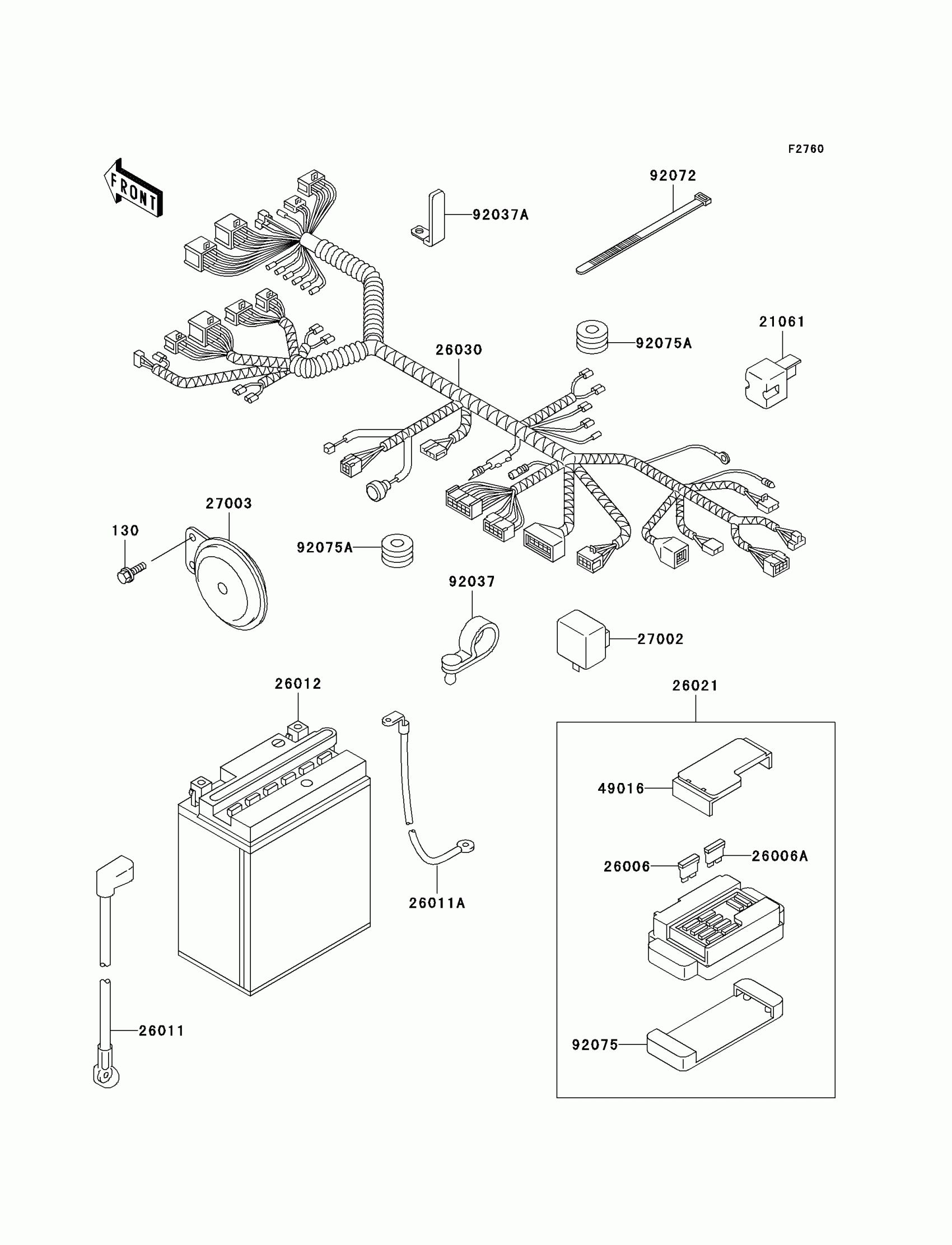

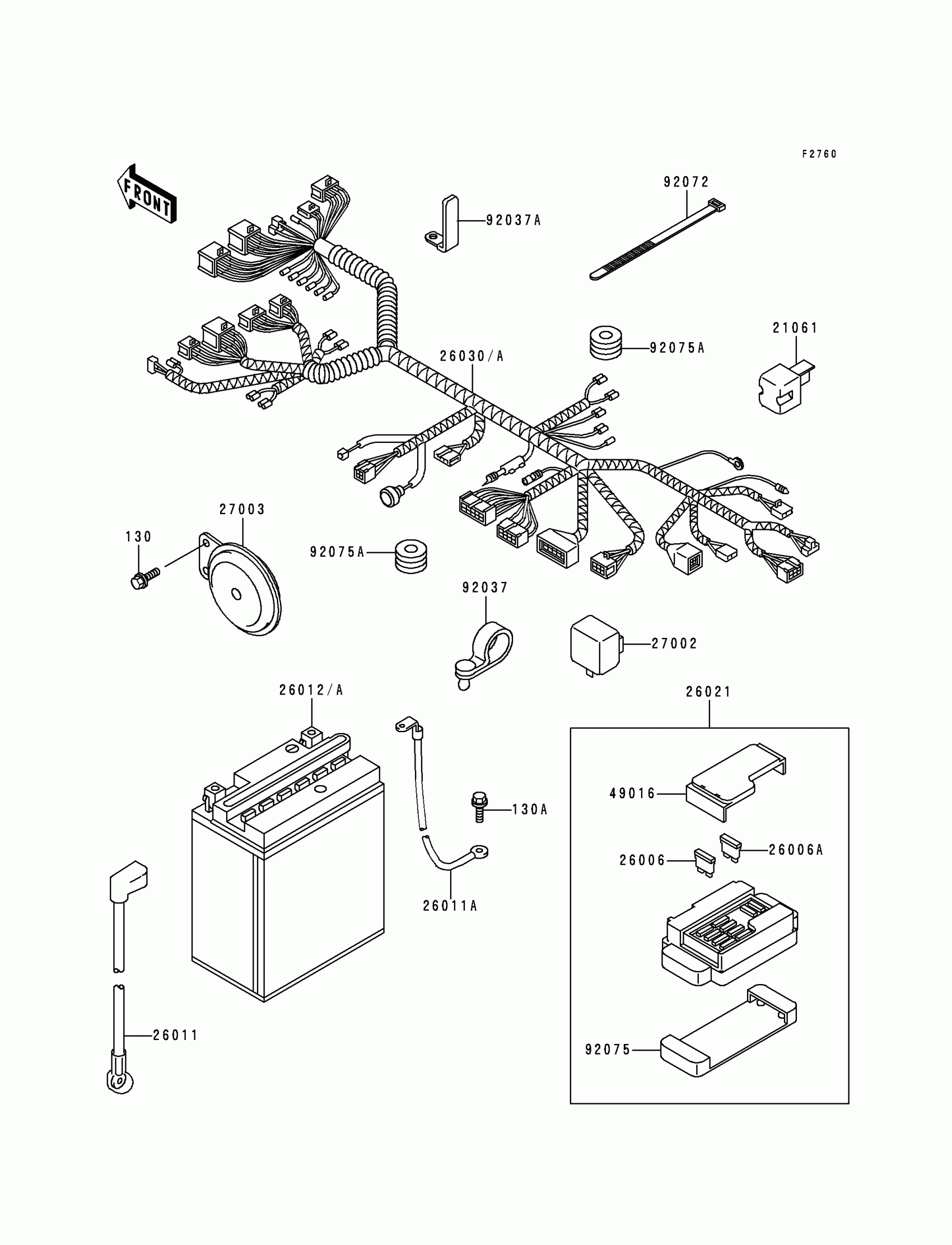

Kawasaki Vulcan 500 LTD Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1642

$40.39

26011A

WIRE-LEAD,BATTERY(-)

26011-1643

$40.39

26012A

BATTERY,YB12AL-A2,12V 12AH

26012-1342

Unavailable

26021

JUNCTION BOX

26021-1089

Unavailable

26030A

HARNESS,MAIN

26030-1730

$385.48

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN

27003-1392

$85.47

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP

92037-1679

$4.18

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92075A

DAMPER

92075-294

$3.68
