1994 Kawasaki Vulcan 500 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

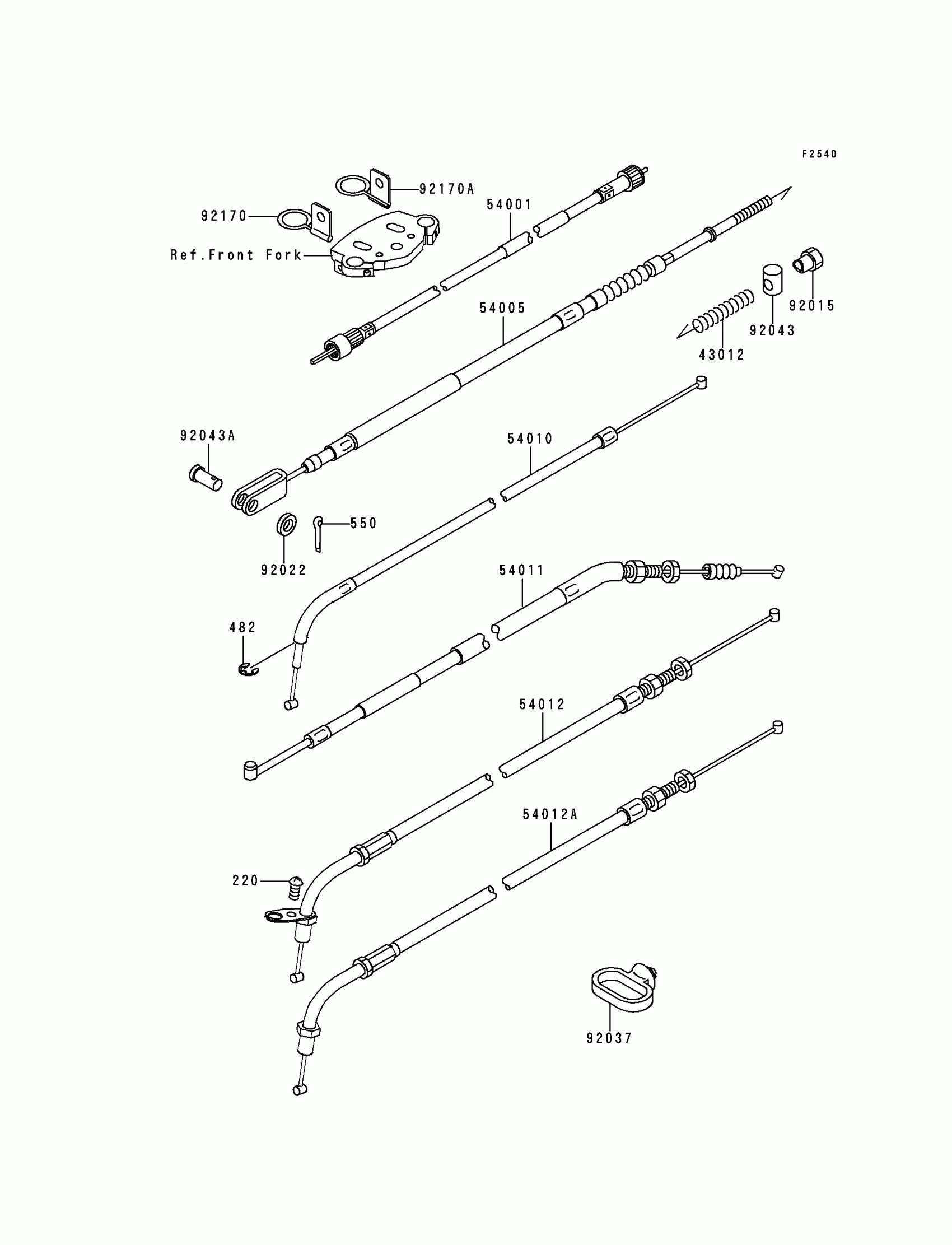

1994 Kawasaki Vulcan 500 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock

482

1

$1.20

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

43012

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

54001

CABLE-SPEEDOMETER

54001-1113

1
Out of stock

54005

CABLE-BRAKE

54005-1165

1

$59.80

In stock

54010

CABLE,SEAT LOCK

54010-1080

1

$38.48

In stock

54011

CABLE-CLUTCH

54011-1298

1

$40.34

In stock

54012

1

$41.60

In stock

54012A

1

$36.20

In stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92037

CLAMP,CABLE

92037-1459

1

$20.18

In stock

92043

PIN,BRAKE ROD

92043-065

1

$4.42

In stock

92043A

PIN,8X16

92043-1013

1
Out of stock

92170

CLAMP,CABLE,LH

92170-1162

1
Out of stock

92170A

CLAMP,CABLE,RH

92170-1163

1
Out of stock
