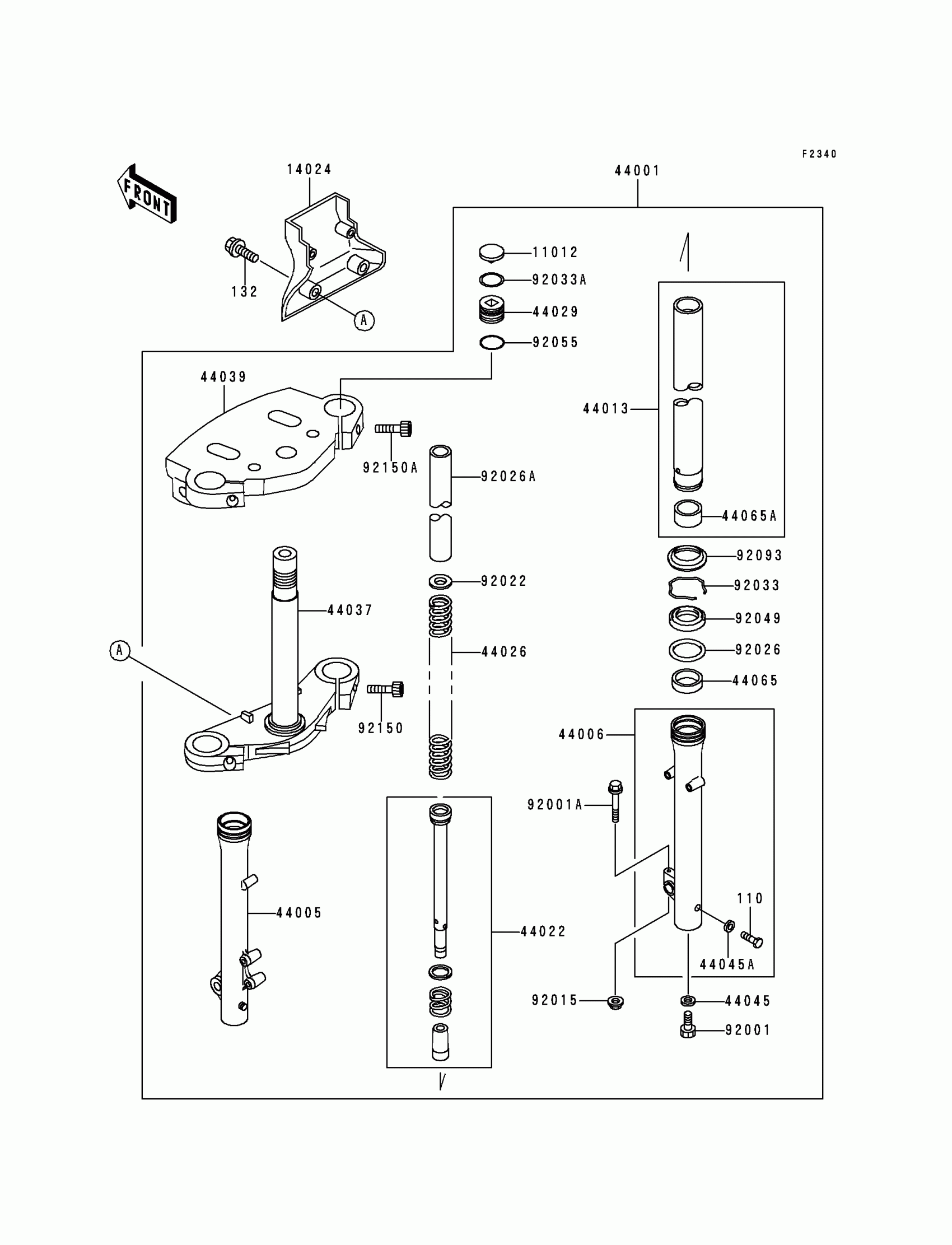

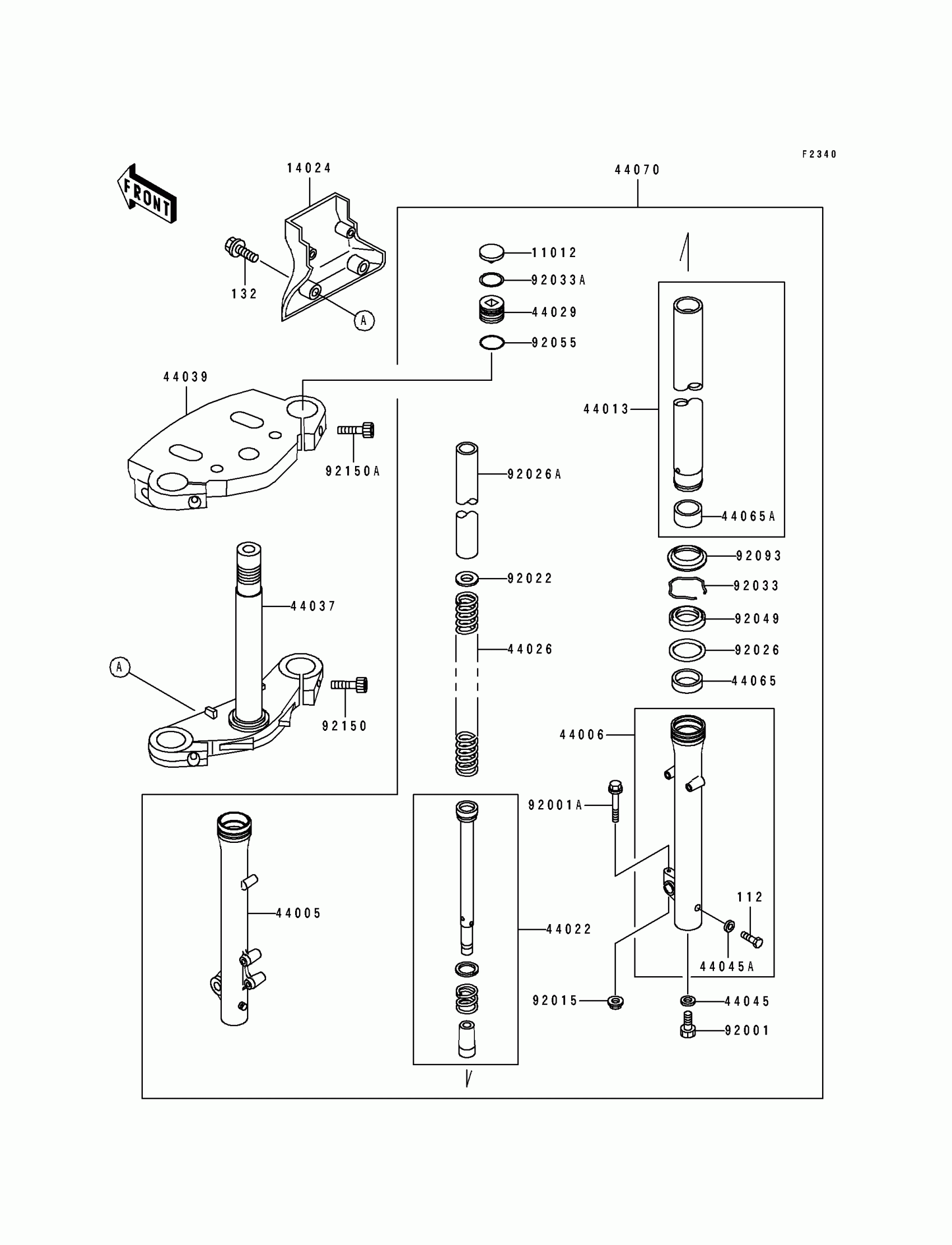

Find the part on the Front Fork diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

110

BOLT HEX HEAD 6X8

110B0608

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

11012

CAP,FORK TOP

11012-1689

1

$33.48

In stock

14024

COVER

14024-1900

1
Out of stock

44001

FORK-FRONT

44001-1752

1

$1,595.29

In stock

44005

PIPE-LEFT FORK OUTER

44005-1230

1
Out of stock

44006

1

$352.59

In stock

44013

PIPE-FORK INNER

44013-1286

1
Out of stock

44022

CYLINDER-FORK

44022-1178

1
Out of stock

44026

SPRING-FRONT FORK

44026-1464

1
Out of stock

44029

SEAT-FORK SPRING

44029-1124

1

$42.24

In stock

44037

HOLDER-FORK UNDER

44037-1265

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1198

1

$227.16

In stock

44045

1

$4.88

In stock

44045A

GASKET,DRAIN PLUG

44045-052

1

$7.42

In stock

44065

BUSHING-FRONT FORK

44065-1068

1

$22.97

In stock

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1069

1
Out of stock

92001

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92001A

BOLT,FLANGED,8X50

92001-1486

1

$9.11

In stock

92015

NUT,FLANGED,8MM

92015-1055

1
Out of stock

92022

WASHER

92022-1702

1

$5.05

In stock

92026

SPACER,FORK

92026-1038

1

$9.88

In stock

92026A

SPACER

92026-1392

1
Out of stock

92033

RING-SNAP,FORK

92033-1193

1

$5.01

In stock

92033A

RING-SNAP,FORK TOP

92033-1220

1

$8.97

In stock

92049

SEAL-OIL,FORK

92049-1226

1
Out of stock

92055

1

$9.05

In stock

92093

SEAL,FORK

92093-1196

1

$22.97

In stock

92150

BOLT,SOCKET,10X25

92150-1387

1

$4.85

In stock

92150A

BOLT,SOCKET,8X30

92150-1407

1

$2.29

In stock
