1994 Kawasaki Vulcan 500 Front Master Cylinder Diagram

← All diagrams

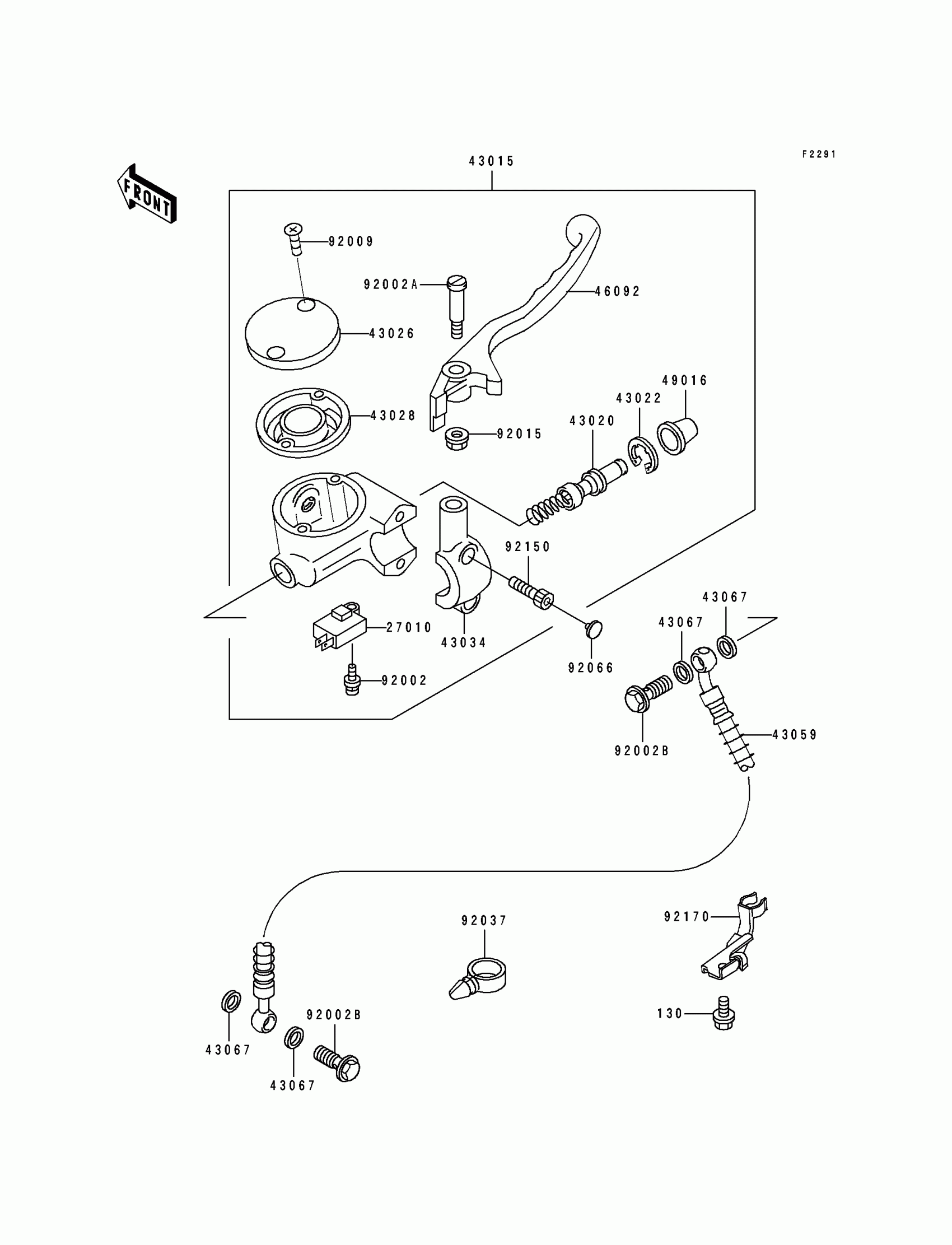

Find the part on the Front Master Cylinder diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130D0610

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015A

1

$466.60

In stock

43020A

PISTON-COMP-BRAKE

43020-1098

1

$52.23

In stock

43022

1

$3.69

In stock

43026A

CAP-BRAKE,SILVER

43026-1078

1

$65.13

In stock

43028

1

$22.44

In stock

43034

HOLDER-BRAKE,SILVER

43034-1102

1

$48.08

In stock

43059

HOSE-BRAKE,FR

43059-1565

1

$124.00

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

46092A

1

$32.95

In stock

49016

1

$6.90

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT,LEVER SET

92002-1561

1
Out of stock

92002B

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,5MM

92009-1440

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92066

PLUG

92066-1301

1

$4.83

In stock

92150

BOLT,SOCKET,6MM

92150-1025

1

$7.56

In stock

92170

CLAMP,HOSE

92170-1157

1

$12.88

In stock
