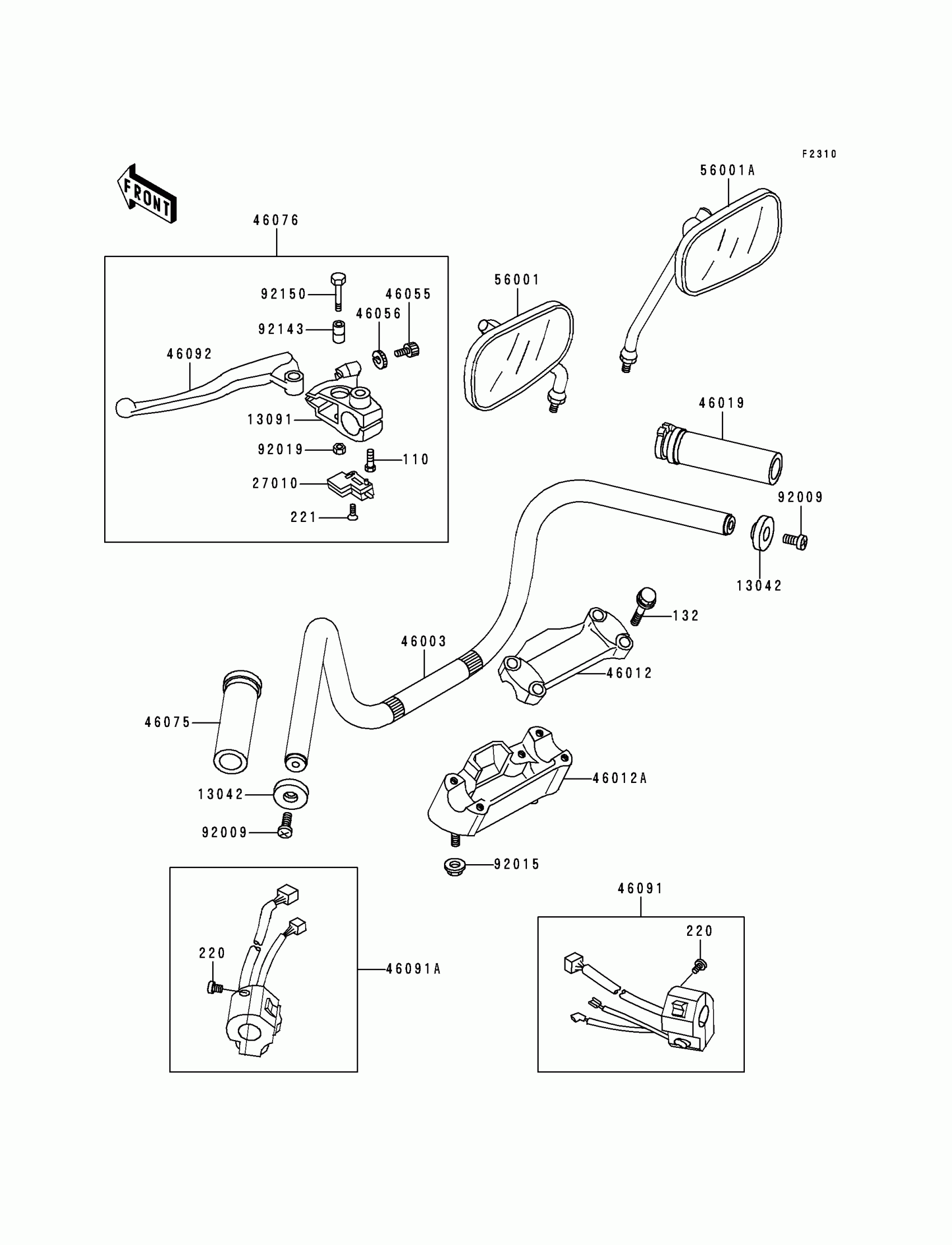

Kawasaki Vulcan 500 Handlebar Diagram

#

Description
Price

110

BOLT,6X20

110G0620

Unavailable

132

BOLT-FLANGED-SMALL,8X35

132E0835

$4.18

220

SCREW-PAN-CROS,5X16

220E0516

$3.68

221

SCREW-CSK-CROS,3X20

221B0320

$4.66

13042

WEIGHT,HANDLE

13042-1068

$36.05

13091

HOLDER,CLUTCH LEVER,SILVER

13091-1671

$60.25

27010

SWITCH,CLUTCH

27010-1268

$25.31

46003

HANDLE

46003-1315

$153.70

46012

HOLDER-HANDLE,UPP

46012-1217

$46.73

46012A

HOLDER-HANDLE,LWR

46012-1218

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1065

$36.86

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

46075

GRIP,LH

46075-1074

$19.86

46076

LEVER-ASSY-GRIP,CLUTCH,SILVER

46076-1174

$89.65

46091

HOUSING-ASSY-CONTROL,RH

46091-1525

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1526

$236.94

46092

LEVER-GRIP,CLUTCH

46092-1164

$25.53

56001

MIRROR-ASSY,LH

56001-1407

$91.83

56001A

MIRROR-ASSY,RH

56001-1408

$91.83

92009

SCREW,8X20

92009-1484

$4.92

92015

NUT,10MM

92015-1720

$3.98

92019

NUT,LOCK,6MM

92019-008

$3.12

92143

COLLAR

92143-1351

$16.78

92150

BOLT,LEVER SET

92150-1330

$13.03
