2000 Kawasaki Vulcan Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

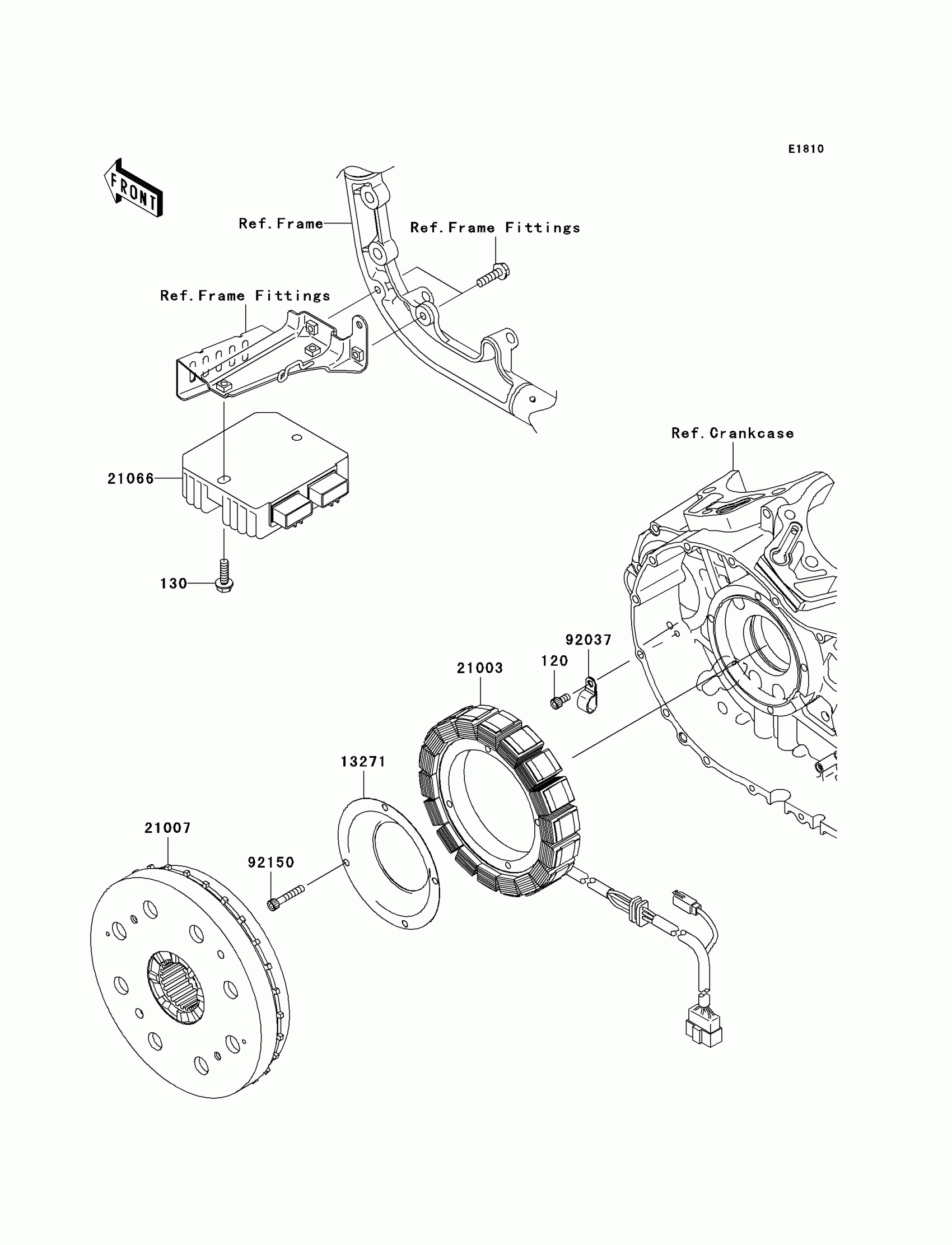

2000 Kawasaki Vulcan Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120R0612

1

$1.63

In stock

130

BOLT-FLANGED,6X22

130L0622

1
Out of stock

13271

PLATE

13271-0066

1
Out of stock

21003

STATOR

21003-0002

1

$639.86

In stock

21007

ROTOR

21007-0006

1

$1,132.44

In stock

21066

REGULATOR-VOLTAGE

21066-0001

1

$348.65

In stock

92037

CLAMP

92037-1608

1

$6.44

In stock

92150

BOLT,SOCKET,6X35

92150-1484

1

$4.93

In stock
