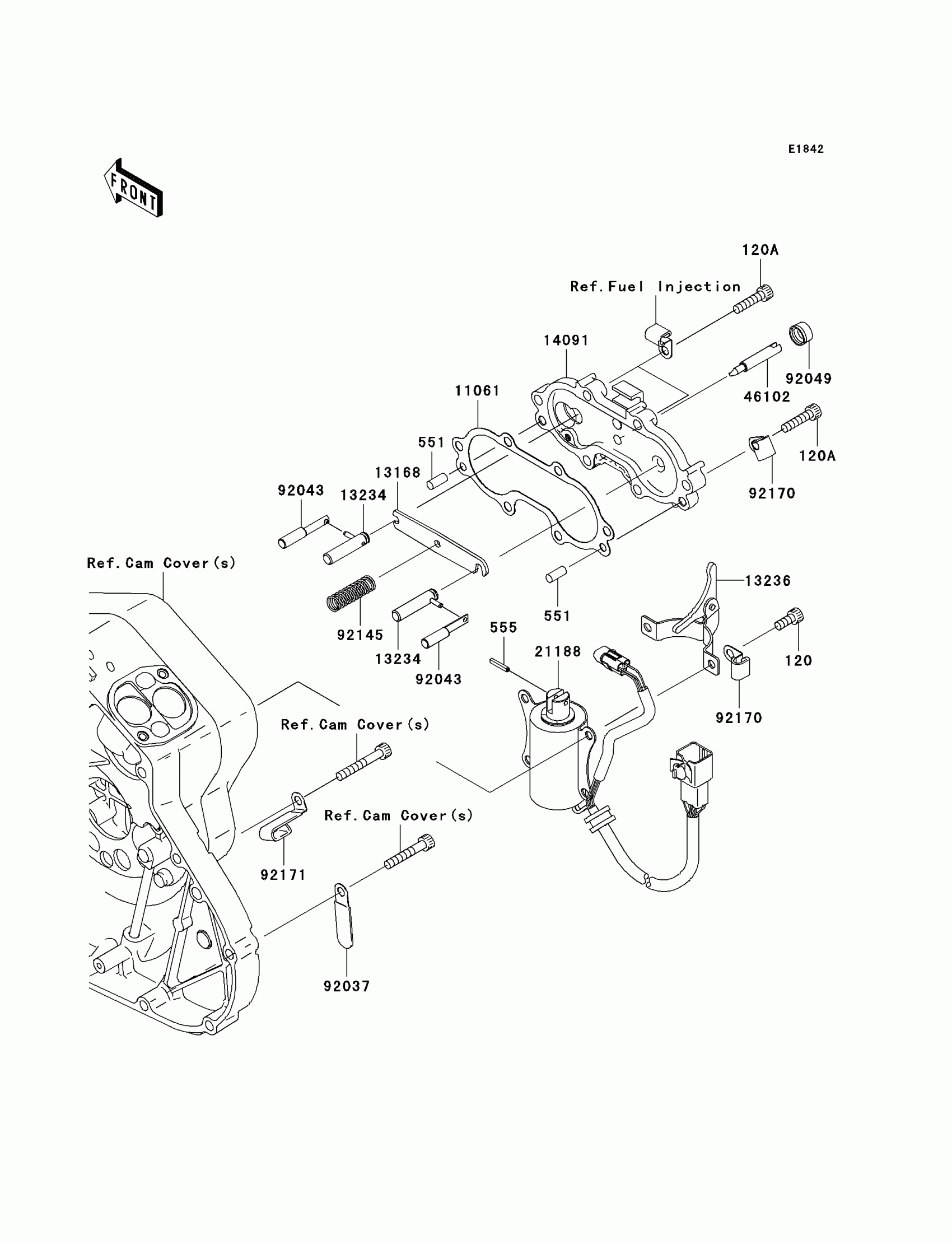

Kawasaki Vulcan 2000 Starter Solenoid Diagram

Description

Price

120

BOLT-SOCKET,6X14

120R0614

$3.31

120A

BOLT-SOCKET,6X25

120R0625

$3.75

551

PIN-DOWEL,6X14

551A0614

$3.53

555

PIN-SPRING

555B0316

$1.68

11061

GASKET

11061-0022

$8.59

13168

LEVER,JOINT

13168-0011

$7.25

13234

SHAFT-COMP

13234-0002

$14.71

13236

LEVER-COMP,SOLENOID

13236-0008

$20.83

14091

COVER

14091-0240

$104.96

21188

SOLENOID

21188-0003

$353.72

46102

ROD,PUSH

46102-0006

$25.68

92037

CLAMP,L=45

92037-1539

$4.42

92043

PIN,DECOMP

92043-0015

$11.80

92049

SEAL-OIL,RV37129.5

92049-016

$13.84

92145

SPRING,DECOMP RELEASE

92145-0037

$3.92

92170

CLAMP

92170-1804

$4.02

92171

CLAMP

92171-0322

$3.56
