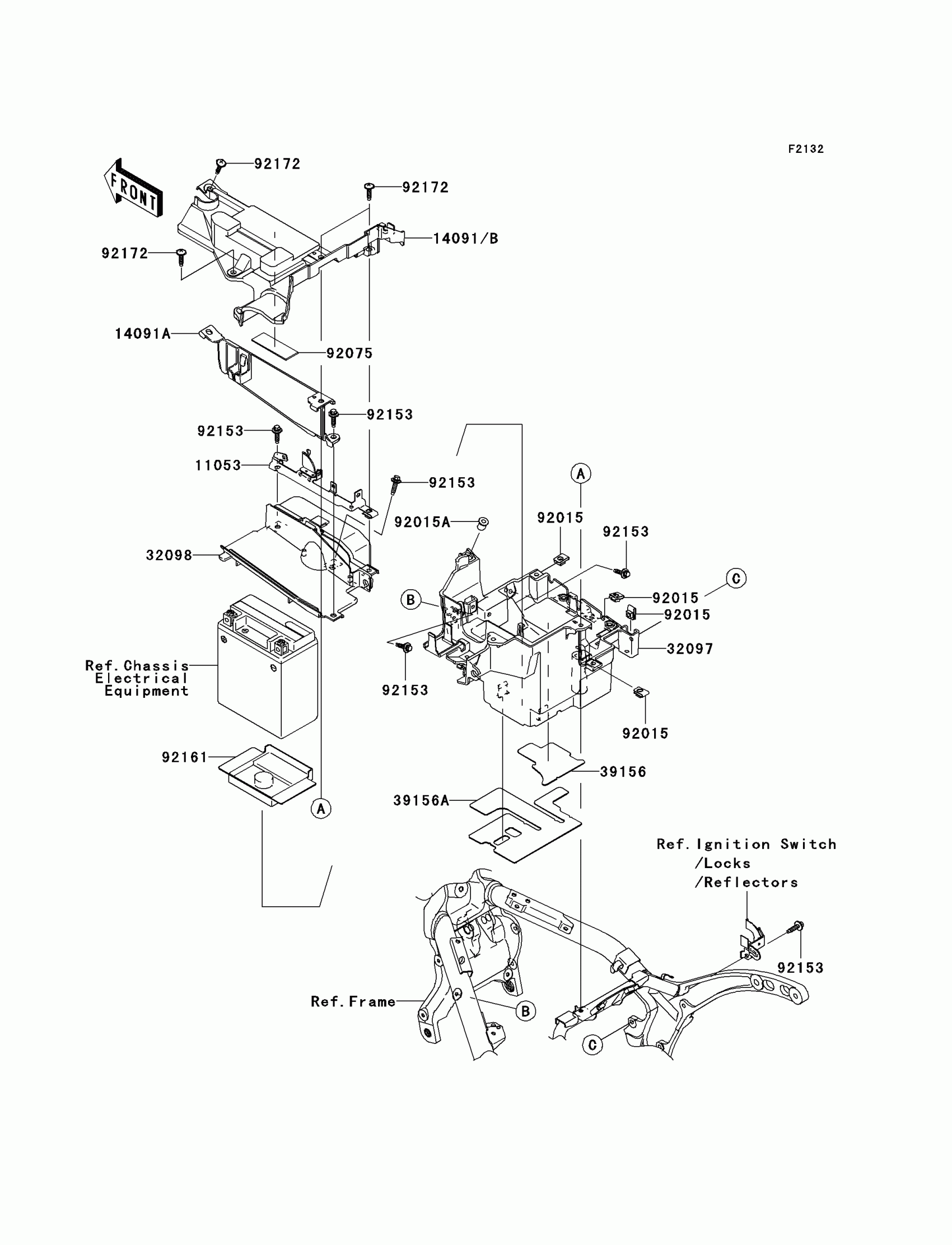

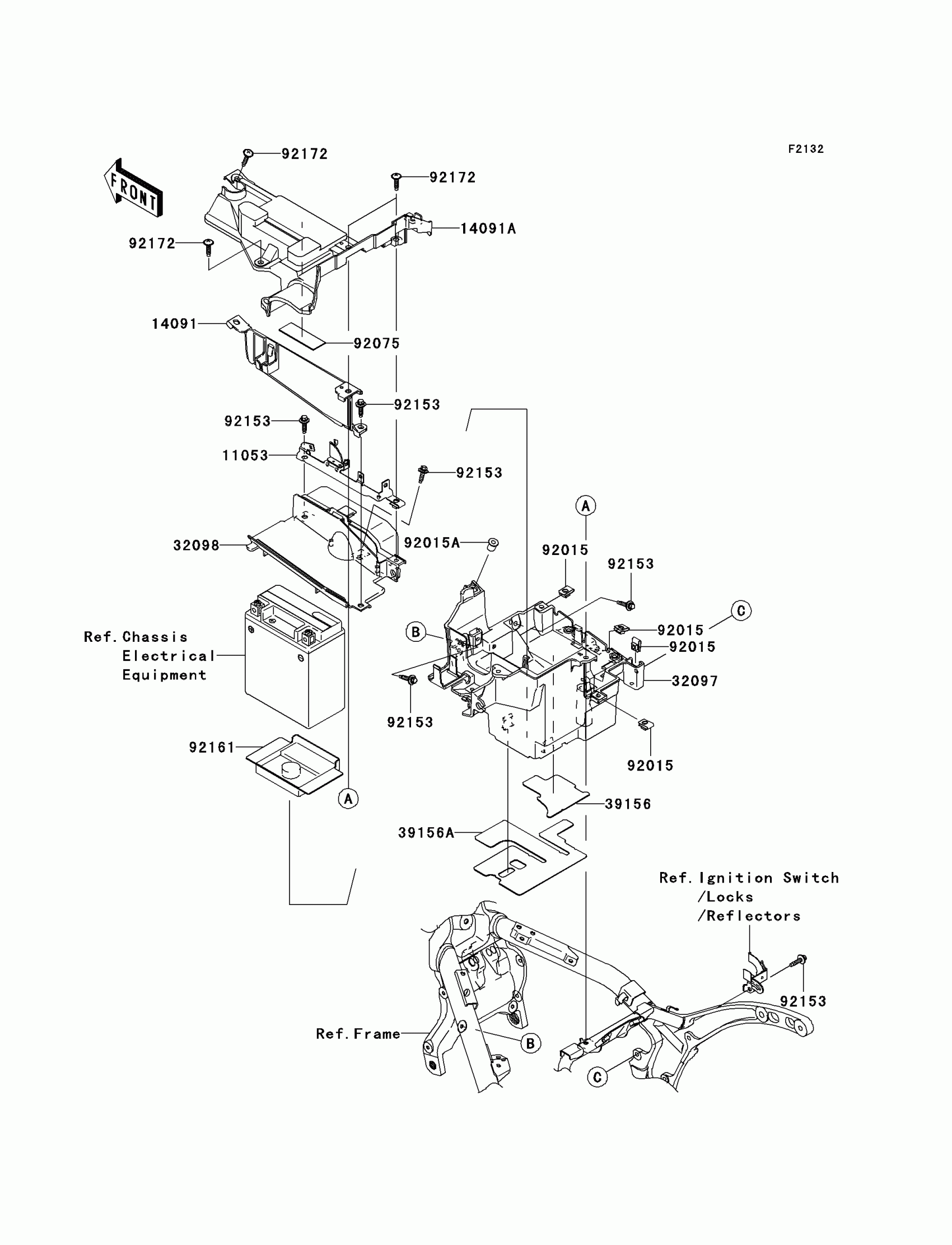

Kawasaki Vulcan 2000 Battery Case Diagram

Description

Price

11053

BRACKET,COUPLER

11053-0905

$38.61

14091A

COVER,TOOL CASE

14091-0172

$21.66

14091B

COVER,BATTERY

14091-0290

$53.35

32097

CASE-BATTERY

32097-0005

$54.11

32098

CASE-TOOL

32098-0007

$149.28

39156

PAD,BATTERY CASE

39156-0047

$8.59

39156A

PAD,BATTERY CASE

39156-0055

$24.24

92015

NUT,6MM

92015-1602

$5.61

92015A

NUT

92015-1700

$6.55

92075

DAMPER,BATTERY BAND

92075-1903

$4.92

92153

BOLT,FLANGED,6X26.5

92153-0654

$14.12

92161

DAMPER,BATTERY

92161-0114

$18.19

92172

SCREW,6X26

92172-0137

$3.57
