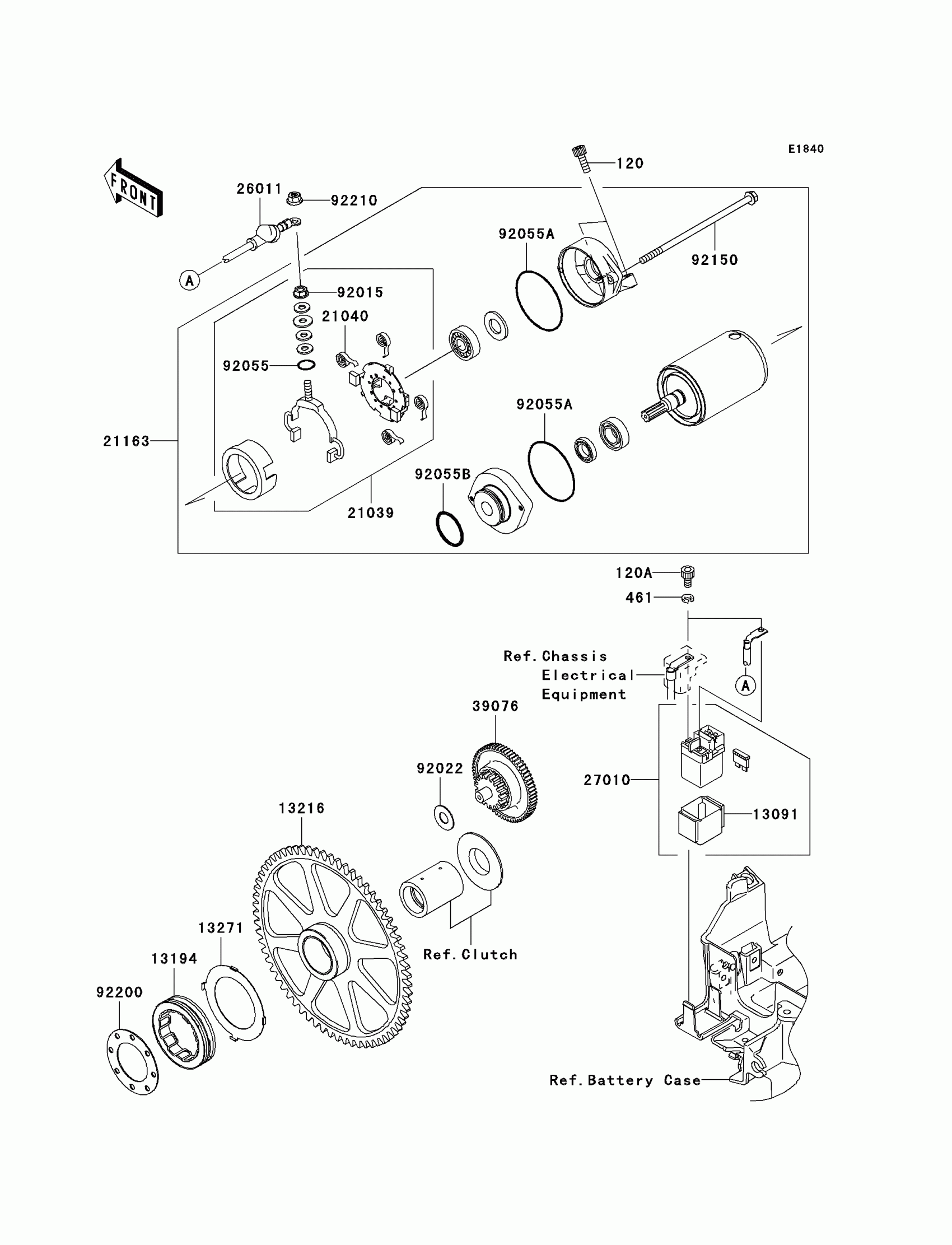

Kawasaki Vulcan 2000 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,6X22

120R0622

$2.24

120A

BOLT-SOCKET,5X10

120S0510

Unavailable

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$11.90

13194

CLUTCH-ONEWAY

13194-0001

$162.23

13216

GEAR-COMP

13216-0010

$196.67

13271

PLATE

13271-0037

$11.73

21039

BRUSH,CARBON

21039-1060

$85.95

21040

SPRING-BRUSH

21040-1055

$8.24

21163

STARTER-ELECTRIC

21163-0001

$968.43

26011

WIRE-LEAD,STARTER MOTOR

26011-0044

$65.69

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-0001

$281.25

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,12X27.5X1.0

92022-1852

$4.51

92055

RING-O,4.5X2.0

92055-1370

$4.17

92055A

RING-O,STARTER MOTOR

92055-1381

$9.58

92055B

RING-O,37MM

92055-1393

$11.41

92150

BOLT,STARTER MOTOR

92150-1913

$9.22

92200

WASHER,44X73.5X1.2

92200-0019

$5.08

92210

NUT,6MM

92210-0188

$1.81
