2000 Kawasaki Vulcan Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

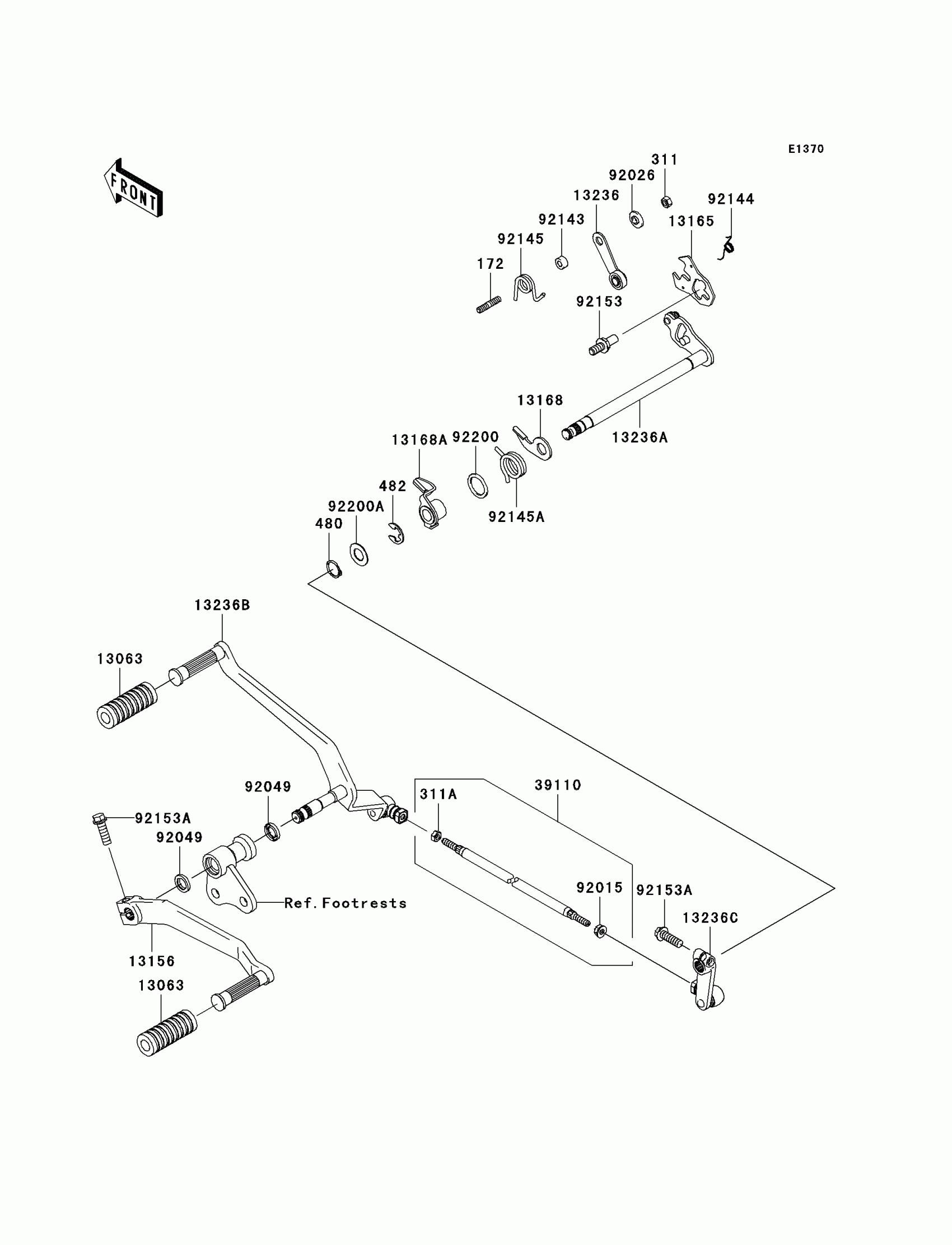

2000 Kawasaki Vulcan Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

172

BOLT-STUD,6X18

172H0618

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

311A

NUT-HEX

311L0600

1
Out of stock

480

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

482

CIRCLIP-TYPE-E,12MM

482J0200

1
Out of stock

13063

DAMPER,PEDAL

13063-002

1
Out of stock

13156

LEVER-CHANGE

13156-0007

1
Out of stock

13165

PAWL

13165-0001

1
Out of stock

13168

LEVER

13168-0009

1
Out of stock

13168A

LEVER

13168-0010

1
Out of stock

13236

LEVER-COMP,POSITION

13236-0059

1
Out of stock

13236A

LEVER-COMP

13236-0060

1
Out of stock

13236B

LEVER-COMP

13236-0071

1
Out of stock

13236C

LEVER-COMP

13236-0072

1
Out of stock

39110

ROD-ASSY-TIE

39110-0018

1
Out of stock

92015

NUT,LEFT HANDED,6MM

92015-1572

1
Out of stock

92026

SPACER

92026-1217

1
Out of stock

92049

SEAL-OIL,VB13193

92049-1398

1
Out of stock

92143

COLLAR

92143-1595

1
Out of stock

92144

SPRING

92144-1029

1
Out of stock

92145

SPRING

92145-0197

1
Out of stock

92145A

SPRING

92145-0205

1
Out of stock

92153

BOLT,RETURN SPRING

92153-0421

1
Out of stock

92153A

BOLT,8X25

92153-1268

1
Out of stock

92200

WASHER,20.5X27X1.6

92200-0018

1
Out of stock

92200A

WASHER,13.4X25X1.0

92200-0045

1
Out of stock
