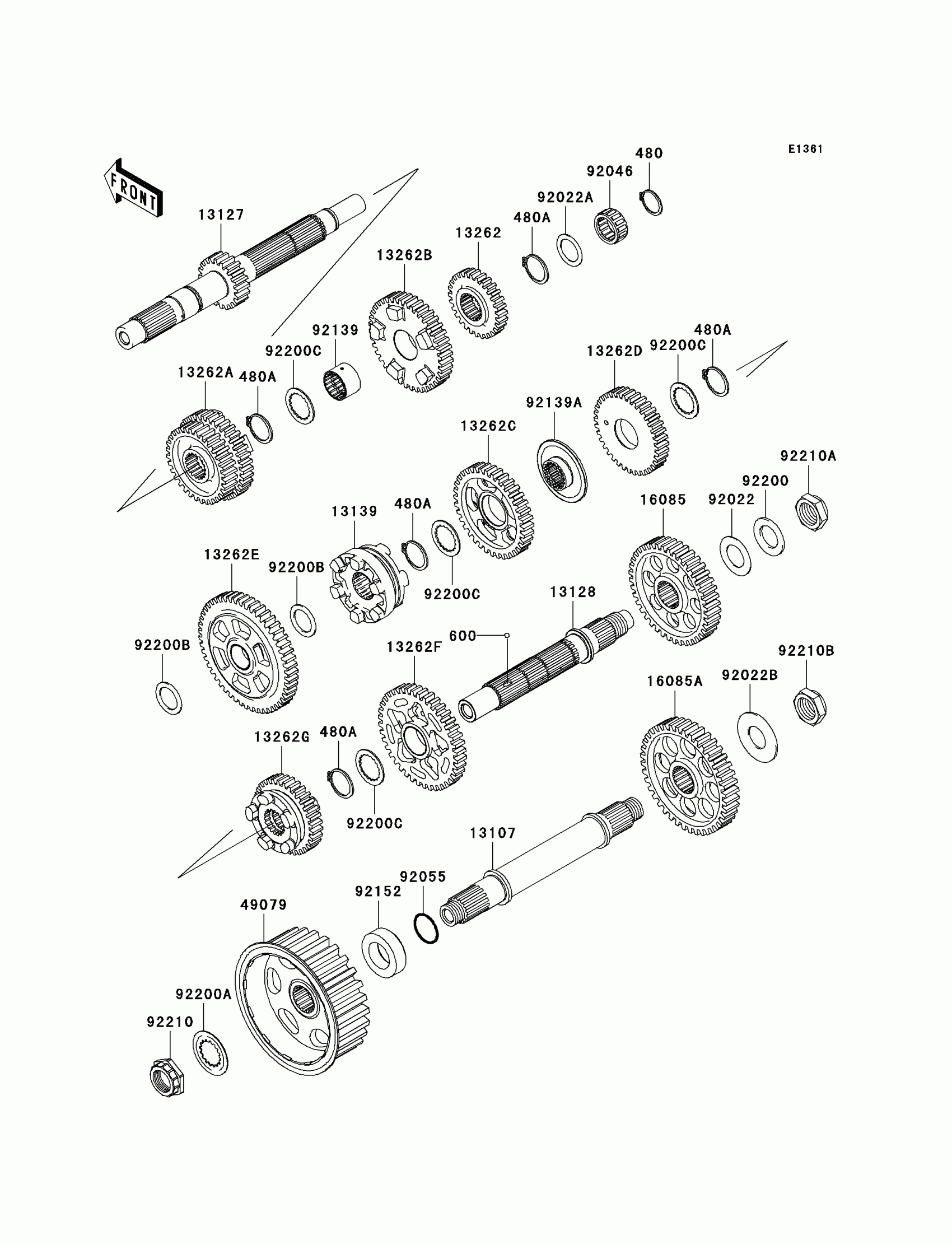

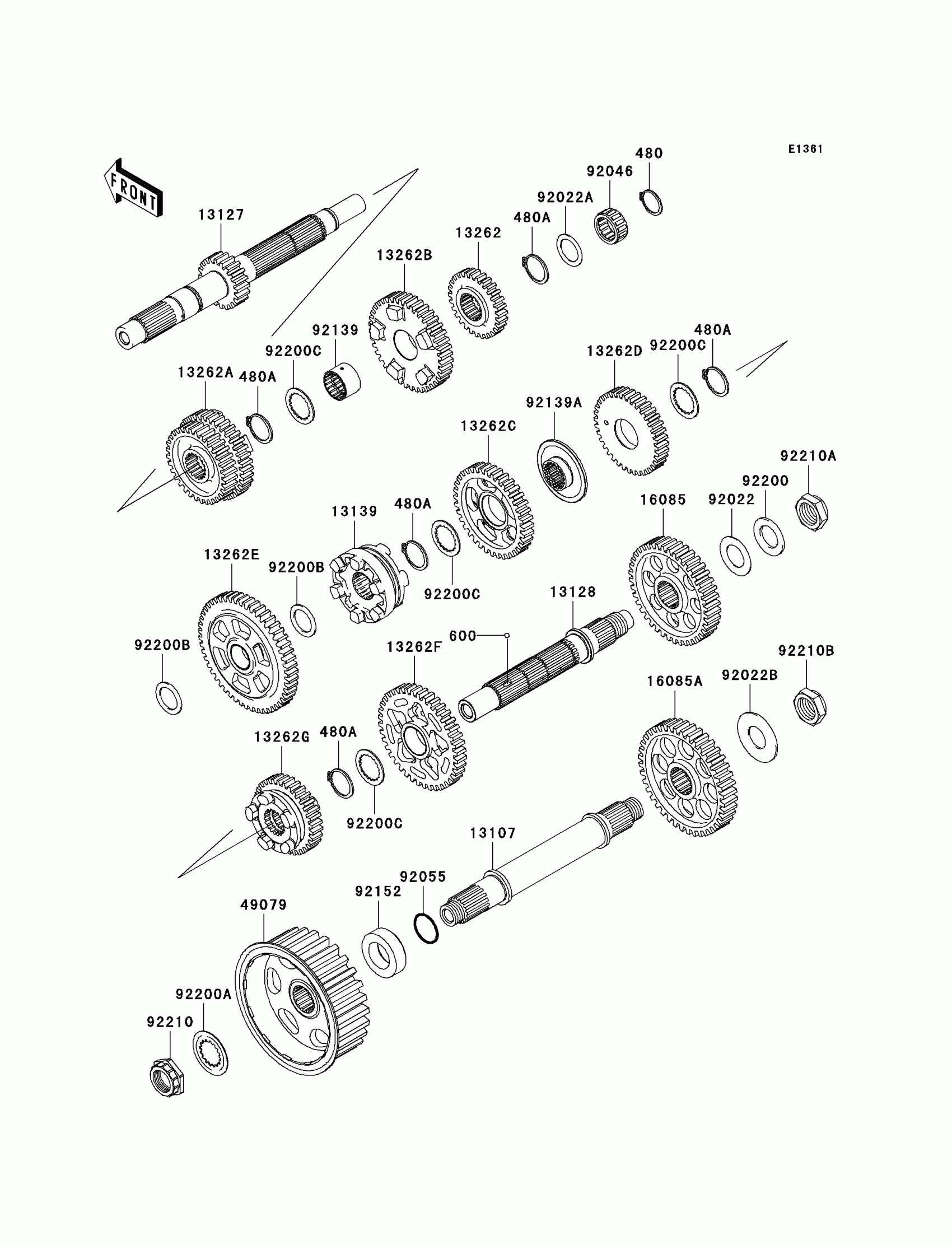

Kawasaki Vulcan 2000 Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480A

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.68

13107

SHAFT,PULLEY

13107-0066

Unavailable

13127

SHAFT-TRANSMISSION INPUT

13127-0003

$491.56

13128

SHAFT-TRANSMISSION OUTPUT

13128-0013

$518.01

13139

SHIFTER,OUTPUT

13139-0001

$142.15

13262

GEAR,INPUT 2ND,27T

13262-0004

$193.78

13262A

GEAR,INPUT 3RD&4TH,32T&33T

13262-0005

$204.59

13262B

GEAR,INPUT 5TH,37T

13262-0006

$204.59

13262C

GEAR,OUTPUT 3RD,39T

13262-0008

$204.59

13262D

GEAR,OUTPUT 4TH,31T

13262-0009

$204.59

13262E

GEAR,OUTPUT LOW,51T

13262-0010

$204.59

13262F

GEAR,OUTPUT 2ND,44T

13262-0011

$204.59

13262G

GEAR,OUTPUT 5TH,27T

13262-0012

$204.59

16085

GEAR,TRANSFER,41T

16085-0004

$193.78

16085A

GEAR,TRANSFER,50T

16085-0032

$193.78

49079

PULLEY-BELT

49079-0005

Unavailable

92022

WASHER,25.3X44X1

92022-1390

$4.32

92022A

WASHER,25.5X36X1.0

92022-1855

$9.56

92022B

WASHER,25.3X56X2.0

92022-1857

$13.51

92046

BEARING-NEEDLE,KT 253515E02 C3

92046-0007

$21.73

92055

RING-O,29.7X2.4

92055-0006

$4.65

92139

BUSHING

92139-0006

$57.90

92139A

BUSHING,OUTPUT 3RD-4TH GEAR

92139-0007

$92.48

92152

COLLAR,30X50X16

92152-0021

Unavailable

92200

WASHER,25.5X42X2.6

92200-0016

$5.08

92200A

WASHER,31X50X1

92200-0017

$3.25

92200B

WASHER,25.5X36X1.6

92200-0116

$11.32

92200C

WASHER,30.3X40X1.5

92200-1381

$12.03

92210

NUT,25MM

92210-0060

Unavailable

92210A

NUT,LEFT HANDED,25MM

92210-0136

$5.61

92210B

NUT,25MM

92210-0138

$5.08
