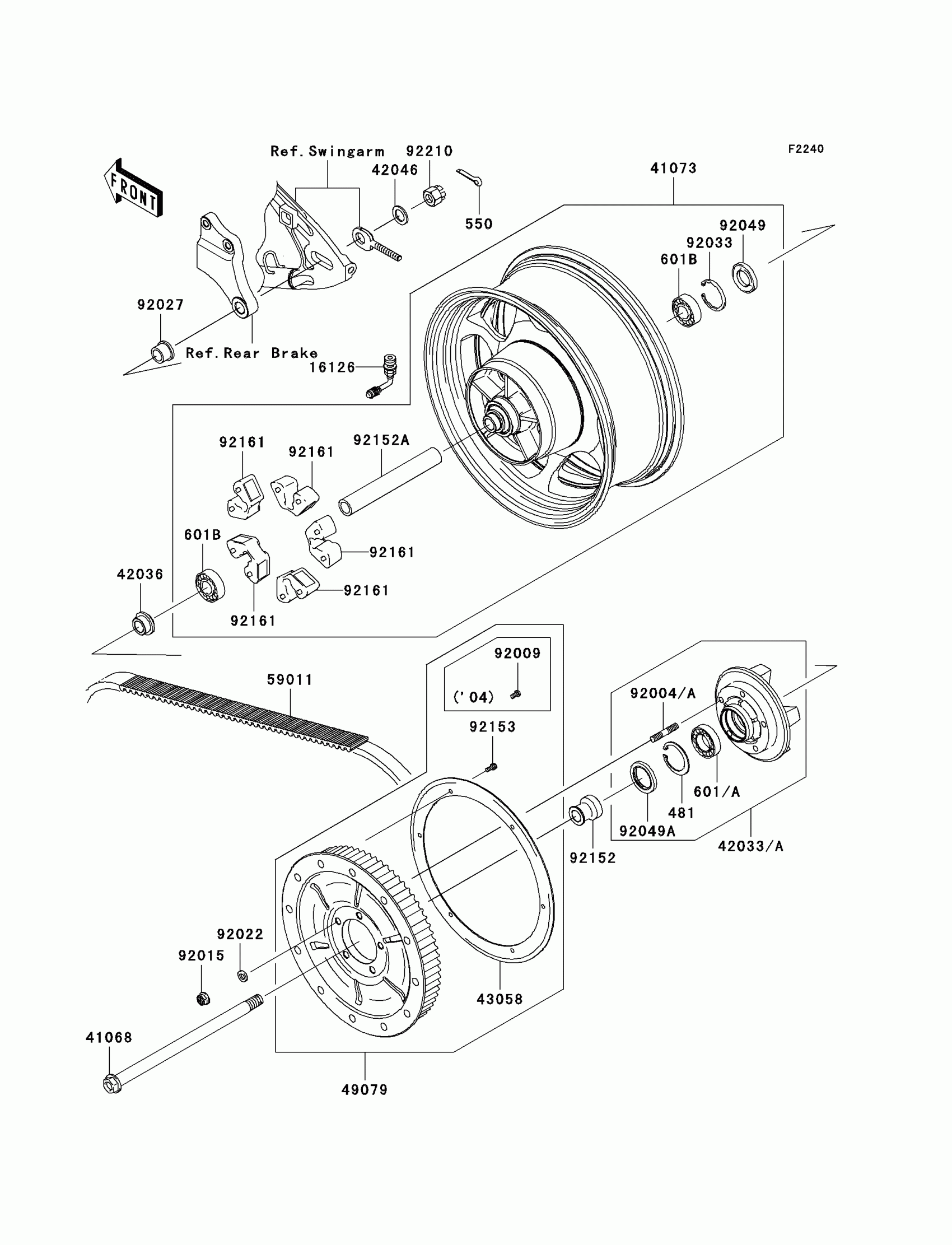

Kawasaki Vulcan 2000 Rear Wheel/Chain Diagram

#

Description
Price

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601A

BEARING-BALL

601B6006UU

$36.21

601B

BEARING-BALL,#6304UUC3

601B6304UU

$30.87

16126

VALVE

16126-1365

$20.69

41068

AXLE,RR

41068-0007

$128.45

41073

WHEEL-ASSY,RR

41073-0005

$1,176.50

42033A

COUPLING-ASSY,RR HUB

42033-0017

Unavailable

42036

SLEEVE,RR HUB COUPLING,L=22

42036-1366

$21.36

42046

WASHER,21X33X2.6

42046-003

$3.85

43058

RING,REAR PULLEY

43058-0004

$76.95

49079

PULLEY-BELT,P.SILVER

49079-0004-458

$728.06

59011

BELT,DRIVE,133T

59011-0004

$655.97

92004A

STUD,10X35

92004-0016

$5.59

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92022

WASHER,10.5X19X3.2

92022-1820

$3.85

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92049A

SEAL-OIL,PJN40556

92049-1263

$16.81

92152

COLLAR,RR AXLE,LH,L=41

92152-0050

Unavailable

92152A

COLLAR,RR HUB,L=210

92152-0051

Unavailable

92153

BOLT,SOCKET,6X12

92153-0827

$3.49

92161

DAMPER,SHOCK,RR HUB

92161-0043

$29.62

92210

NUT,CASTLE,18MM

92210-1134

$7.49
