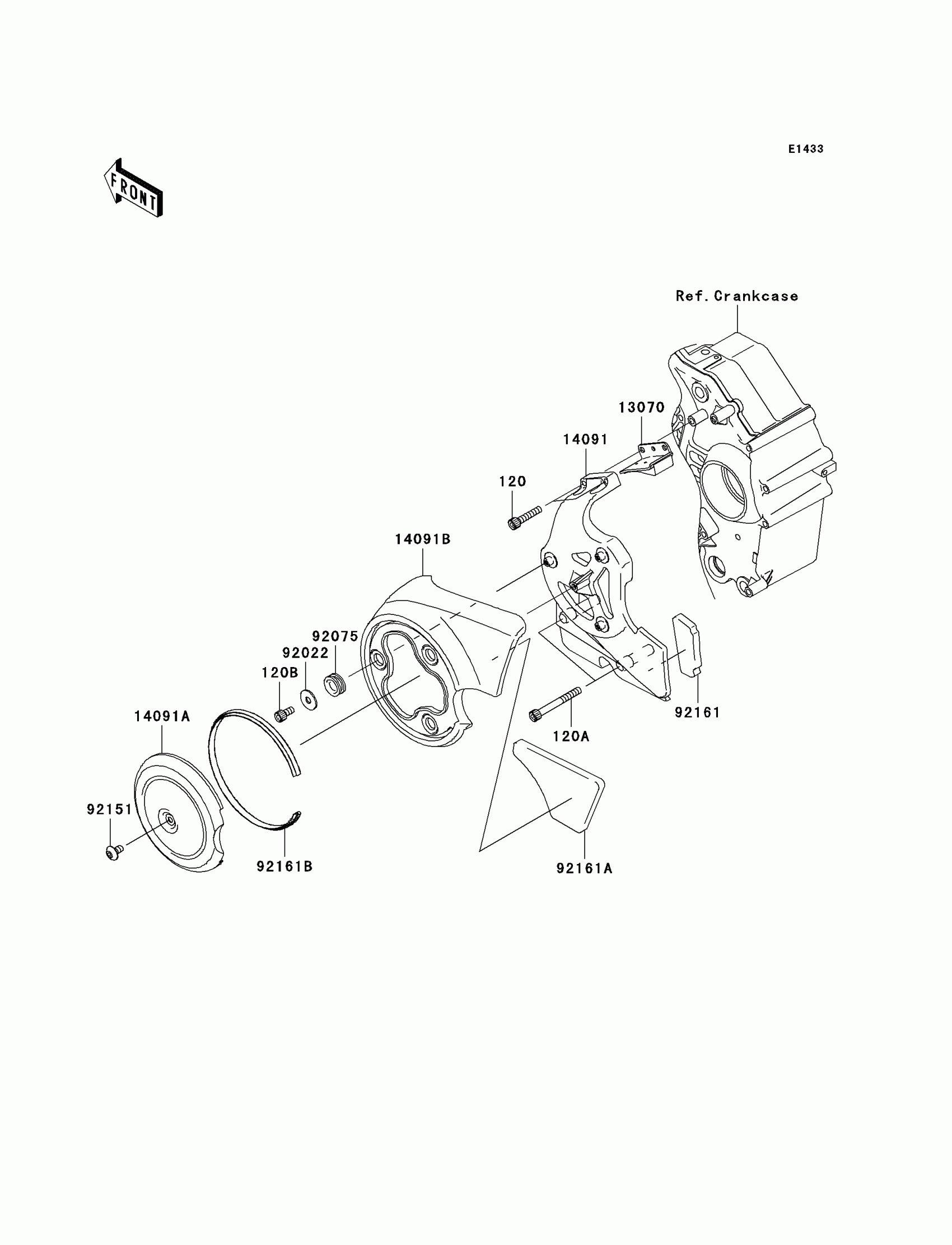

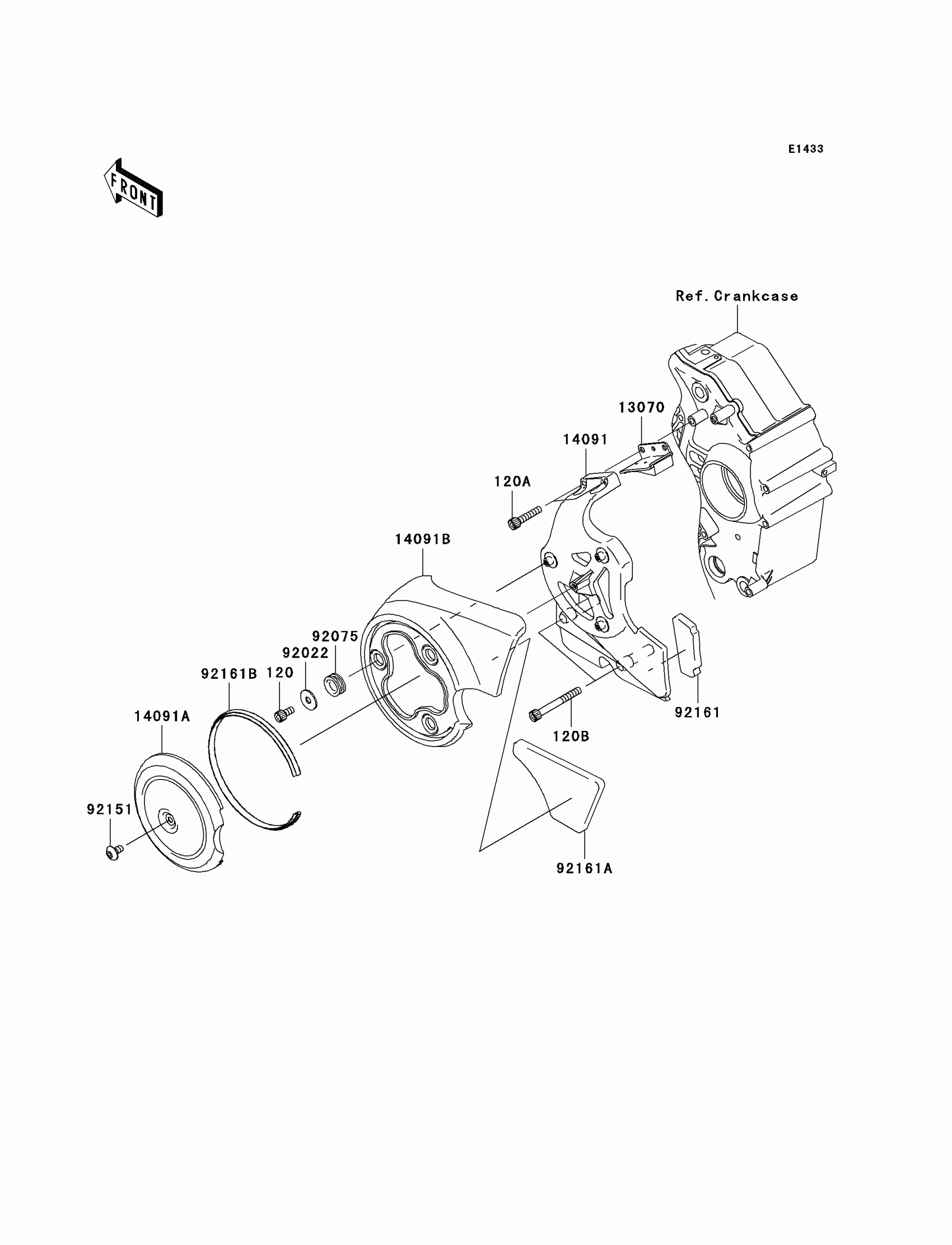

Kawasaki Vulcan 2000 Chain Cover Diagram

Description

Price

120

BOLT-SOCKET,6X12

120R0612

$1.63

120A

BOLT-SOCKET,6X30

120W0630

Unavailable

120B

BOLT-SOCKET,6X55

120W0655

Unavailable

13070

GUIDE,BELT

13070-0039

$43.63

14091

COVER,PULLEY,INSIDE

14091-0040

$272.65

14091A

COVER,PULLEY,OUTSIDE

14091-0042

$103.41

14091B

COVER,PULLEY MIDDLE

14091-0247

$149.82

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92075

DAMPER

92075-1634

$3.57

92151

BOLT,SOCKET,6X12

92151-1940

$2.84

92161

DAMPER

92161-0098

$3.95

92161A

DAMPER

92161-0099

$6.78

92161B

DAMPER

92161-0136

$11.44
