2000 Kawasaki Vulcan Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

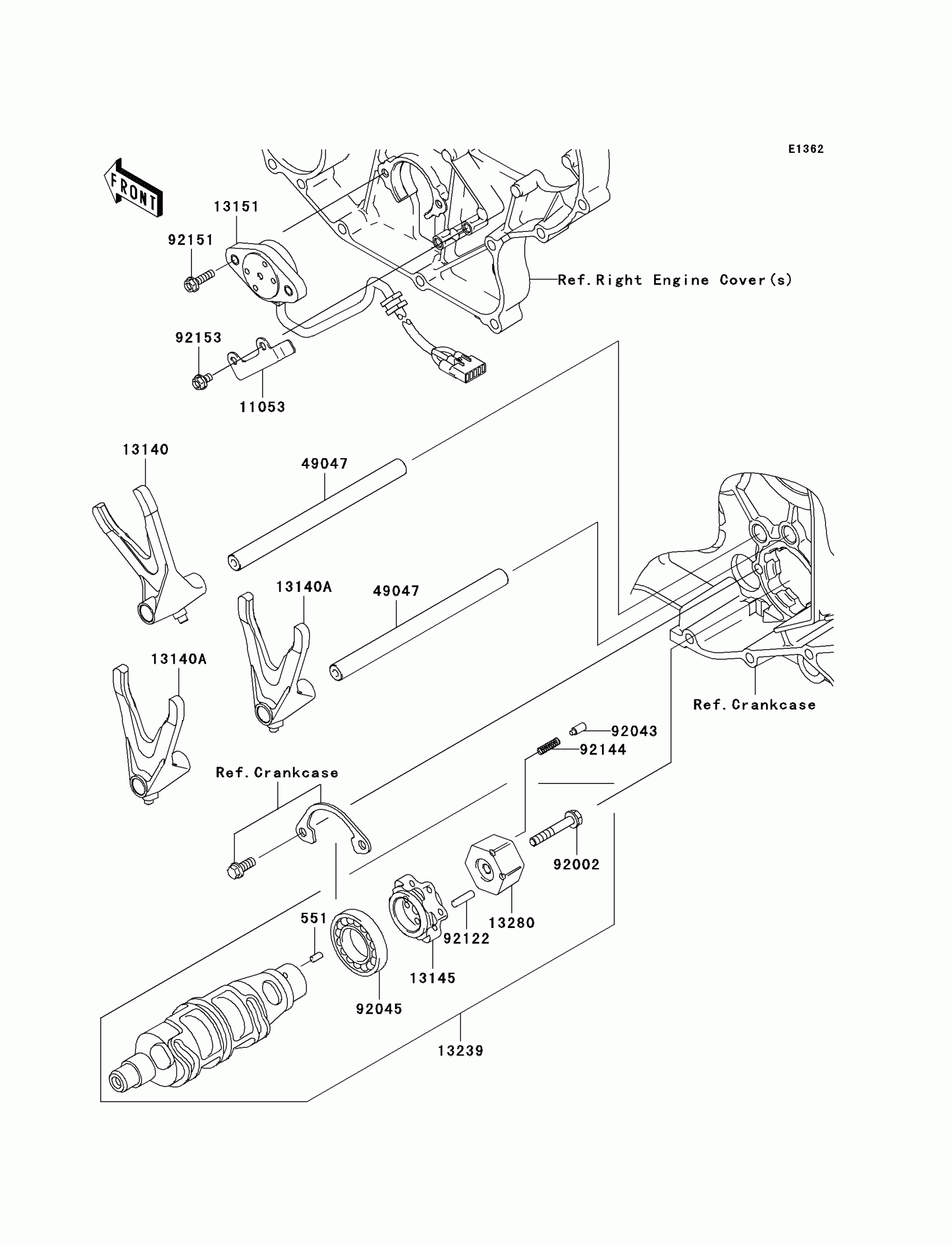

2000 Kawasaki Vulcan Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock

11053

BRACKET,SENSOR WIRE

11053-0506

1

$4.61

In stock

13140

FORK-SHIFT,INPUT

13140-0001

1

$127.76

In stock

13140A

FORK-SHIFT,OUTPUT

13140-0002

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0001

1

$71.38

In stock

13151

SWITCH-COMP,GEAR POSITION

13151-0013

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0001

1
Out of stock

13280

HOLDER

13280-0006

1

$40.05

In stock

49047

ROD-SHIFT

49047-0002

1

$24.24

In stock

92002

BOLT,6X38

92002-1431

1

$4.85

In stock

92043

PIN

92043-0085

1

$7.66

In stock

92045

BEARING-BALL,16005

92045-1045

1

$28.80

In stock

92122

ROLLER,4.5X17.8

92122-0001

1

$5.39

In stock

92144

SPRING

92144-1245

1

$3.39

In stock

92151

BOLT

92151-1776

1

$1.95

In stock

92153

BOLT,5X10

92153-0687

1
Out of stock
