2000 Kawasaki Vulcan Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

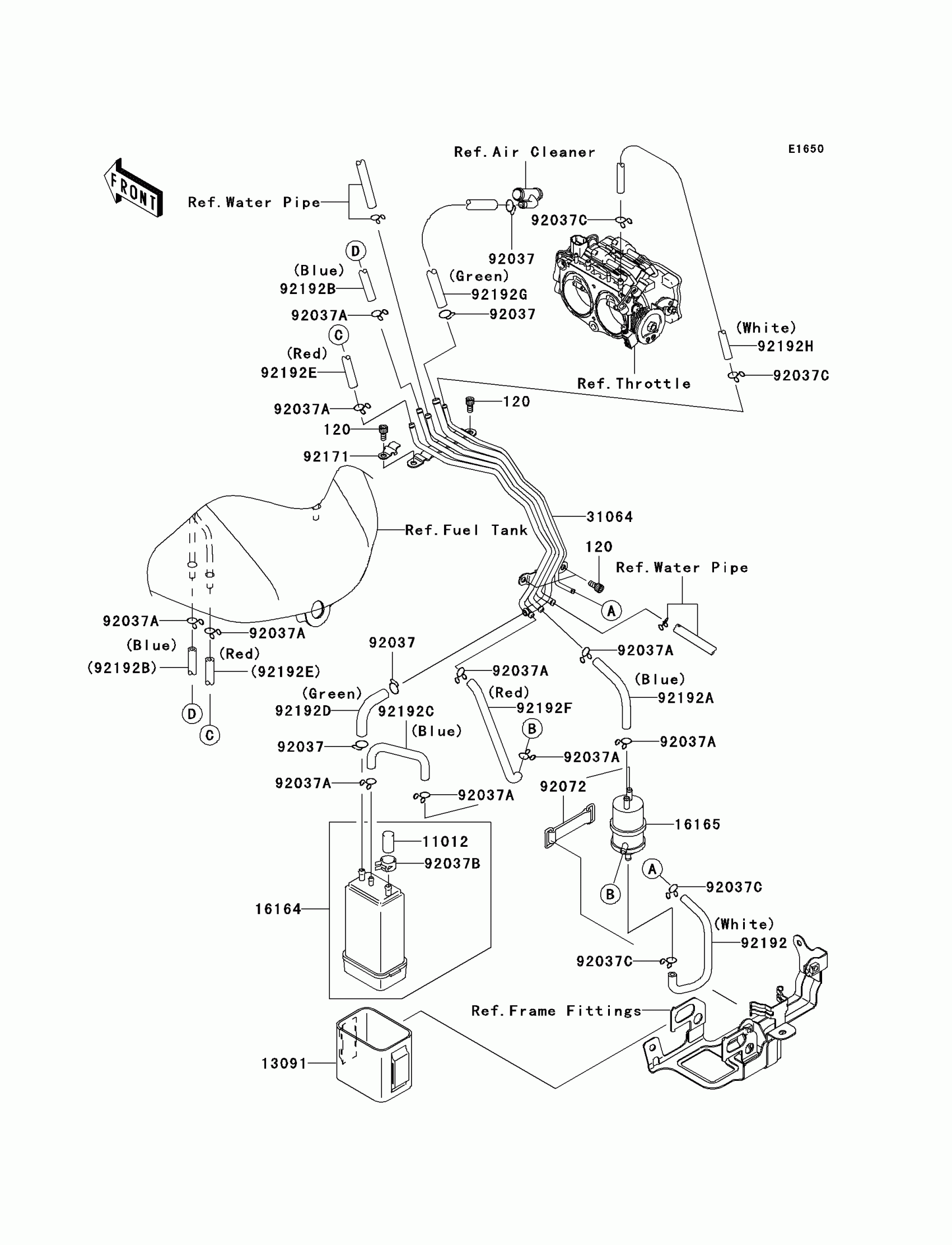

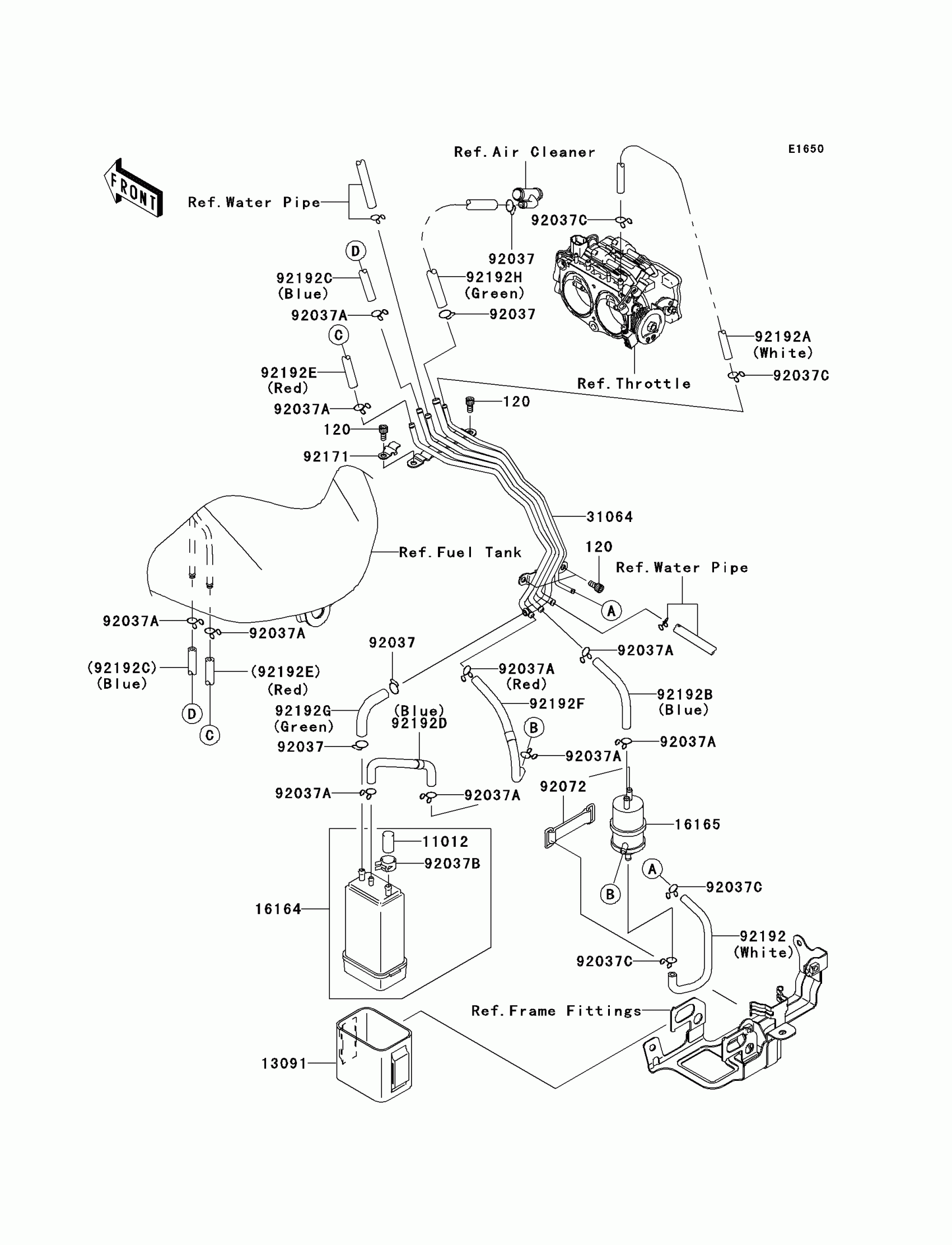

2000 Kawasaki Vulcan Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120W0612

1
Out of stock

11012

CAP,CANISTER

11012-1388

1
Out of stock

13091

HOLDER,CANISTER

13091-1308

1
Out of stock

16164

CANISTER

16164-1054

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

31064

PIPE-COMP

31064-0010

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,CANISTER

92037-1512

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=50

92072-1419

1
Out of stock

92171

CLAMP

92171-0209

1
Out of stock

92192

TUBE,SEPARATOR-PIPE,WHITE

92192-0013

1
Out of stock

92192A

TUBE,SEPARATOR-PIPE,BLUE

92192-0014

1
Out of stock

92192B

TUBE,BLUE

92192-0037

1
Out of stock

92192C

TUBE,CANISTER-SEPARATOR,BLUE

92192-0061

1
Out of stock

92192D

TUBE,CANISTER-PIPE,GREEN

92192-0107

1
Out of stock

92192E

TUBE,TANK-PIPE,RED

92192-0112

1
Out of stock

92192F

TUBE,SEPARATOR-PIPE,RED

92192-0113

1
Out of stock

92192G

TUBE,7X12X430,GREEN

92192-0114

1
Out of stock

92192H

TUBE,4X9X510,WHITE

92192-0121

1
Out of stock
