2000 Kawasaki Vulcan AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

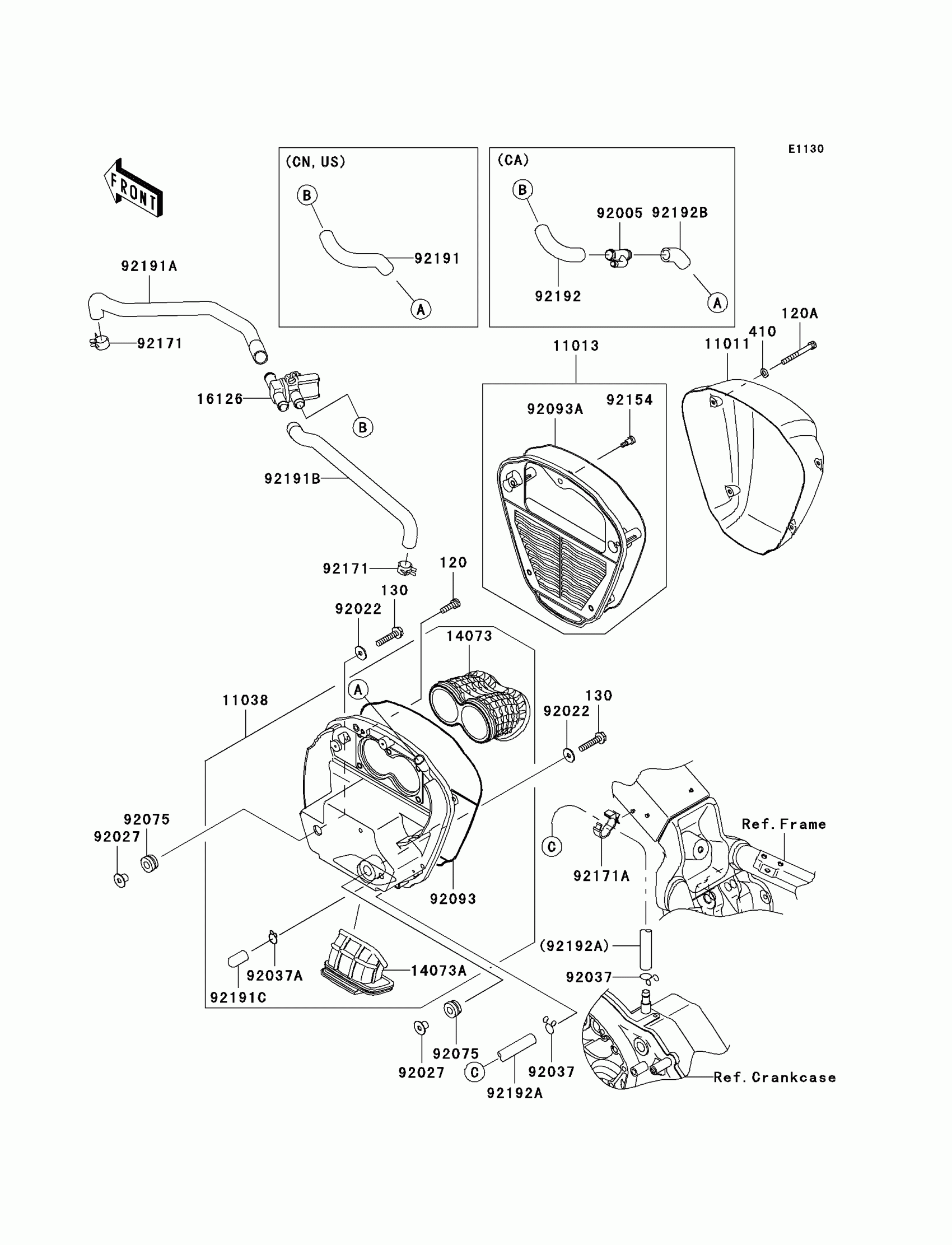

2000 Kawasaki Vulcan AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X45

120R0545

1
Out of stock

120A

BOLT-SOCKET,6X18

120W0618

1
Out of stock

130

BOLT-FLANGED,6X30

130H0630

1
Out of stock

410

W-PLAIN-S,5MM

410S0500

1
Out of stock

11011

CASE-AIR FILTER

11011-0067

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0002

1
Out of stock

11038

CASE-ASSY-AIR FILTER

11038-0003

1
Out of stock

14073

DUCT,INTAKE

14073-0007

1
Out of stock

14073A

DUCT,THROTTLE

14073-0008

1

$32.59

In stock

14073B

DUCT,INTAKE

14073-0047

1

$18.03

In stock

16126

VALVE,AIR SWITCHING

16126-1437

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,L=12

92027-1062

1
Out of stock

92037

CLAMP

92037-1468

1
Out of stock

92037A

CLAMP,14.5MM

92037-1900

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92093

SEAL

92093-0004

1
Out of stock

92093A

SEAL

92093-0005

1
Out of stock

92171

CLAMP

92171-0332

1

$1.98

In stock

92171A

CLAMP,DIA=15

92171-1424

1
Out of stock

92172

SCREW,5X16.5

92172-0091

1
Out of stock

92191A

TUBE,ACV-FR HEAD

92191-0012

1
Out of stock

92191B

TUBE,ACV-RR HEAD

92191-0013

1
Out of stock

92191C

TUBE

92191-1704

1
Out of stock

92192B

TUBE,9X15X800

92192-0135

1
Out of stock

92005

FITTING

92005-0006

1
Out of stock

92191

TUBE,AIR CLEANER-ACV

92191-0011

1
Out of stock

92192

TUBE,AIR CLEANER-FITTING

92192-0016

1
Out of stock

92192A

TUBE,FITTING-ACV

92192-0017

1
Out of stock
