2000 Kawasaki Vulcan® Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2000 Kawasaki Vulcan®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

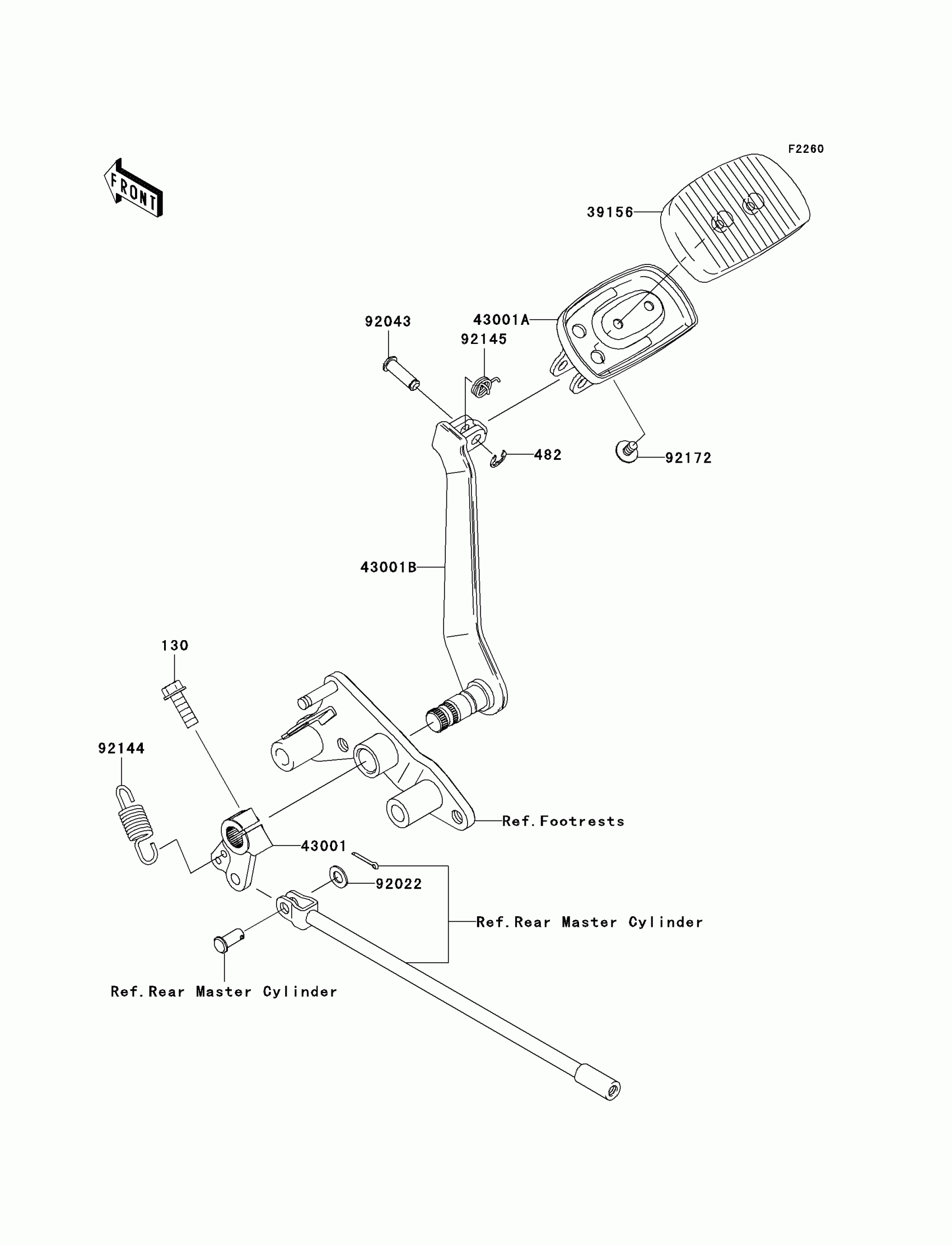

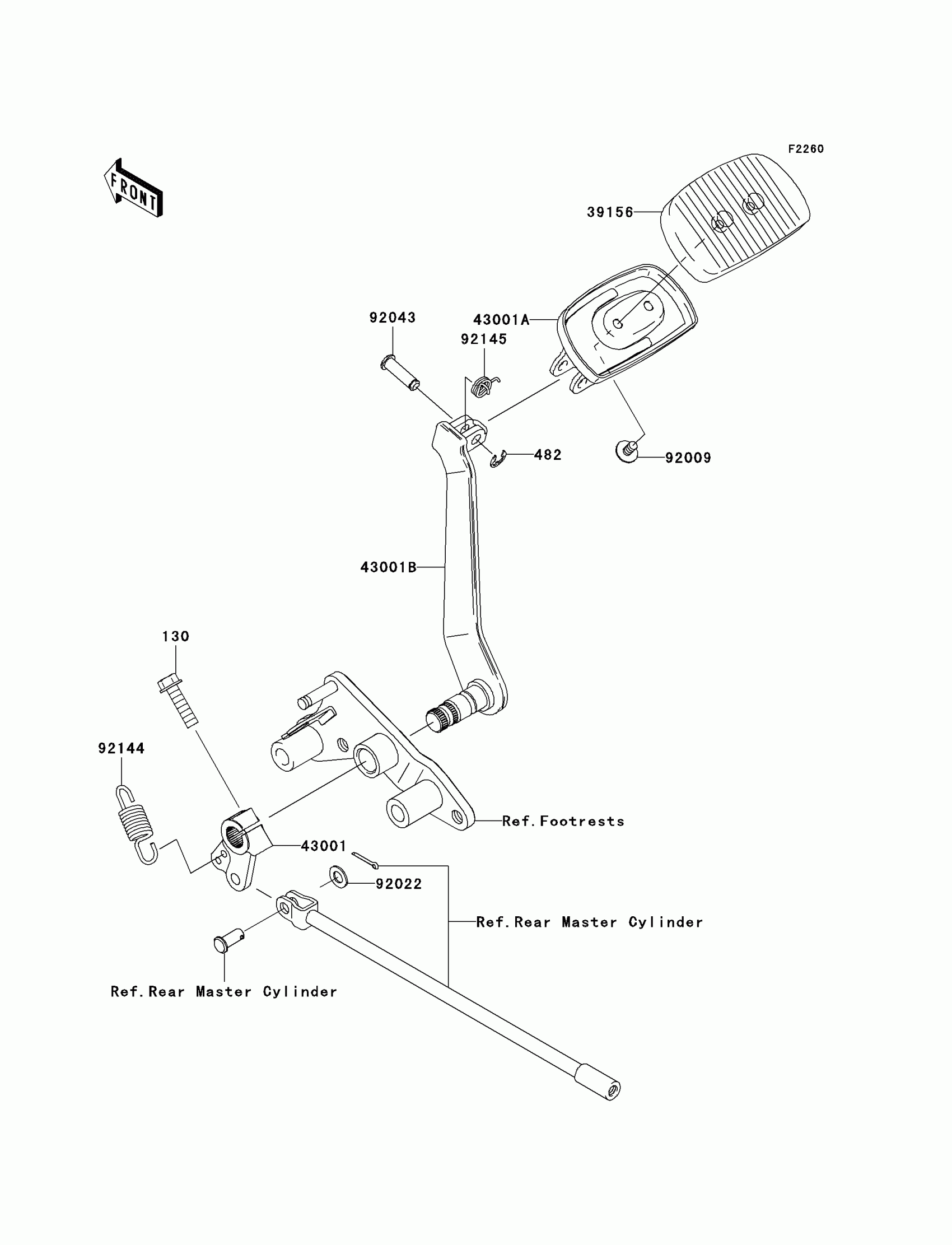

2000 Kawasaki Vulcan® Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X30

130BB0830

1

$3.56

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

39156

PAD,BRAKE PEDAL

39156-0045

1

$39.05

In stock

43001

LEVER-BRAKE

43001-0022

1
Out of stock

43001A

LEVER-BRAKE

43001-0023

1
Out of stock

43001B

LEVER-BRAKE,PADAL

43001-0031

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92043

PIN,8X24.5

92043-0047

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

1
Out of stock

92145

SPRING

92145-0168

1
Out of stock

92172

SCREW,6X10

92172-0098

1
Out of stock
