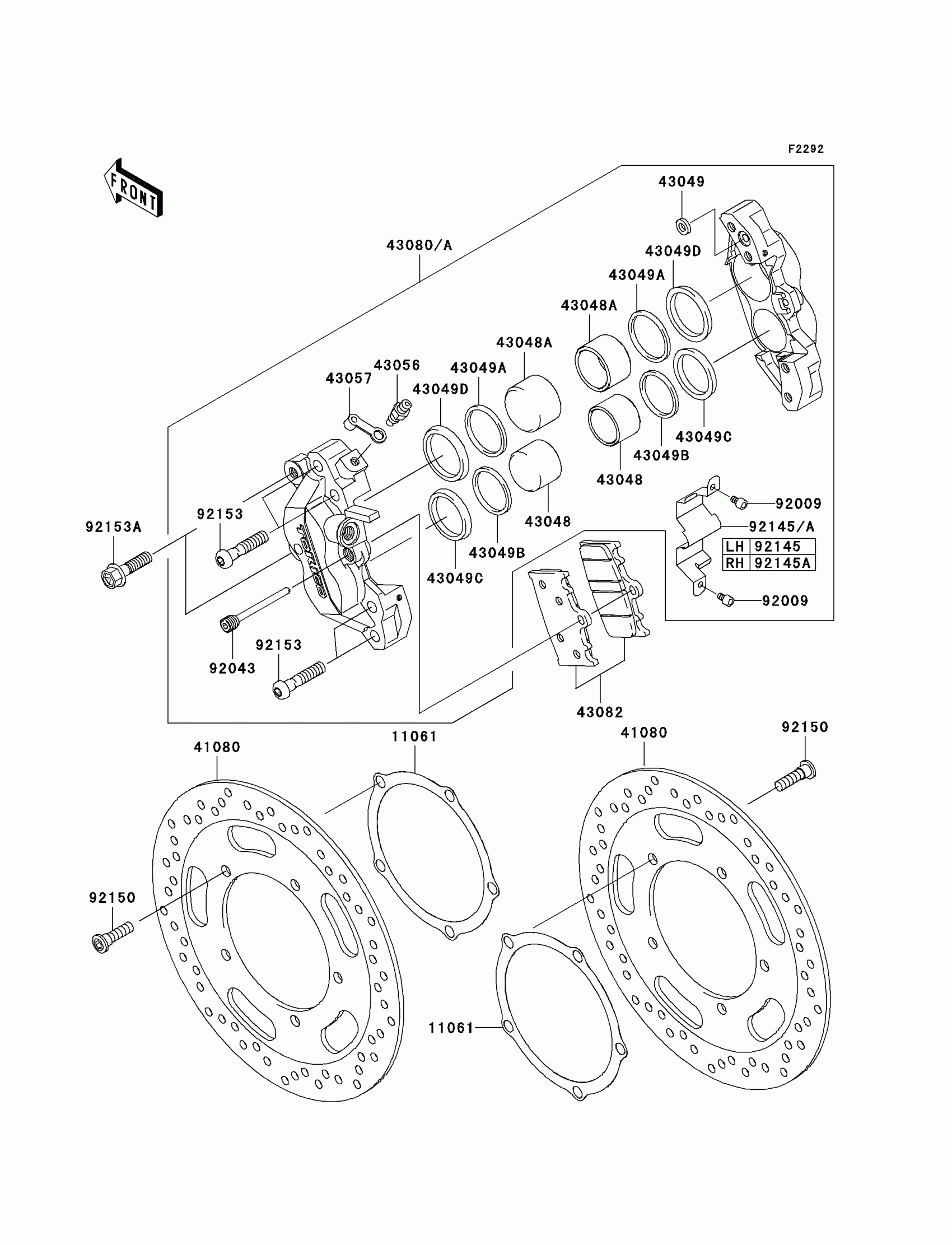

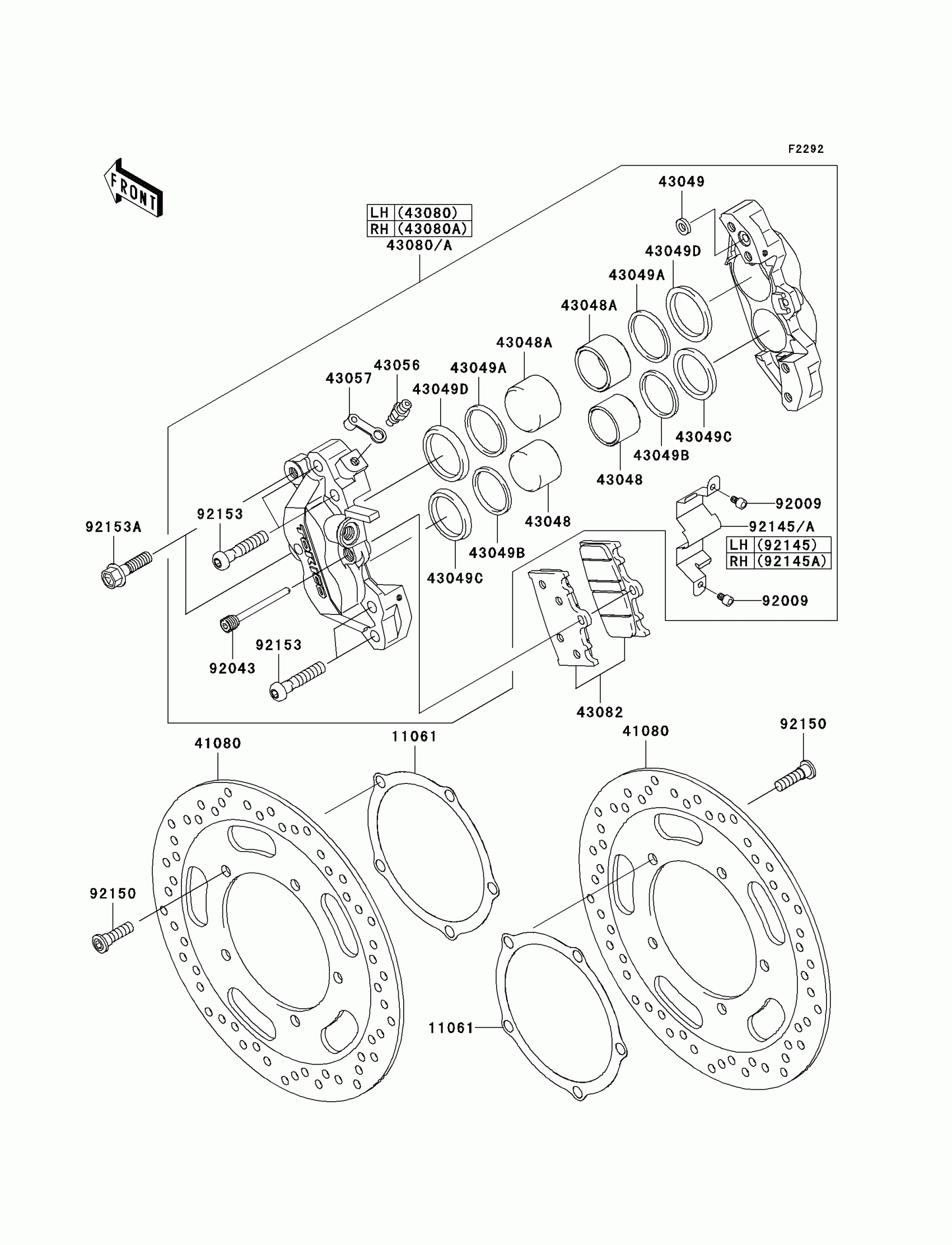

Kawasaki Vulcan 2000 Front Brake Diagram

#

Description
Price

11061

GASKET,DISC PLATE

11061-0103

$24.24

41080

DISC,FR,SILVER

41080-1530-CM

$461.72

43048

PISTON-CALIPER,DIA=30.2

43048-1098

$33.98

43048A

PISTON-CALIPER,DIA=33.934

43048-1099

$42.35

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43049A

PACKING,PISTON

43049-1057

$9.61

43049B

PACKING

43049-1068

$7.48

43049C

PACKING,PISTON SEAL

43049-1092

$7.91

43049D

PACKING,PISTON SEAL

43049-1095

$9.96

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-0009-GN

$425.56

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-0010-GN

$446.03

43082

PAD-ASSY-BRAKE

43082-0016

$68.47

92009

BOLT,SOCKET,4X6

92009-1758

$1.96

92043

PIN,PAD

92043-1683

$3.75

92145

SPRING,COVER,LH

92145-1503

$28.82

92145A

SPRING,COVER,RH

92145-1504

$28.82

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92153

BOLT,SOCKET,8X40

92153-0360

$4.20

92153A

BOLT,FLANGED,8X30

92153-1089

$1.73
