2000 Kawasaki Vulcan Rear Master Cylinder Diagram

← All diagrams

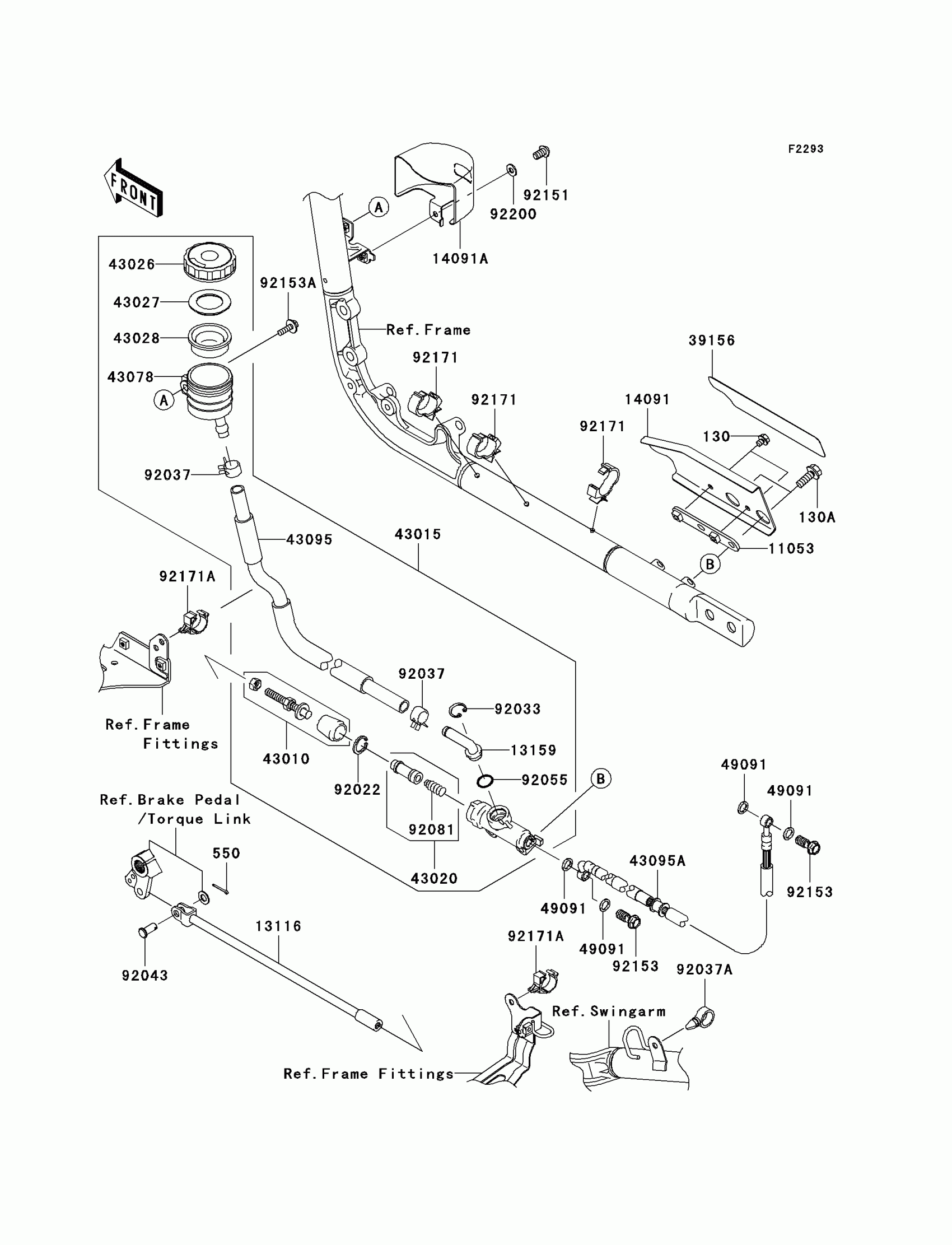

Find the part on the Rear Master Cylinder diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130L0610

1
Out of stock

130A

BOLT-FLANGED,8X30

130L0830

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

11053

1

$9.19

In stock

13116

ROD-PUSH

13116-0011

1
Out of stock

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

1
Out of stock

14091

COVER,REAR MASTER HEAT GUARD

14091-0273

1
Out of stock

14091A

COVER,RESERVOIR TANK

14091-0352

1
Out of stock

39156

1

$8.59

In stock

43010

ROD-ASSY-BRAKE

43010-0004

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0042

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-1051

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

1
Out of stock

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0039

1
Out of stock

43095A

HOSE-BRAKE,RR

43095-0169

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP,BRAKE HOSE

92037-1547

1
Out of stock

92037A

CLAMP,HOSE

92037-1827

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92151

BOLT,SOCKET,6X12

92151-1940

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,FLANGED,6X20

92153-0673

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0081

1

$3.75

In stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock
