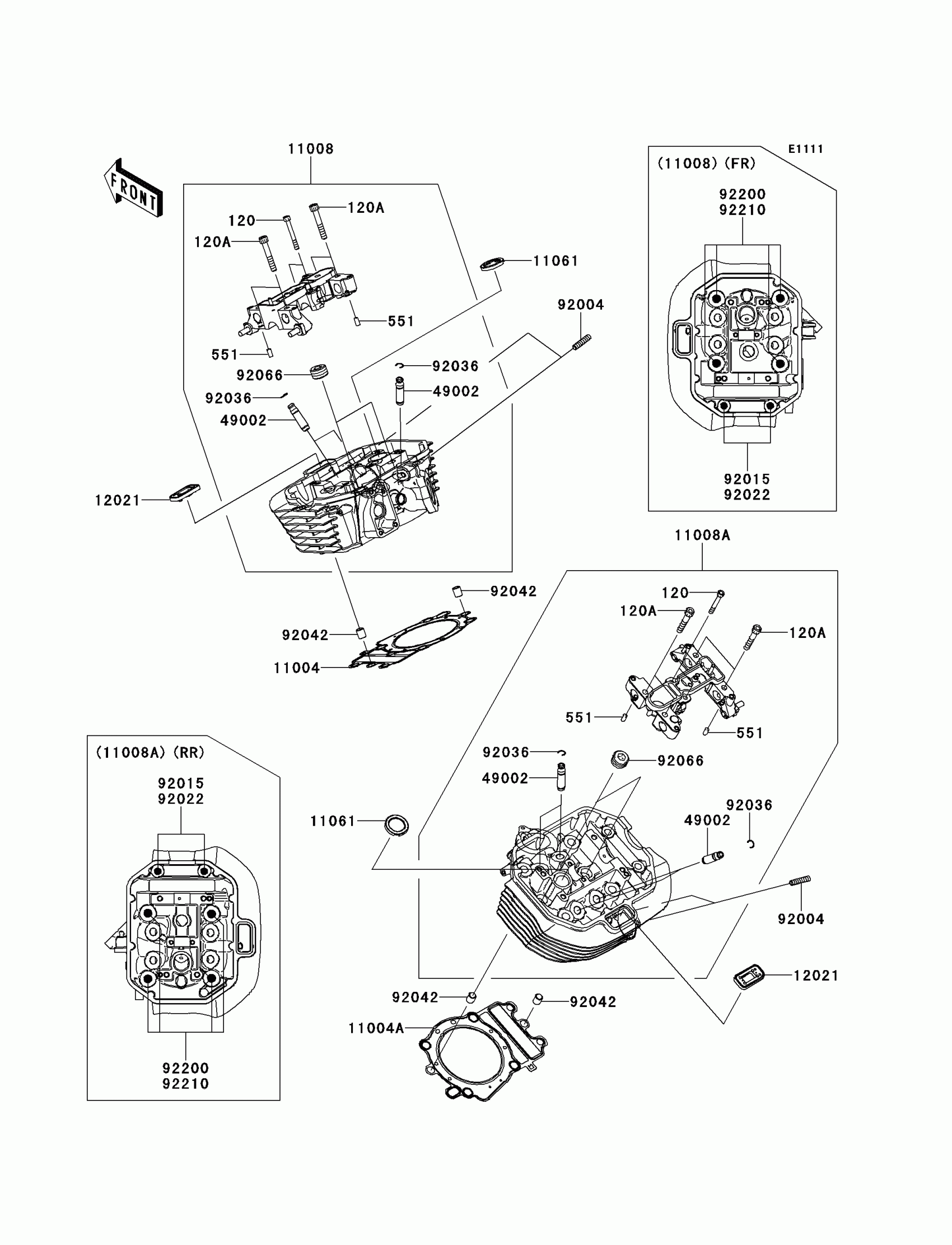

Kawasaki VULCAN® 1700 VOYAGER® Cylinder Head Diagram

Description

Price

120

BOLT-SOCKET,6X50

120Q0650

$2.64

120A

BOLT-SOCKET,8X50

120Q0850

$2.64

551

PIN-DOWEL,6X12

551A0612

$0.78

11004

GASKET-HEAD,FR

11004-0076

$58.26

11004A

GASKET-HEAD,RR

11004-0077

$50.37

11008

HEAD-COMP-CYLINDER,FR

11008-0178

$1,454.22

11008A

HEAD-COMP-CYLINDER,RR

11008-0179

$1,426.18

11061A

GASKET,PLUG HOLE

11061-0409

$7.64

12021

VALVE-ASSY-REED

12021-0017

$76.29

49002

GUIDE-VALVE

49002-0008

Unavailable

92004

STUD,8X20

92004-0046

$2.24

92015

NUT,FLANGED,10MM

92015-077

$3.57

92022

WASHER,10.2X20X1.5

92022-3742

$3.19

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92042

PIN,DOWEL,12X14

92042-031

$4.93

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92200

WASHER,12.3X25X3.2

92200-0422

$3.97

92210

NUT,12MM

92210-0546

$4.85
