2012 Kawasaki Vulcan® 1700 Voyager® Cooling Diagram

← All diagrams

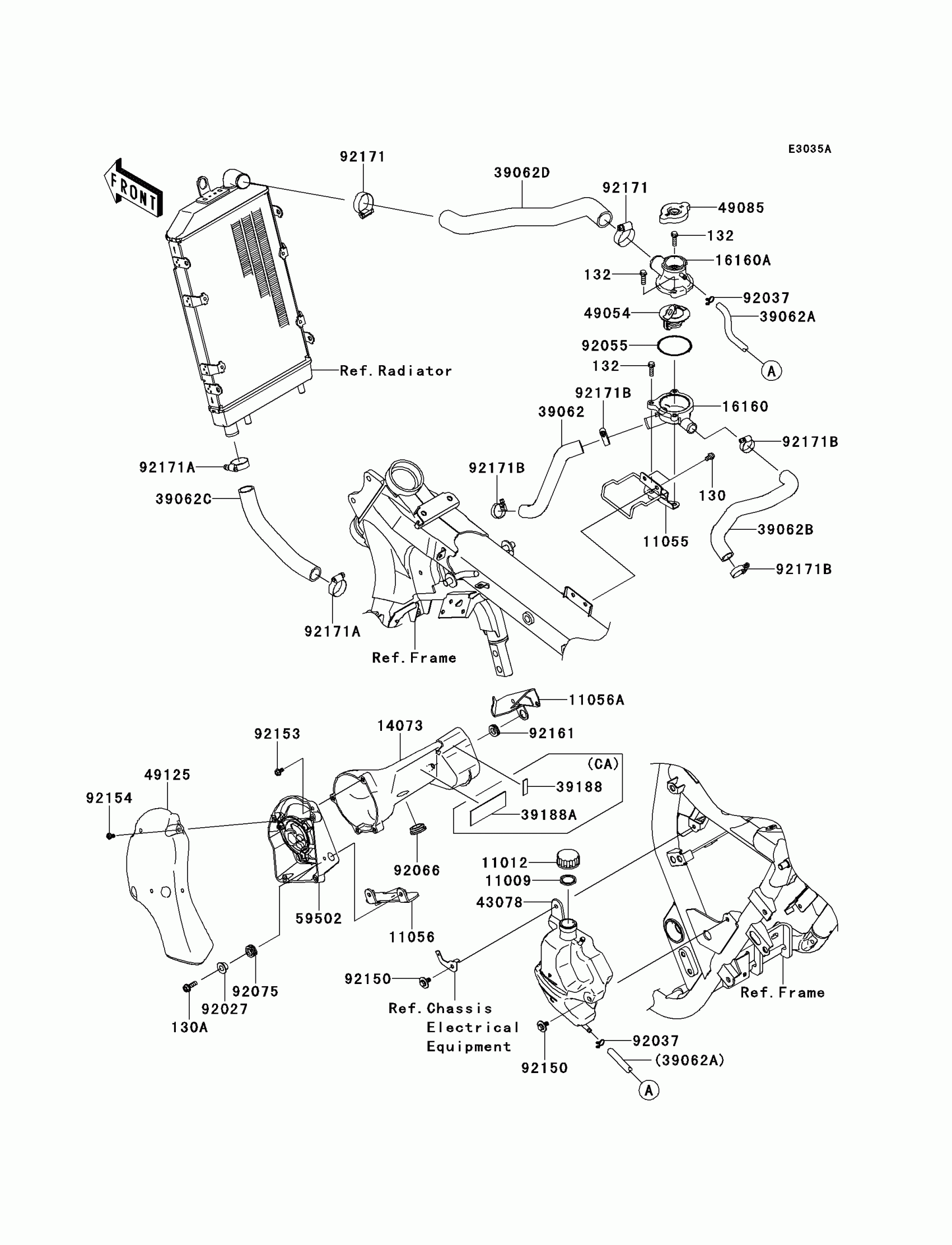

Find the part on the Cooling diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Cooling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X20

130BA0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132BA0620

1
Out of stock

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

11055

BRACKET,THERMOCASE

11055-0571

1
Out of stock

11056

BRACKET

11056-1471

1
Out of stock

11056A

BRACKET

11056-1472

1
Out of stock

14073

DUCT

14073-0739

1
Out of stock

16160

BODY,LWR

16160-0158

1
Out of stock

16160A

BODY,UPP

16160-1152

1
Out of stock

39062

HOSE-COOLING,FR HEAD-THERMO

39062-0245

1
Out of stock

39062A

HOSE-COOLING

39062-0291

1
Out of stock

39062B

HOSE-COOLING,RR HEAD-THERMO

39062-0315

1
Out of stock

39062C

HOSE-COOLING,RAD-W/P IN PIPE

39062-0600

1
Out of stock

39062D

HOSE-COOLING,THERMO-RAD

39062-0601

1
Out of stock

43078

RESERVOIR

43078-0067

1
Out of stock

49054

THERMOSTAT

49054-0004

1
Out of stock

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

1
Out of stock

49125

SHROUD

49125-0565

1
Out of stock

59502

FAN-ASSY

59502-0563

1
Out of stock

92027

COLLAR

92027-1045

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92066

PLUG

92066-1389

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

1
Out of stock

92153

BOLT,FLANGED,5X10

92153-1881

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-0211

1
Out of stock

92161

DAMPER

92161-1451

1
Out of stock

92171

CLAMP

92171-0179

1
Out of stock

92171A

CLAMP

92171-0261

1
Out of stock

92171B

CLAMP

92171-0338

1
Out of stock

39188

TAPE,10X30

39188-0555

1
Out of stock

39188A

TAPE,80X85

39188-0557

1
Out of stock
