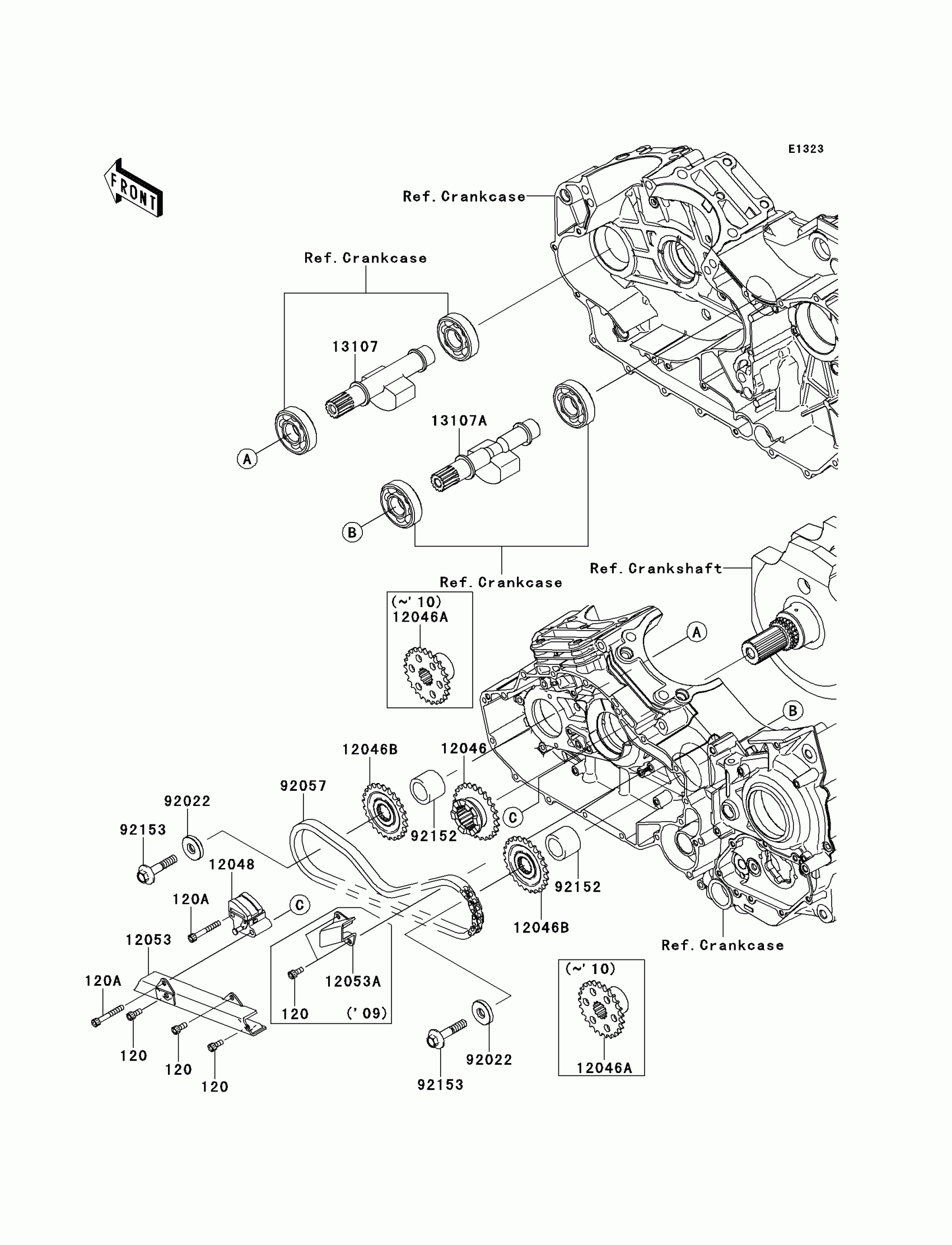

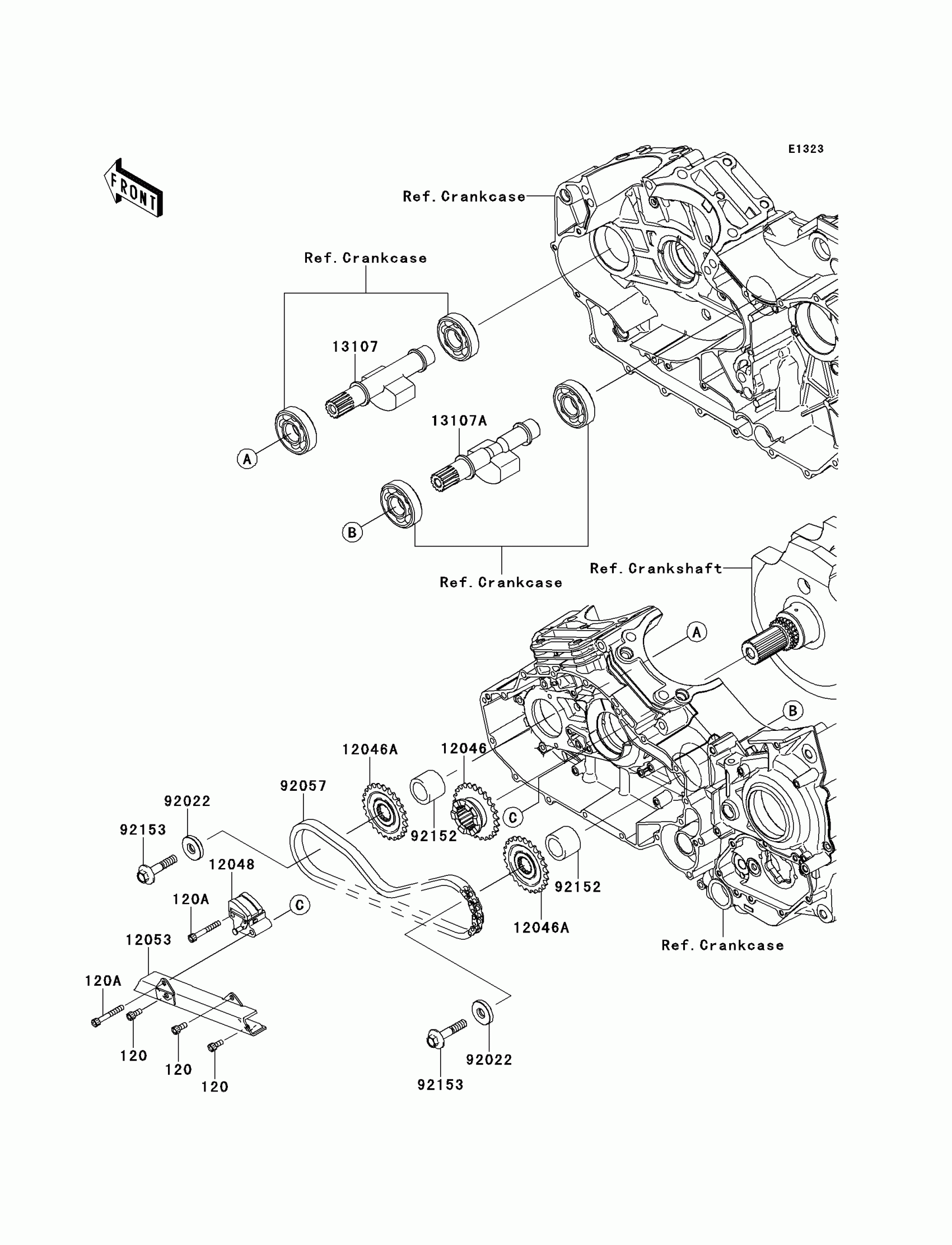

Kawasaki VULCAN® 1700 VOYAGER® Balancer Diagram

Description

Price

120

BOLT-SOCKET,6X14

120CA0614

$3.68

120A

BOLT-SOCKET,6X45

120CA0645

$1.73

12046

SPROCKET,CRANK,25T

12046-0066

$97.67

12046B

SPROCKET,BALANCER,25T

12046-0087

$66.31

12048

TENSIONER-ASSY

12048-0005

$182.47

12053

GUIDE-CHAIN,LONG

12053-0003

$77.72

13107

SHAFT,BALANCER,FR

13107-0185

$335.13

13107A

SHAFT,BALANCER,RR

13107-0211

$335.13

92022

WASHER,10X33X6

92022-1906

$13.51

92057

CHAIN,DID 06FS-SDH

92057-0152

$88.70

92152

COLLAR

92152-0840

$20.97

92153

BOLT,10X50

92153-0317

$7.80
