2012 Kawasaki Vulcan® 1700 Voyager® Crankcase Bolt Pattern Diagram

← All diagrams

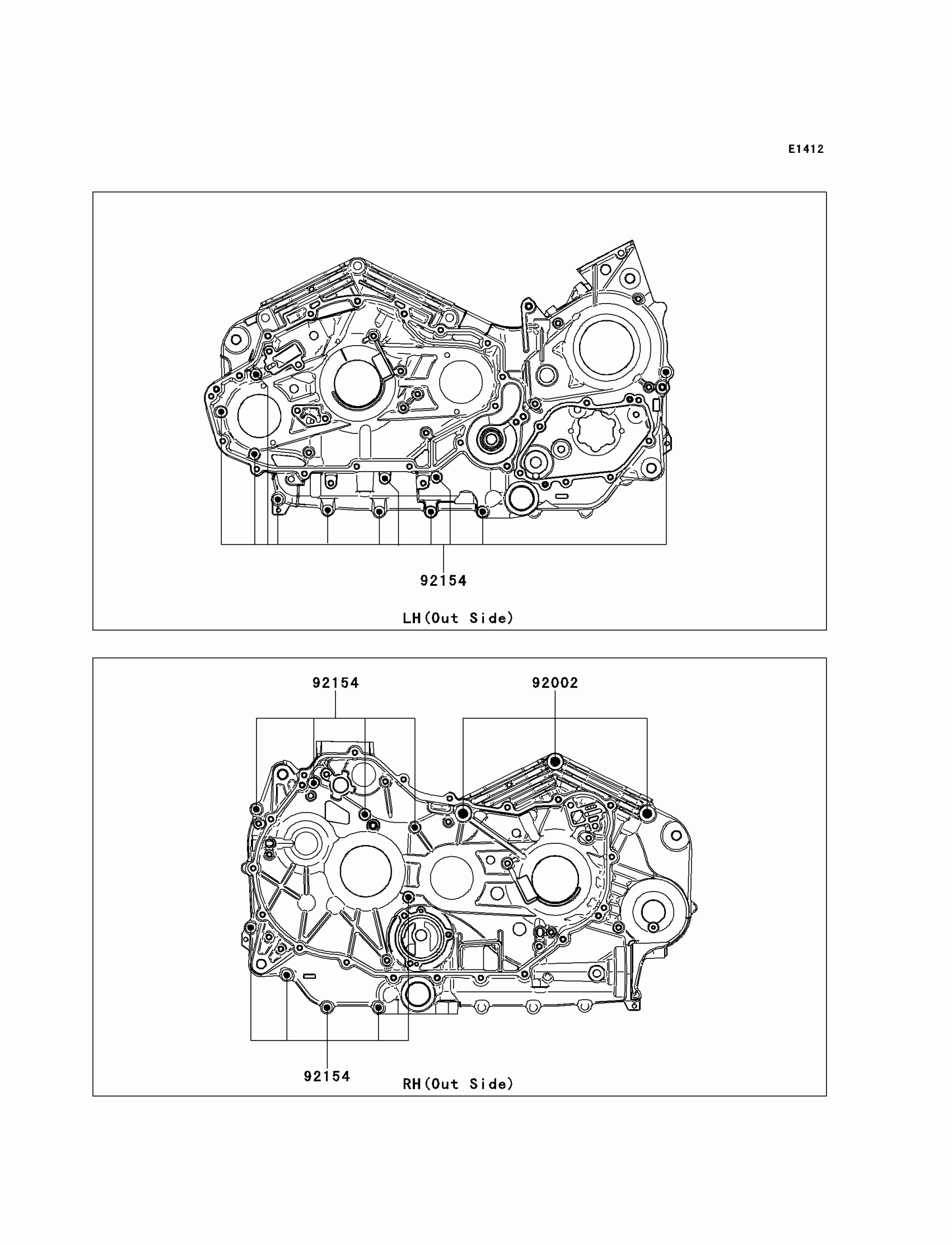

Find the part on the Crankcase Bolt Pattern diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,FLANGED,10X190

92002-1548

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X90

92154-0132

1
Out of stock
← Crankcase Crankshaft →

More Engine diagrams
