2017 Kawasaki Vulcan 1700 Voyager ABS Radiator Diagram

← All diagrams

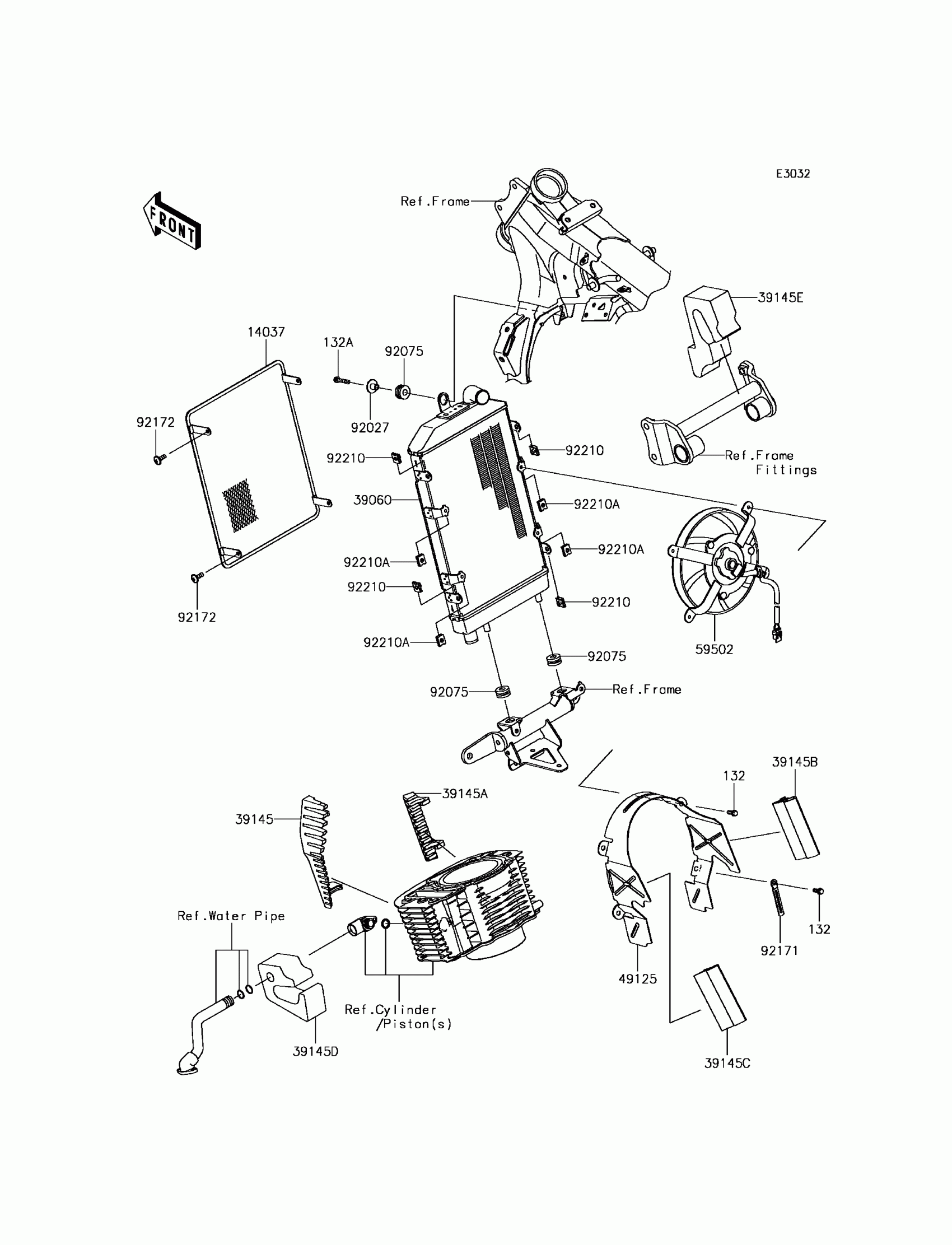

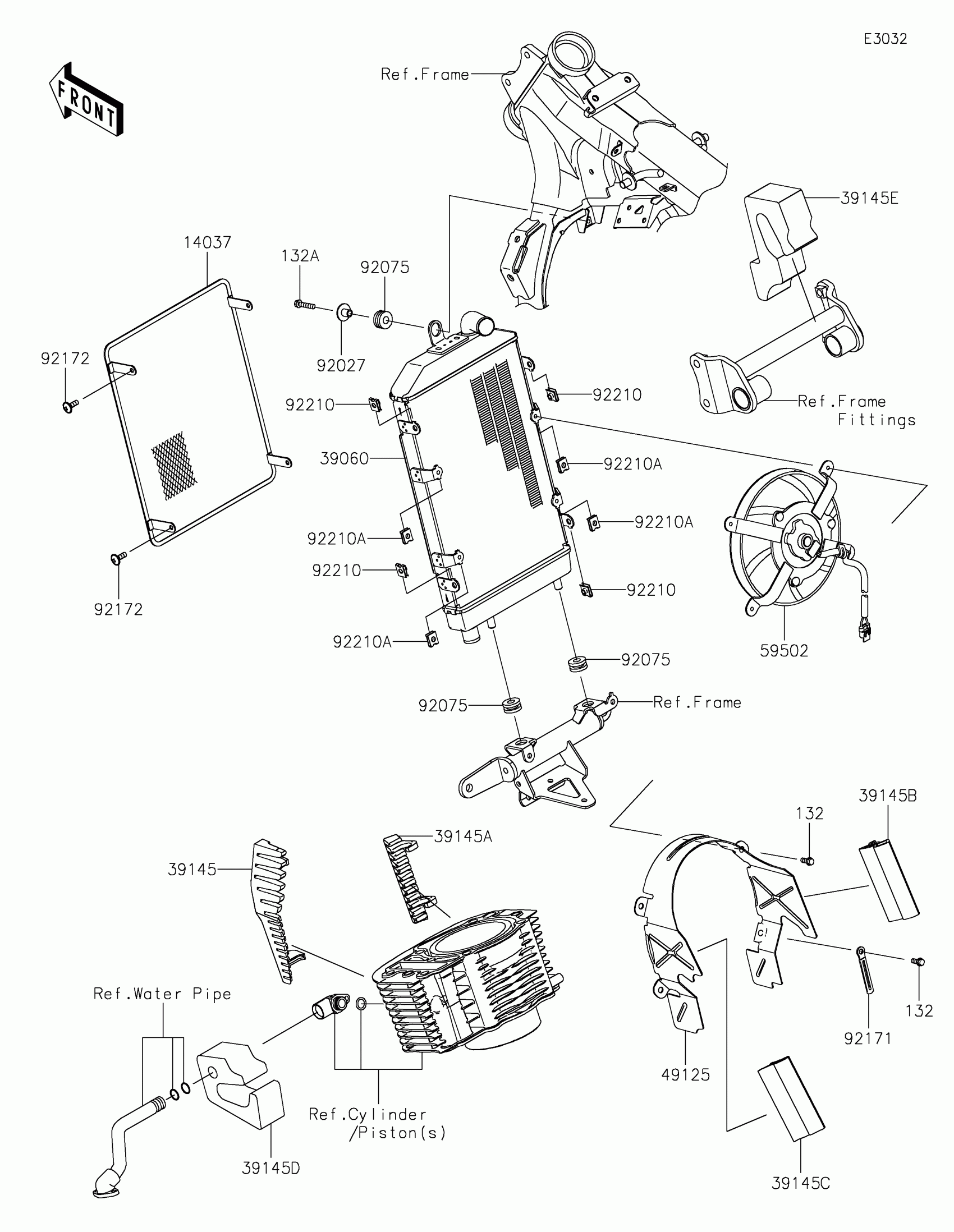

Find the part on the Radiator diagram for your 2017 Kawasaki Vulcan 1700 Voyager ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki Vulcan 1700 Voyager ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X14

132BB0614

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132BB0620

1
Out of stock

14037

SCREEN,INNER

14037-0014

1
Out of stock

39060

RADIATOR

39060-0706

1
Out of stock

39145

TRIM-SEAL,HEAD LH

39145-0704

1
Out of stock

39145A

TRIM-SEAL,HEAD RH

39145-0705

1
Out of stock

39145B

TRIM-SEAL,SHROUD RH

39145-0706

1
Out of stock

39145C

TRIM-SEAL,SHROUD LH

39145-0707

1
Out of stock

39145D

TRIM-SEAL,SHROUD LH,LWR

39145-0708

1
Out of stock

39145E

TRIM-SEAL,SHROUD RH,LWR

39145-0709

1
Out of stock

49125

SHROUD

49125-0567

1
Out of stock

59502

FAN-ASSY

59502-0040

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92171

CLAMP

92171-0791

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92210

NUT

92210-1125

1
Out of stock

92210A

NUT

92210-1323

1
Out of stock
