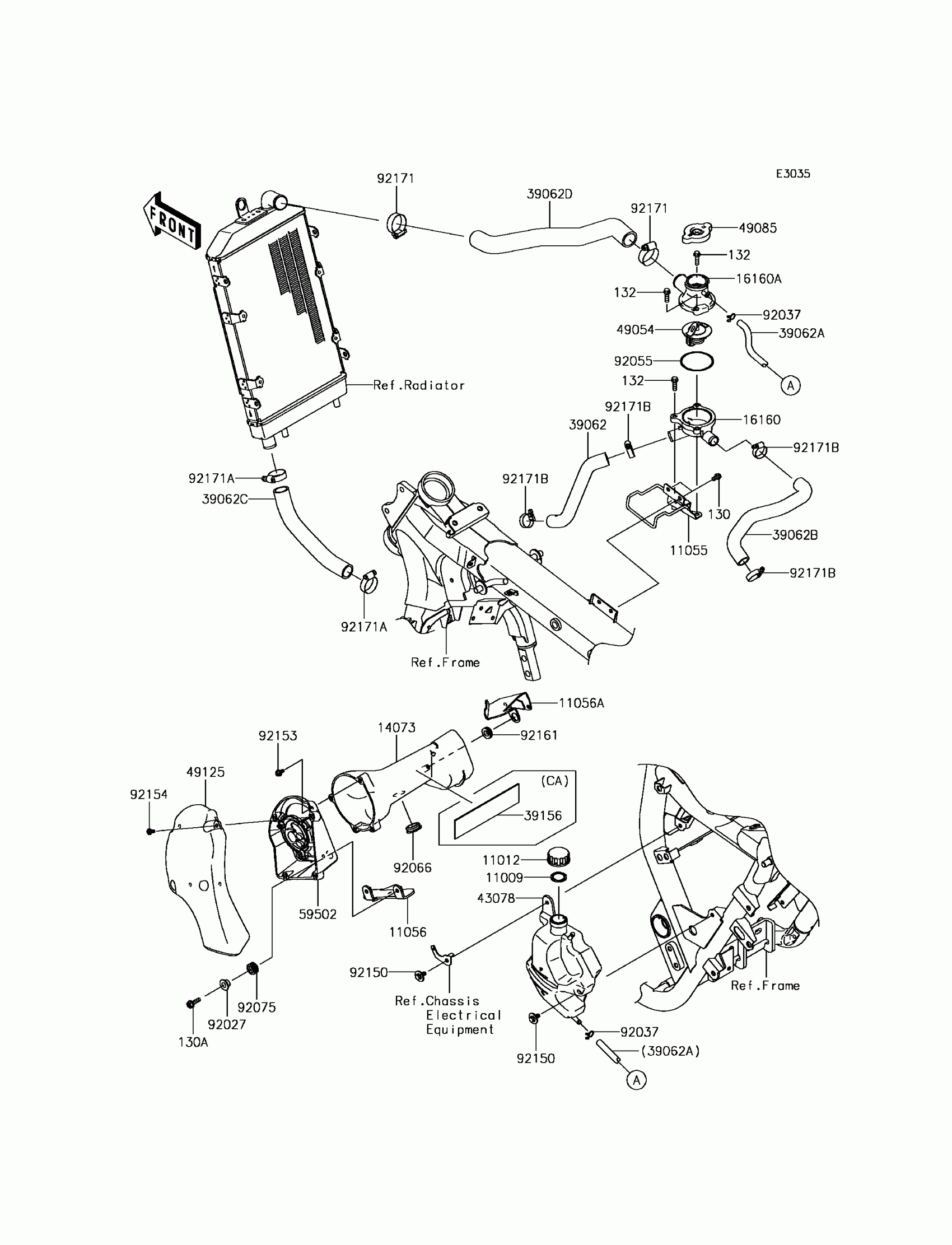

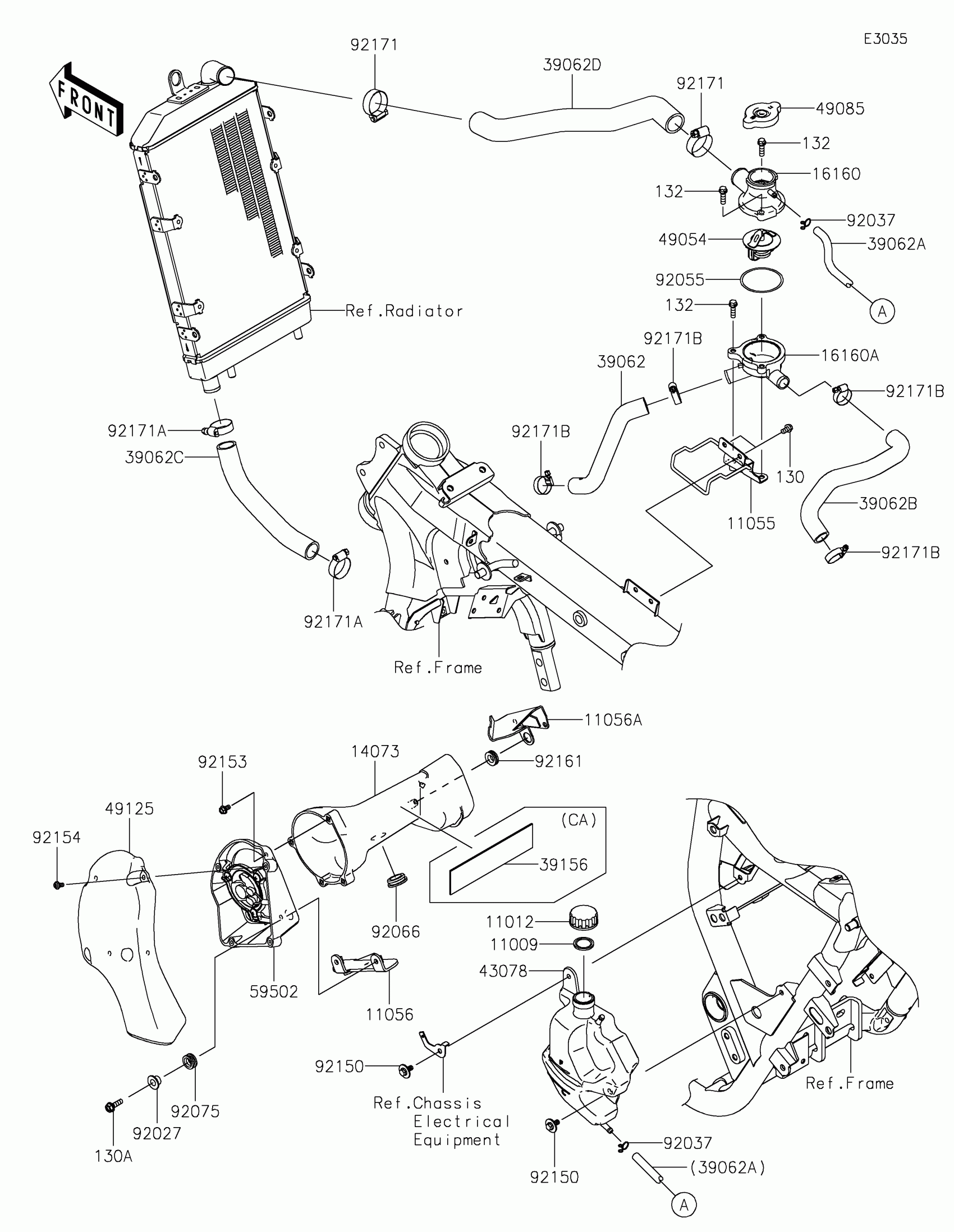

Find the part on the Cooling diagram for your 2017 Kawasaki Vulcan 1700 Voyager ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki Vulcan 1700 Voyager ABS Cooling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

132

1

$2.05

In stock

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11055

BRACKET,THERMOCASE

11055-0571

1

$30.73

In stock

11056

BRACKET

11056-1471

1

$28.95

In stock

11056A

BRACKET

11056-1948

1

$96.19

In stock

14073

DUCT

14073-0739

1

$95.30

In stock

16160

BODY,LWR

16160-0158

1

$61.68

In stock

16160A

BODY,UPP

16160-1152

1

$69.01

In stock

39062

1

$13.90

In stock

39062A

HOSE-COOLING

39062-0291

1

$15.34

In stock

39062B

1

$20.07

In stock

39062C

1

$16.83

In stock

39062D

1

$37.32

In stock

43078

RESERVOIR

43078-0067

1

$44.23

In stock

49054

THERMOSTAT

49054-0004

1

$53.21

In stock

49085

1

$45.73

In stock

49125

SHROUD

49125-0565

1

$47.83

In stock

59502

FAN-ASSY

59502-0563

1

$378.34

In stock

92027

COLLAR

92027-1045

1

$4.37

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,53.5X2.6

92055-0831

1

$6.25

In stock

92066

PLUG

92066-1389

1

$3.39

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92150

1

$3.81

In stock

92153

BOLT,FLANGED,5X10

92153-1881

1

$1.20

In stock

92154

BOLT,SOCKET,5X10

92154-0211

1

$1.78

In stock

92161

DAMPER

92161-1451

1

$7.46

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92171A

CLAMP

92171-0261

1

$13.29

In stock

92171B

CLAMP

92171-0338

1

$6.64

In stock

39156

PAD,160X40X2

39156-0845

1

$8.32

In stock
