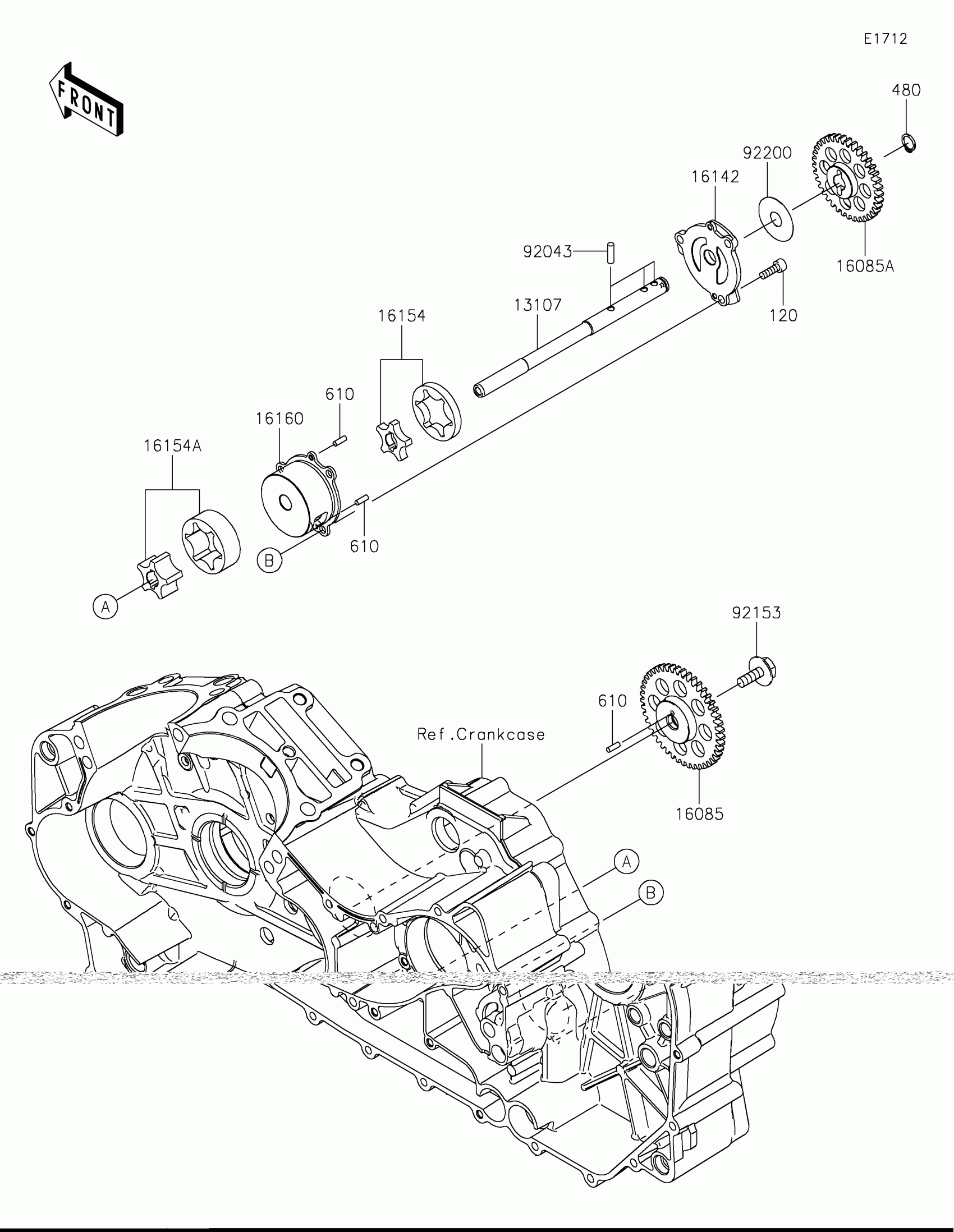

Kawasaki VULCAN® 1700 VOYAGER® ABS Oil Pump Diagram

Description

Price

120

BOLT-SOCKET,6X18

120CA0618

$2.14

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

610

ROLLER,4X12

610A0412

$4.85

13107

SHAFT,OIL PUMP

13107-0212

$58.31

16085

GEAR,DRIVE,45T

16085-0119

$98.06

16085A

GEAR,DRIVEN,37T

16085-0120

$71.22

16142

COVER-PUMP

16142-0055

$49.85

16154

ROTOR-PUMP,FEED

16154-0079

$78.74

16154A

ROTOR-PUMP,SCAVENGE

16154-0085

$78.74

16160

BODY,OIL PUMP

16160-0157

$93.23

92043

PIN,17.9X5.0

92043-1444

$3.85

92153

BOLT,FLANGED,8X23

92153-0549

$8.08

92200

WASHER,13.2X40X0.5

92200-0499

$2.82
