2012 Kawasaki Vulcan® 1700 Voyager® ABS Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2012 Kawasaki Vulcan® 1700 Voyager® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

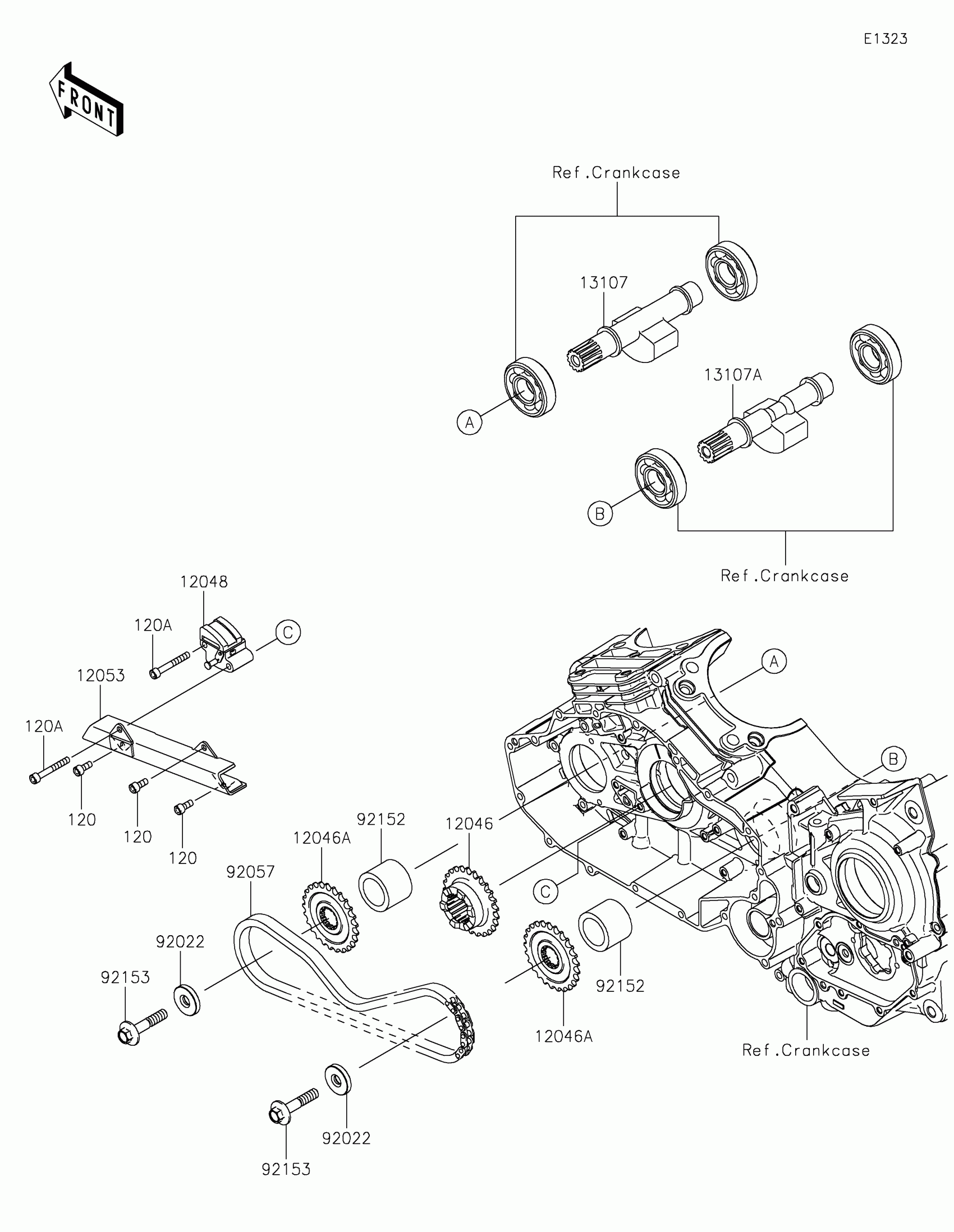

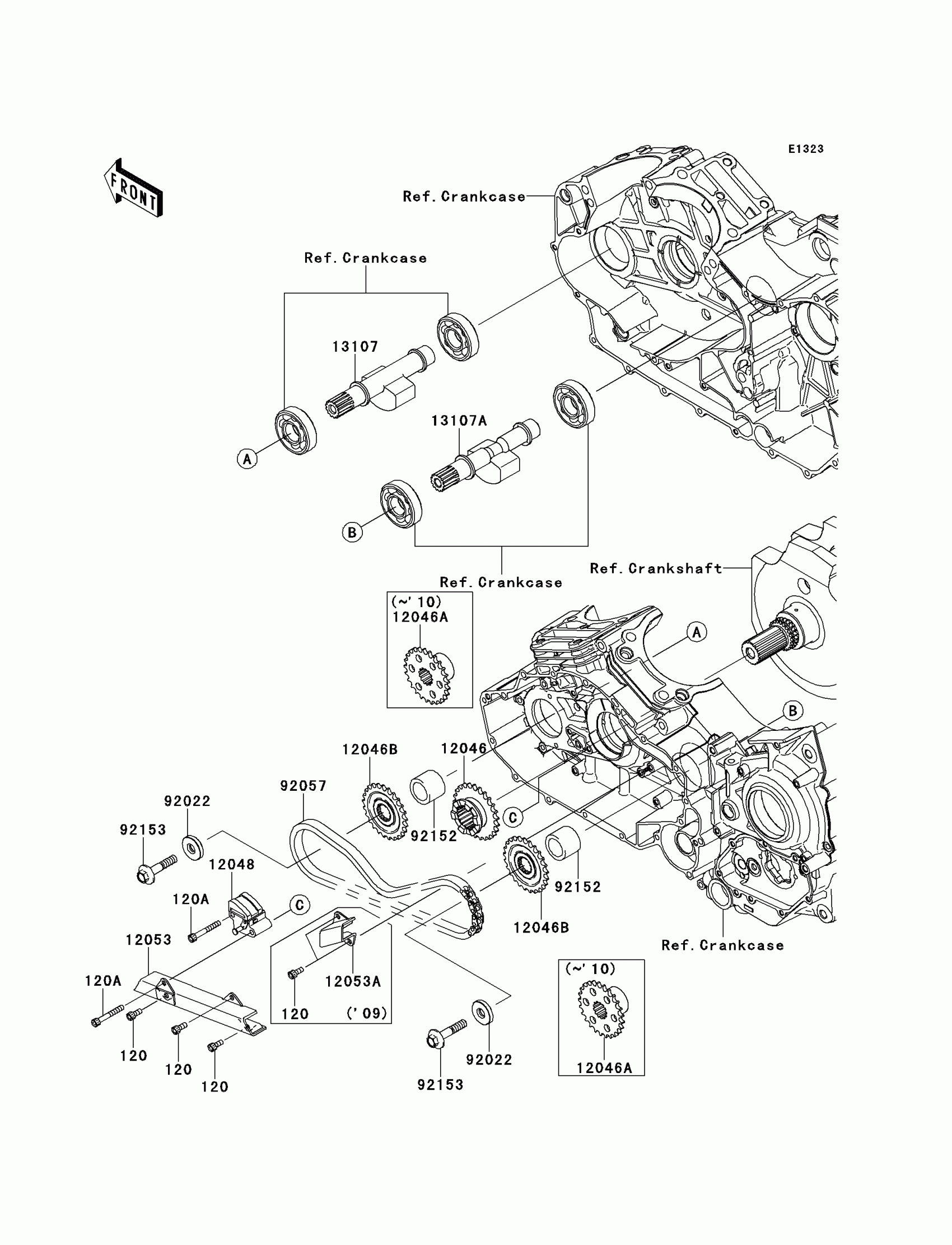

2012 Kawasaki Vulcan® 1700 Voyager® ABS Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X14

120CA0614

1
Out of stock

120A

BOLT-SOCKET,6X45

120CA0645

1
Out of stock

12046

SPROCKET,CRANK,25T

12046-0066

1
Out of stock

12046B

SPROCKET,BALANCER,25T

12046-0087

1
Out of stock

12048

TENSIONER-ASSY

12048-0005

1
Out of stock

12053

GUIDE-CHAIN,LONG

12053-0003

1
Out of stock

13107

SHAFT,BALANCER,FR

13107-0185

1
Out of stock

13107A

SHAFT,BALANCER,RR

13107-0211

1
Out of stock

92022

WASHER,10X33X6

92022-1906

1
Out of stock

92057

CHAIN,DID 06FS-SDH

92057-0152

1
Out of stock

92152

COLLAR

92152-0840

1
Out of stock

92153

BOLT,10X50

92153-0317

1
Out of stock
