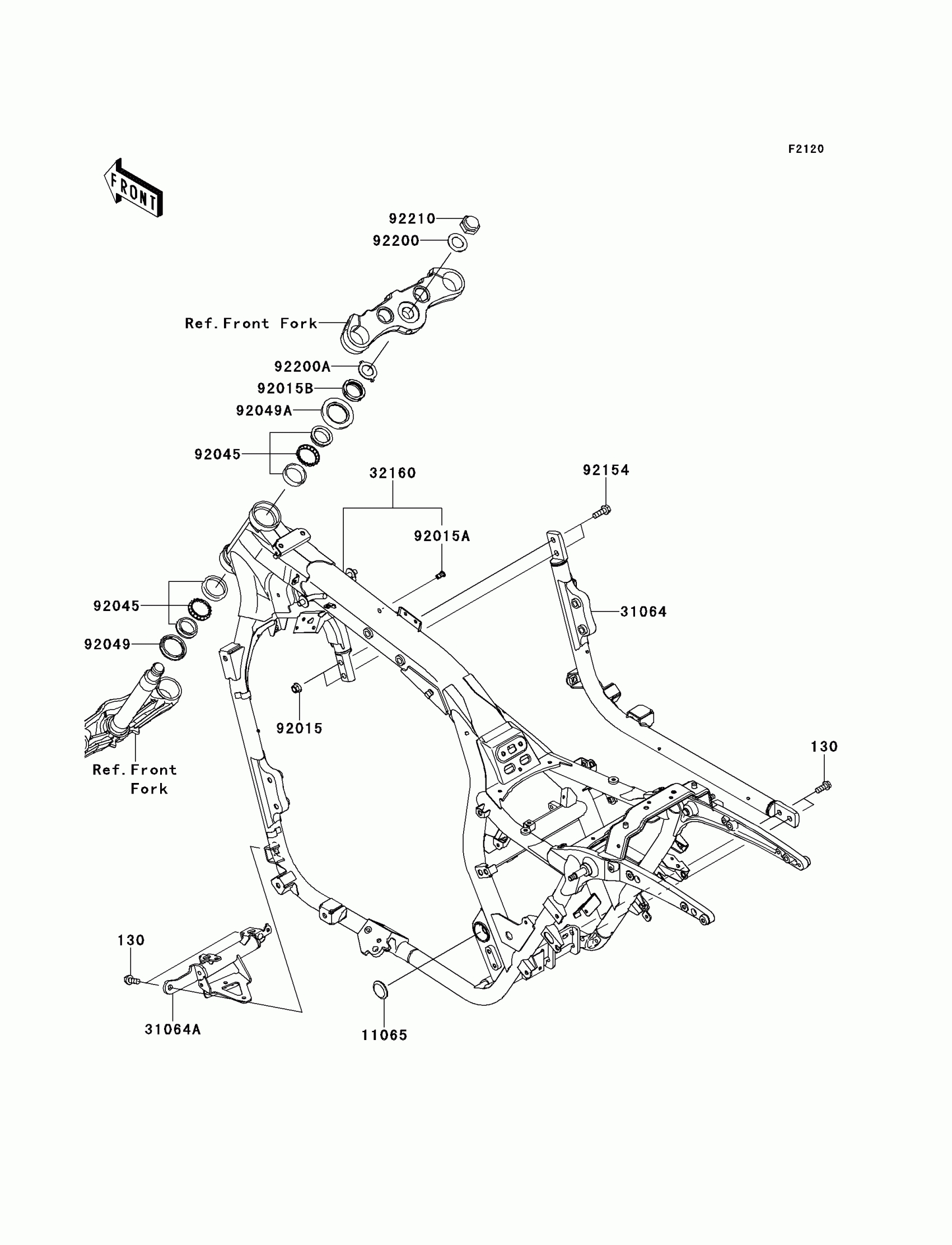

Kawasaki VULCAN® 1700 NOMAD™ ABS Frame Diagram

Description

Price

130

BOLT-FLANGED,10X25

130BB1025

$4.63

11065

CAP

11065-0320

$5.71

31064

PIPE-COMP,DOWNTUBE,RH,BLACK

31064-0209-18R

$547.86

31064A

PIPE-COMP,FRONT CROSS,BLACK

31064-0587-18R

$126.35

32160

FRAME-COMP,F.S.BLACK

32160-0451-18R

$2,732.40

92015

NUT,FLANGED,10MM

92015-1727

$3.29

92015A

NUT,POP,6MM,L=16.5

92015-1792

$3.57

92015B

NUT,STEERING STEM,35MM

92015-1848

$44.93

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

$14.81

92049A

SEAL-OIL,MX043N2

92049-1483

$16.52

92154

BOLT,FLANGED,10X30

92154-0156

$2.59

92200

WASHER,25.5X42X2.3

92200-0105

$4.07

92200A

WASHER,CLAW,25.5X40X2.3

92200-1083

$5.71

92210

NUT,CAP,25MM

92210-1166

$22.58
