2014 Kawasaki Vulcan® 1700 Nomad™ ABS Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

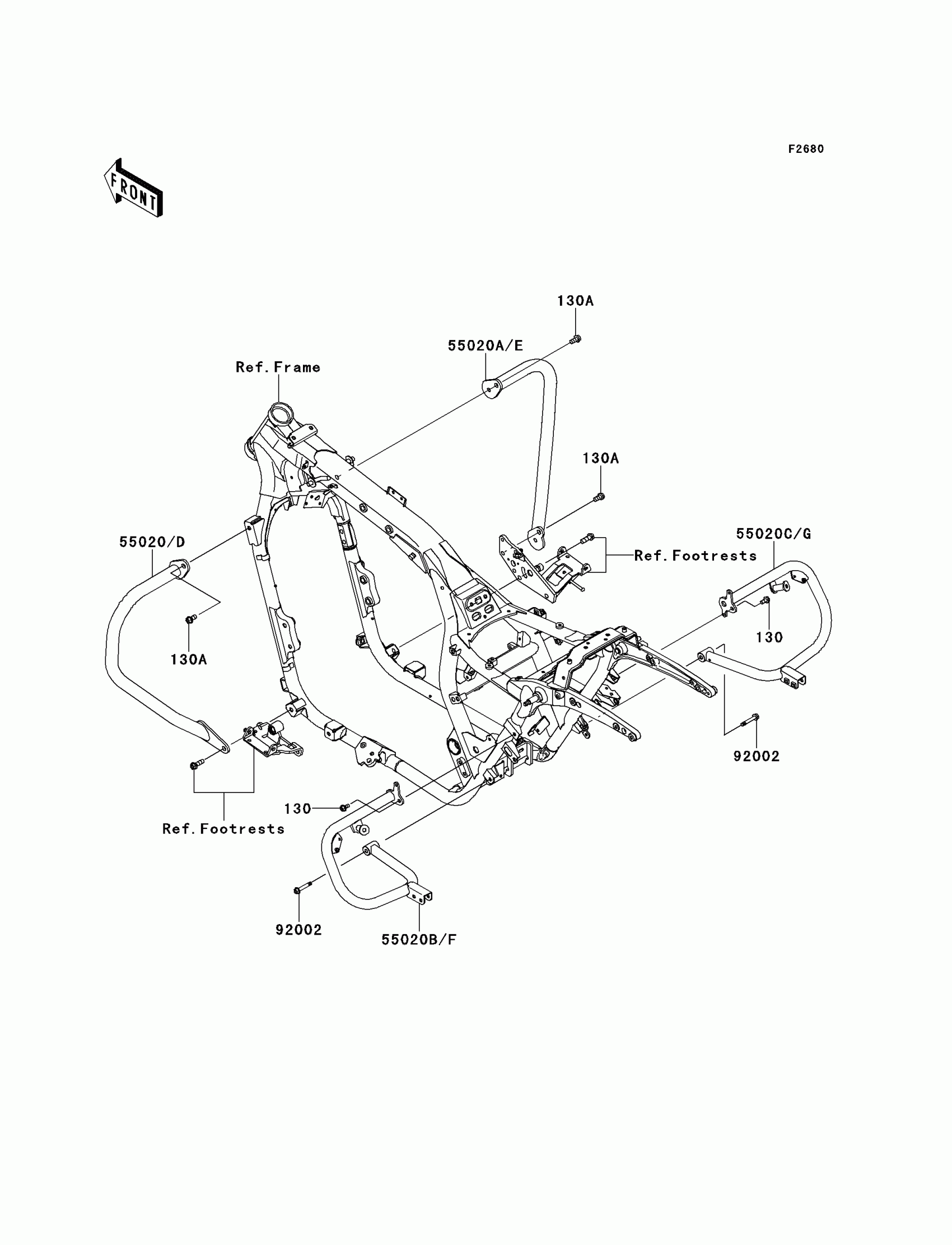

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

130A

BOLT-FLANGED,10X20

130BC1020

1

$3.27

In stock

55020D

GUARD,FR,LH

55020-0946

1

$183.97

In stock

55020E

GUARD,FR,RH

55020-0947

1

$183.97

In stock

55020F

GUARD,RR,LH

55020-0948

1

$204.32

In stock

55020G

GUARD,RR,RH

55020-0949

1

$204.32

In stock

92002

BOLT,FLANGED,8X47

92002-1850

1
Out of stock
