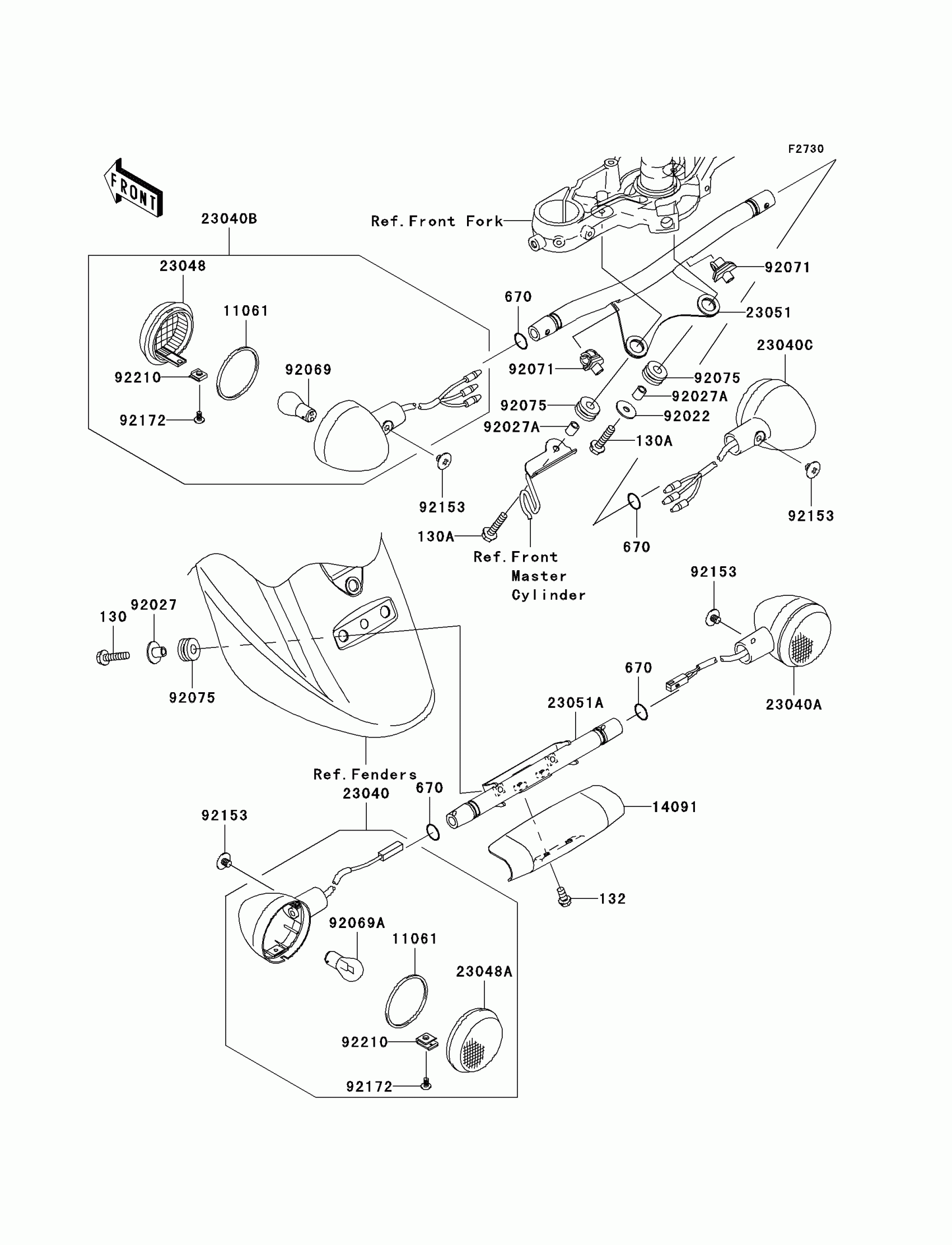

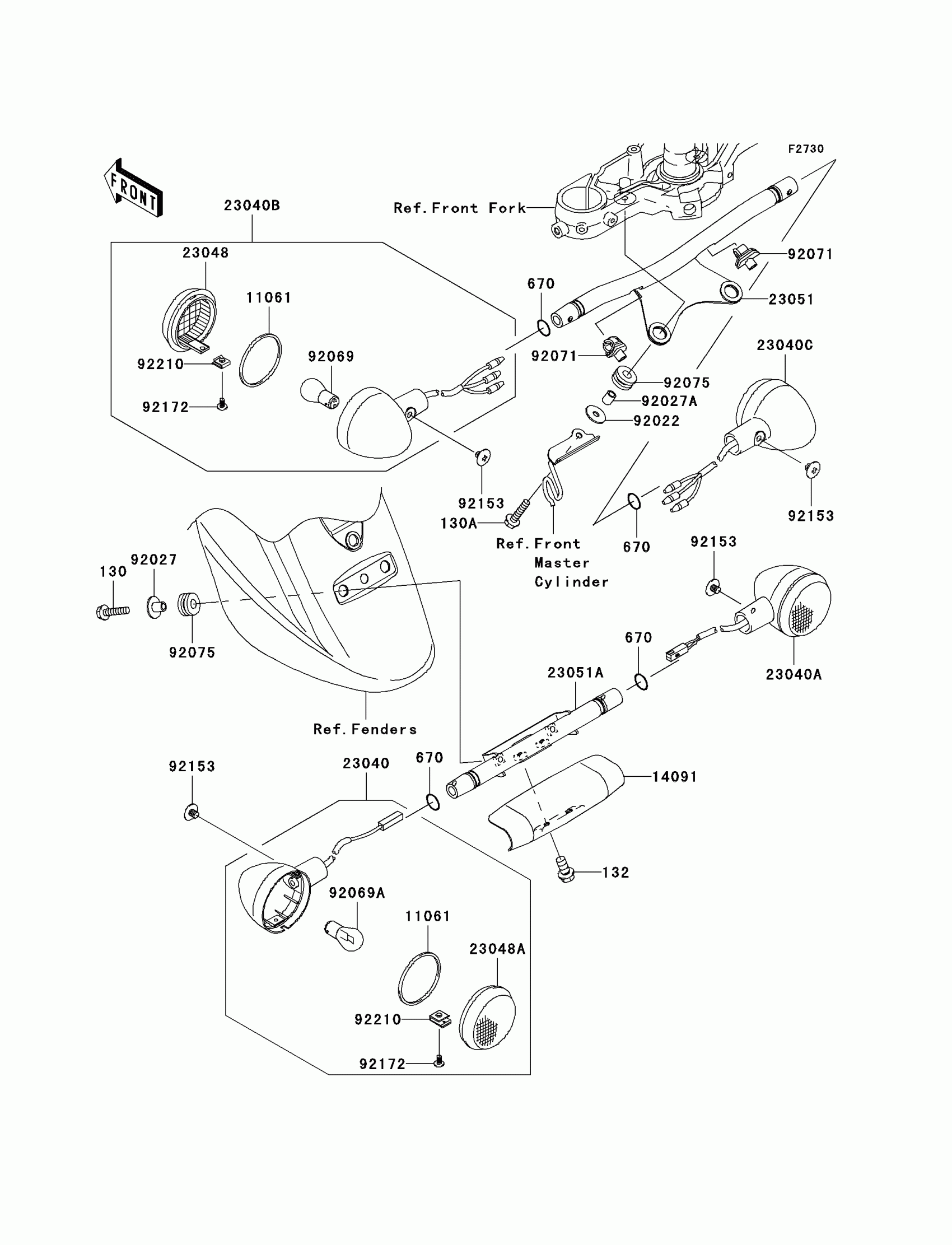

Kawasaki Vulcan 1600 Nomad Turn Signals Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130J0625

Unavailable

130A

BOLT-FLANGED,6X25

130L0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

670

O RING,16MM

670B2016

$1.04

11061

GASKET,SIGNAL LAMP

11061-0005

$5.13

14091

COVER,REAR SIGNAL LAMP

14091-1572

$75.15

23040

LAMP-SIGNAL,RR,LH

23040-0036

$78.41

23040A

LAMP-SIGNAL,RR,RH

23040-0037

$78.41

23040B

LAMP-SIGNAL,FR,LH

23040-0042

$96.54

23040C

LAMP-SIGNAL,FR,RH

23040-0043

$96.54

23048

LENS-SIGNAL LAMP,FR

23048-0001

$8.05

23048A

LENS-SIGNAL LAMP,RR

23048-0002

$8.05

23051

BRACKET-SIGNAL LAMP,FR

23051-0001

$201.08

23051A

BRACKET-SIGNAL LAMP,RR

23051-0002

$187.53

92022

WASHER,7X24X1.6

92022-1160

$2.99

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92027A

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 21/5W

92069-063

$7.09

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,SIGNAL LAMP

92071-0007

$4.85

92075

DAMPER,10X24X12

92075-1690

$3.81

92153

BOLT,6MM

92153-0396

$3.55

92172

SCREW,4X8

92172-0146

$2.37

92210

NUT,4MM

92210-0155

$3.05
