2005 Kawasaki Vulcan 1600 Nomad Ignition System Diagram

← All diagrams

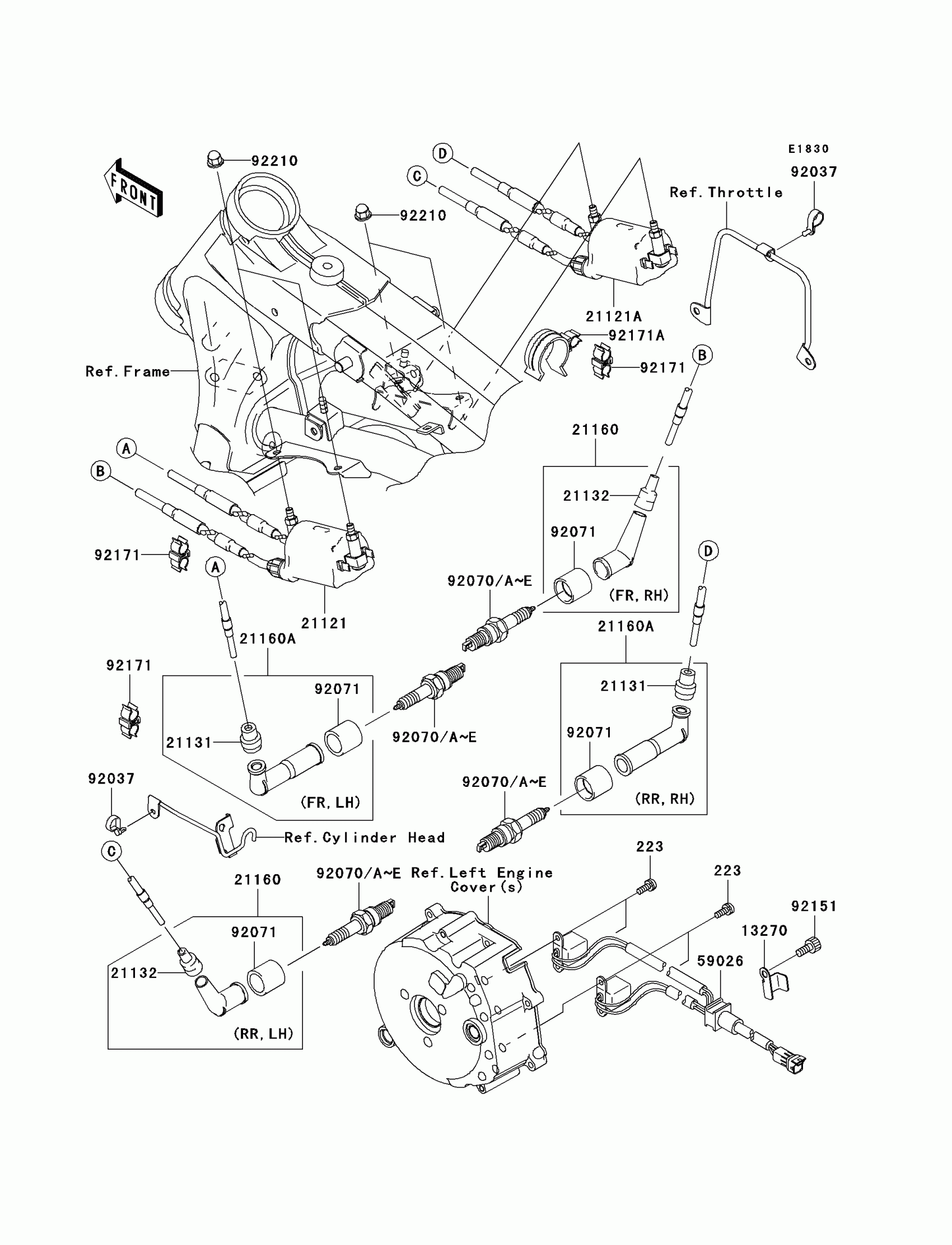

Find the part on the Ignition System diagram for your 2005 Kawasaki Vulcan 1600 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Nomad Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

223

SCREW-PAN-WS-CROS,5X16

223B0516

1
Out of stock

13270

PLATE

13270-1979

1
Out of stock

21121

COIL-IGNITION,FR

21121-0003

1
Out of stock

21121A

COIL-IGNITION,RR

21121-0004

1
Out of stock

21131

1

$4.88

In stock

21132

1

$3.39

In stock

21160

CAP-ASSY-PLUG

21160-0004

1
Out of stock

21160A

CAP-ASSY-PLUG

21160-1091

1

$28.66

In stock

59026

COIL-PULSING

59026-1157

1
Out of stock

92037

CLAMP,SPEED,L=43

92037-1290

1

$7.25

In stock

92070

Not Available As Spare Part - Friction Washer

—
Out of stock

92070A

—

$2.74

In stock

92070B

1

$2.92

In stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92070D

—

$7.39

In stock

92070E

Not Available As Spare Part - Friction Washer

—
Out of stock

92071

GROMMET,PLUG CAP

92071-1184

1

$5.37

In stock

92151

BOLT,6X10

92151-3704

1

$3.49

In stock

92171

CLAMP

92171-0129

1

$3.33

In stock

92171A

CLAMP

92171-0130

1

$5.63

In stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock
